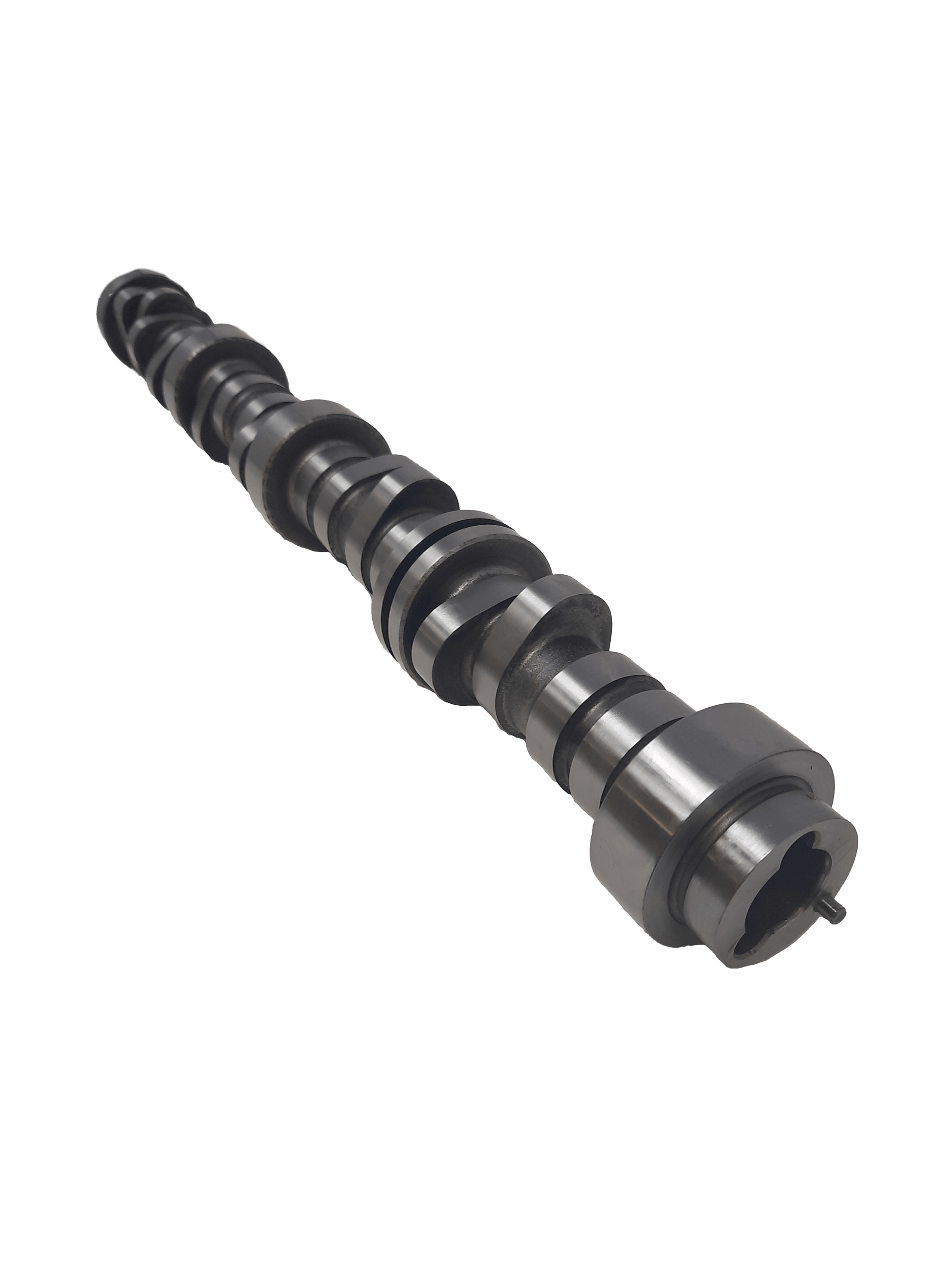

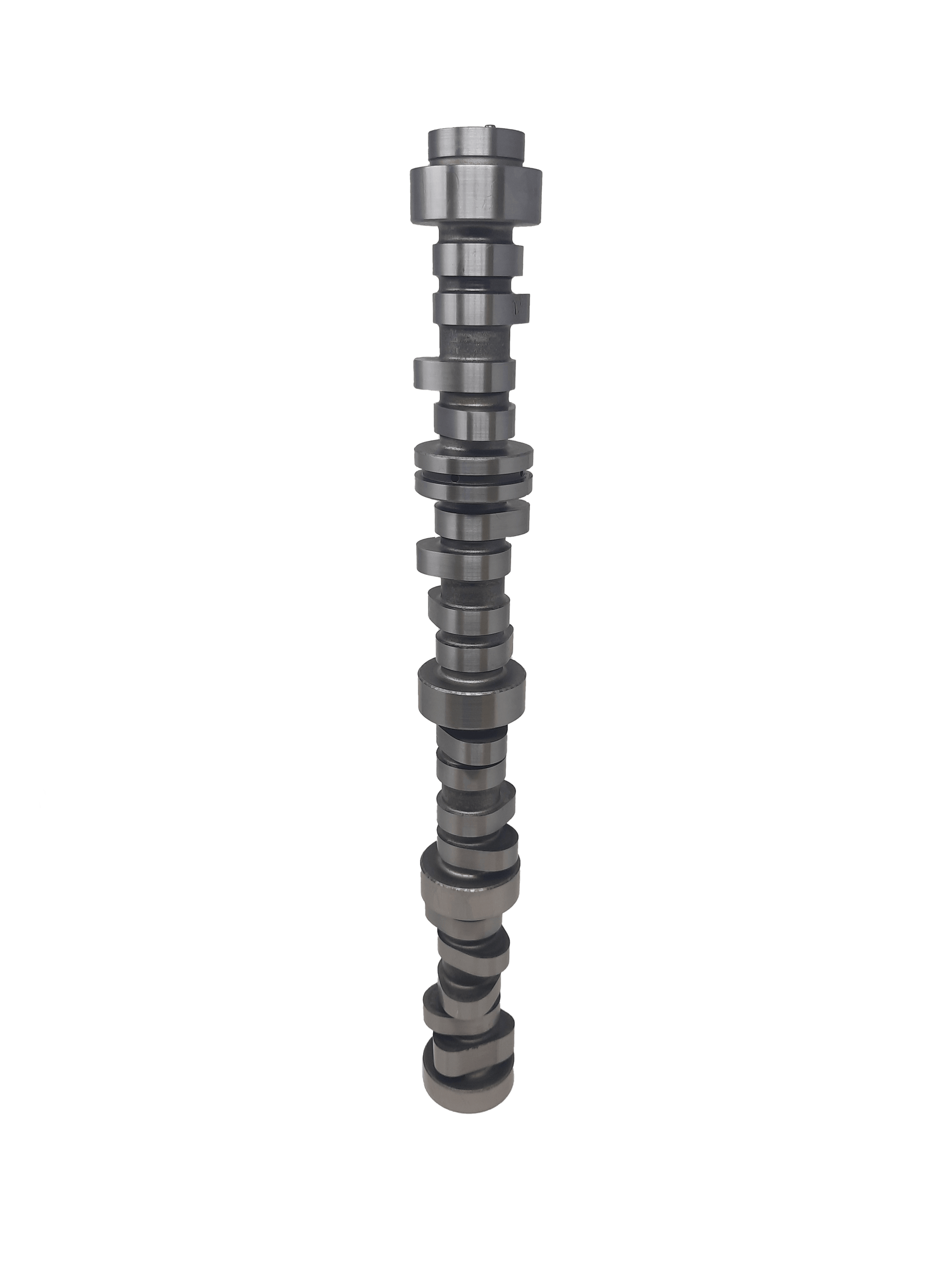

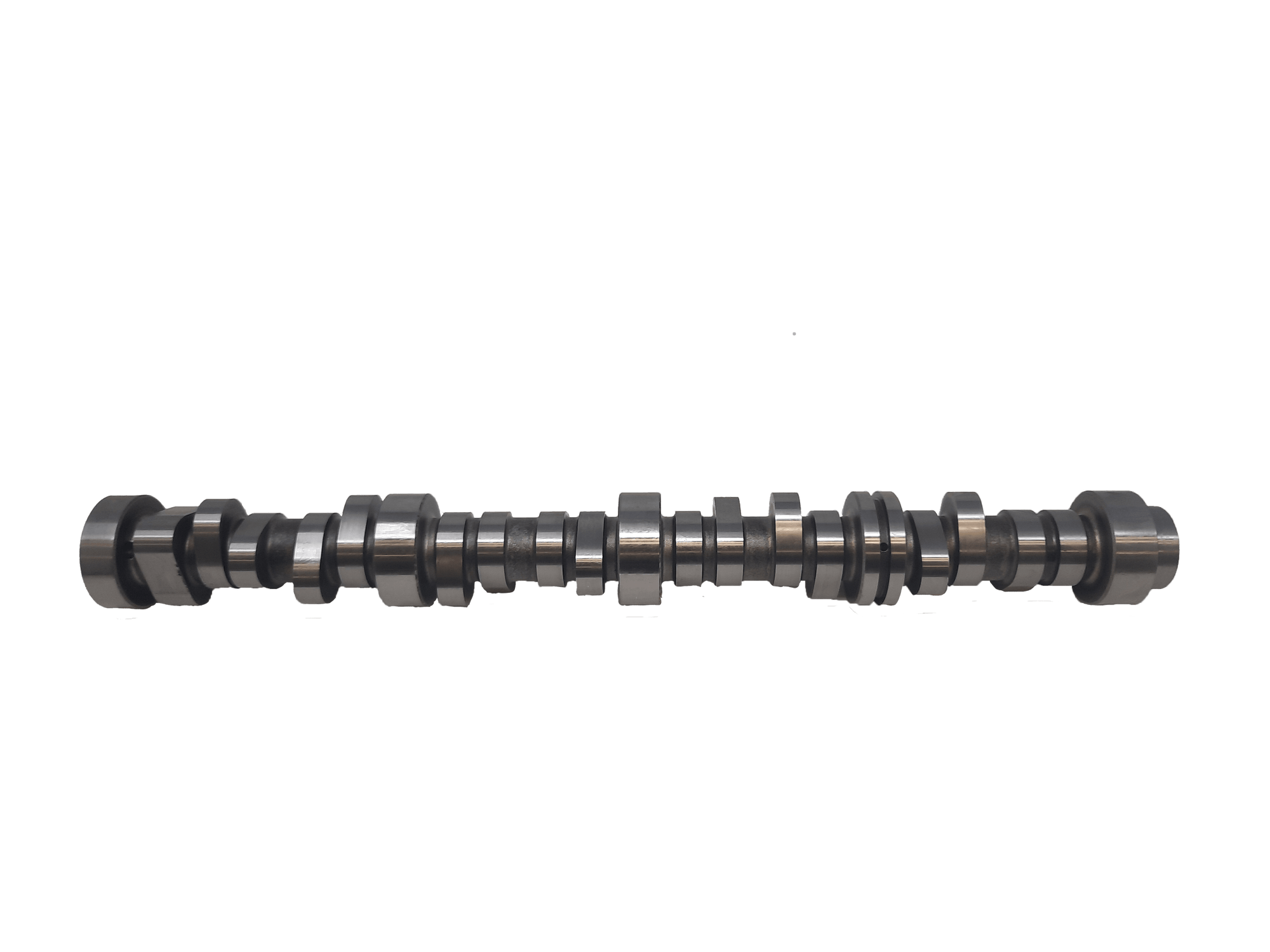

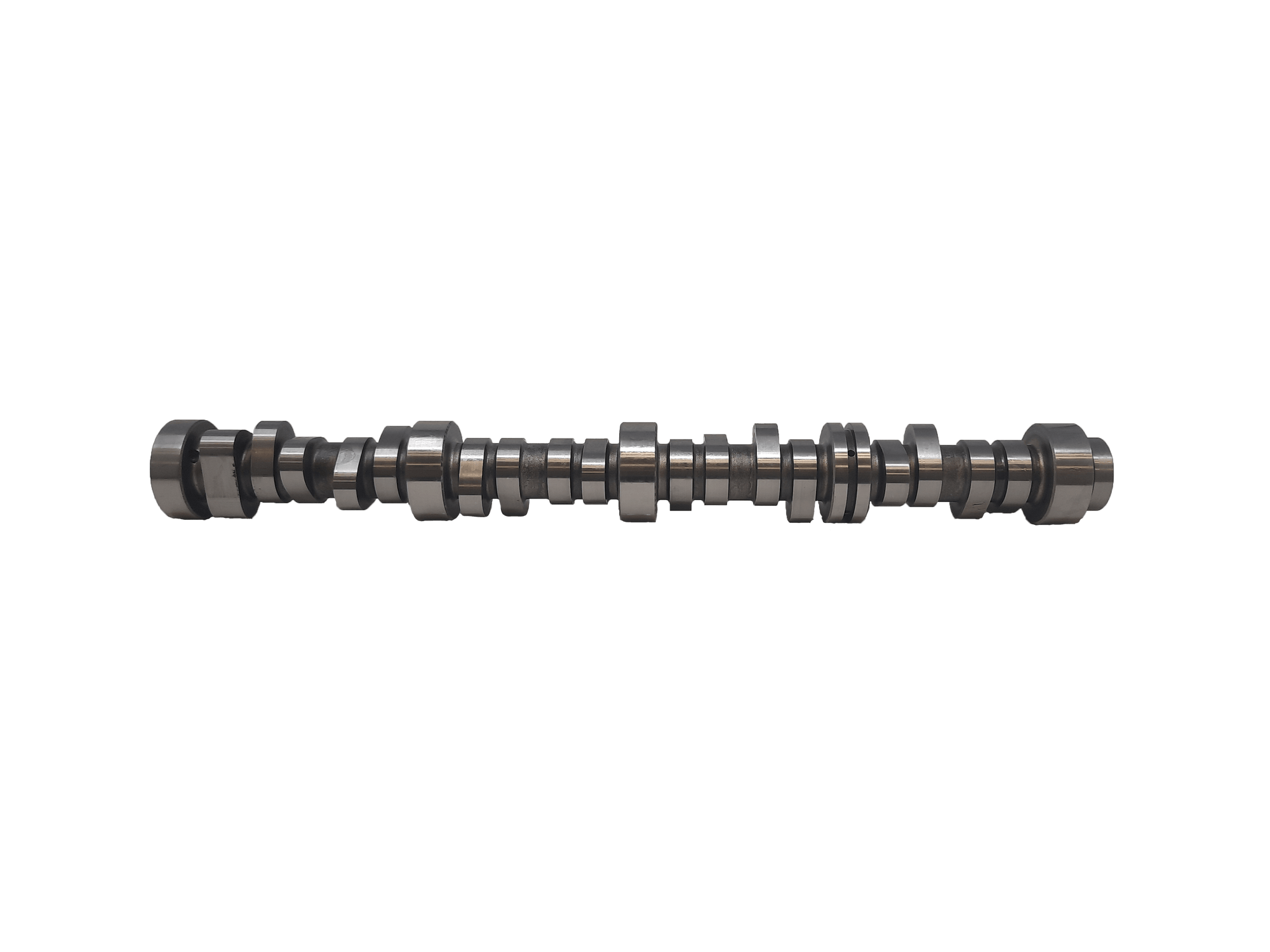

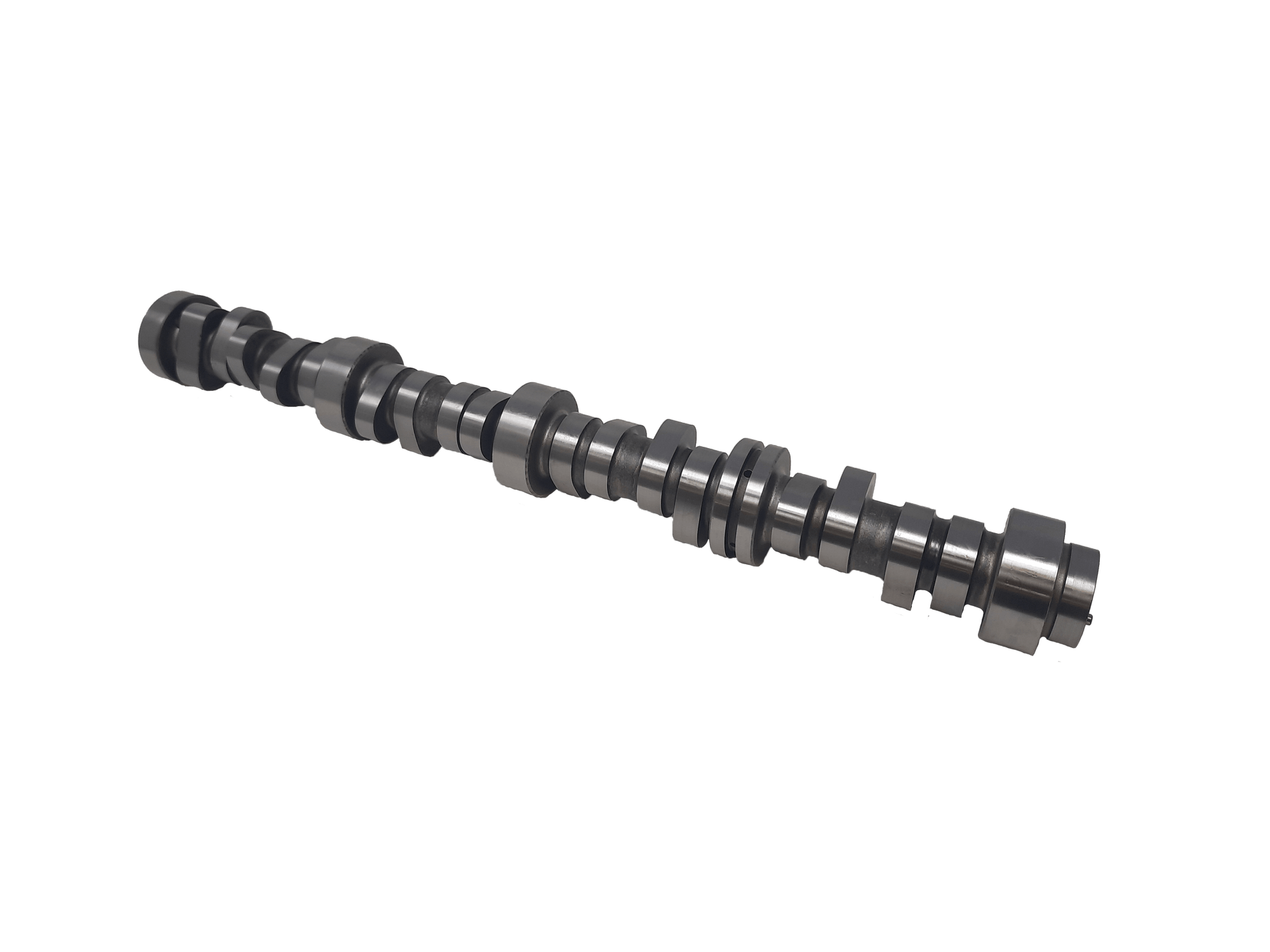

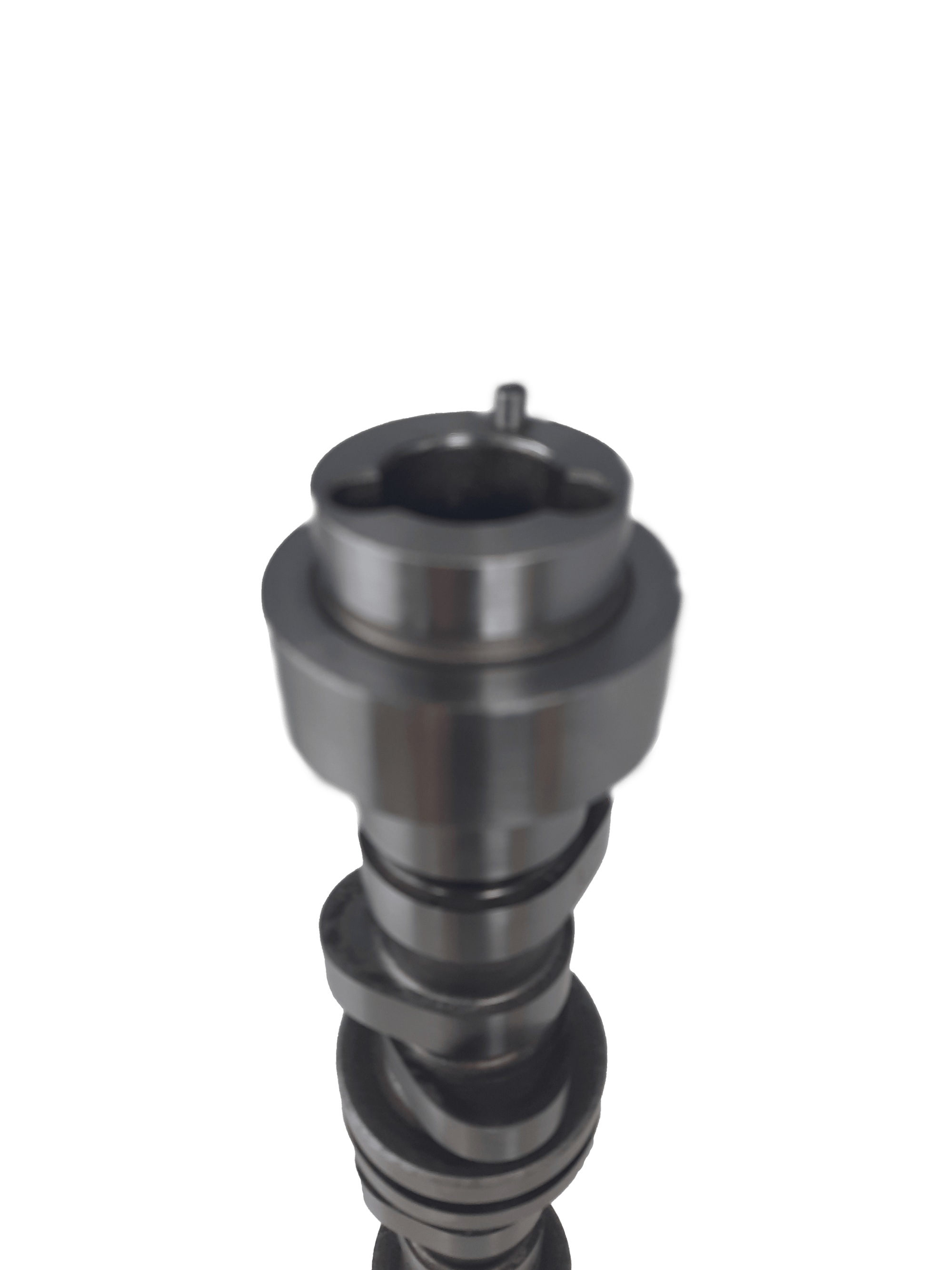

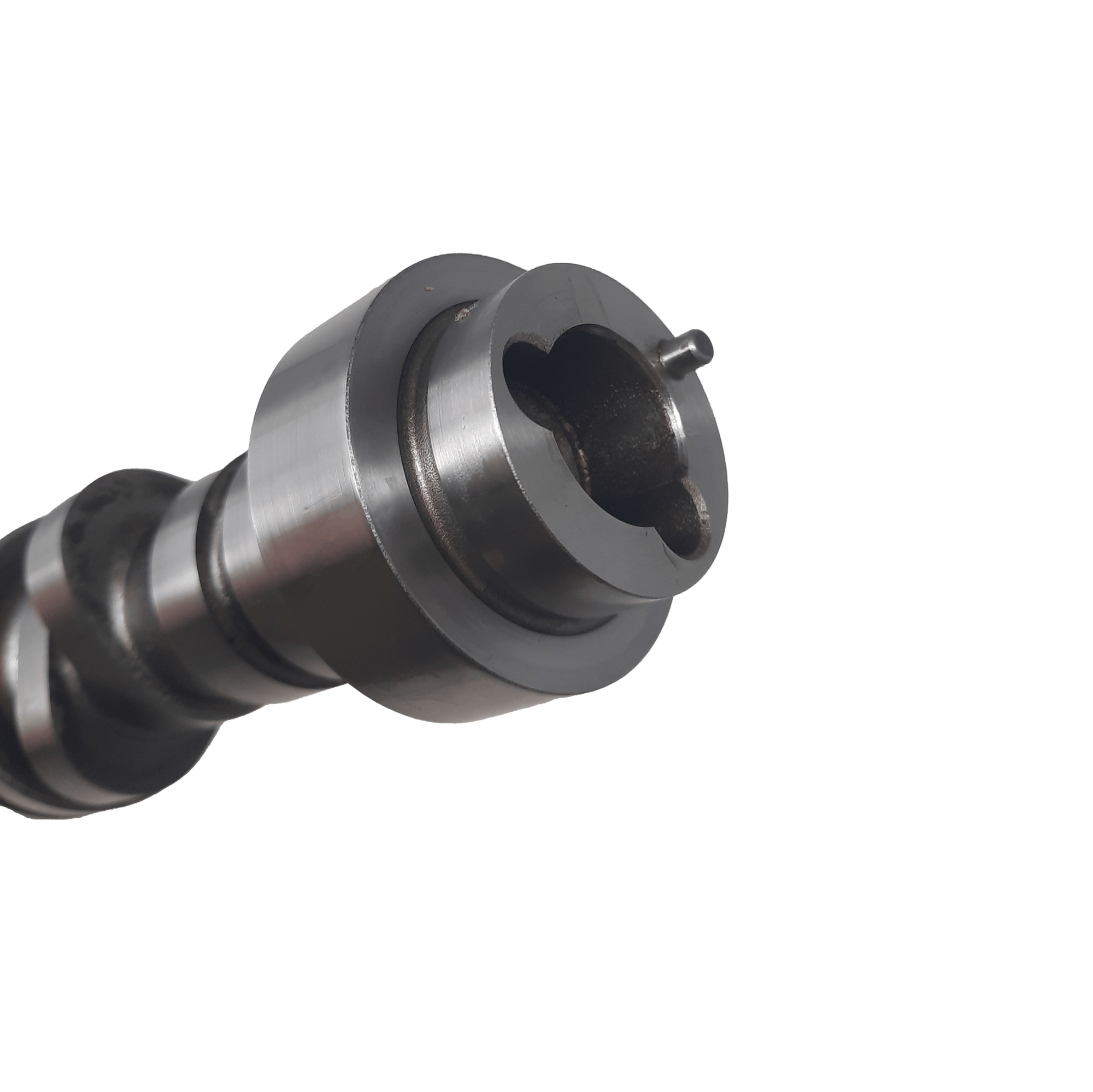

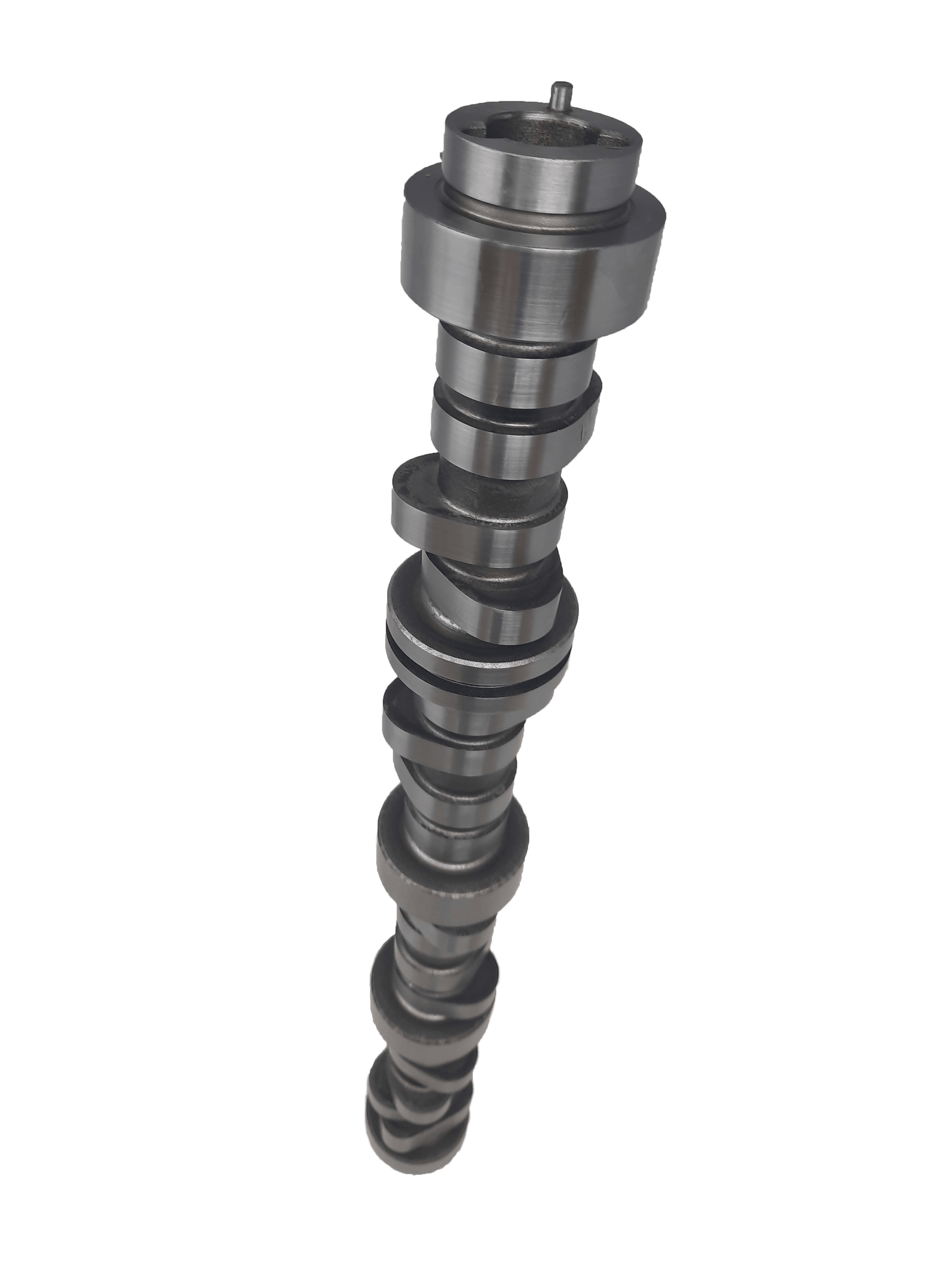

LTX "LT 350 HO" 350/402 Camshaft 0.635/0.635 Lift 226/234 Duration- Lobe Sep 114+2
LTX "LT 350 HO" 350/402 Camshaft 0.635/0.635 Lift 226/234 Duration- Lobe Sep 114+2
LTX "LT 350 HO" 350/402 Camshaft 0.635/0.635 Lift 226/234 Duration- Lobe Sep 114+2
LTX "LT 350 HO" 350/402 Camshaft 0.635/0.635 Lift 226/234 Duration- Lobe Sep 114+2
LTX "LT 350 HO" 350/402 Camshaft 0.635/0.635 Lift 226/234 Duration- Lobe Sep 114+2
LTX "LT 350 HO" 350/402 Camshaft 0.635/0.635 Lift 226/234 Duration- Lobe Sep 114+2
LTX "LT 350 HO" 350/402 Camshaft 0.635/0.635 Lift 226/234 Duration- Lobe Sep 114+2
LTX "LT 350 HO" 350/402 Camshaft 0.635/0.635 Lift 226/234 Duration- Lobe Sep 114+2
$ 420.00

LTX "LT 350 HO" 350/402 Camshaft 0.635/0.635 Lift 226/234 Duration- Lobe Sep 114+2

+

Only left in stock

LTX 350/402 Camshaft 0.635/0.635 Lift 226/234 Duration- Lobe Sep 114+2

*Must be used with LT Timing Gear Phaser Removal Kit*

Technical Specs

  • Nickname: LT 350 HO
  • Engine Type: LT
  • Induction Type: Naturally Aspirated & Nitrous
  • Sound Type: Mild Choppy Idle
  • Recommended Cubic Inch: LT 350-402
  • Application: Street Car/Truck
  • Intake Lobe Duration @ 0.050: 226
  • Exhaust Lobe Duration @ 0.050: 234
  • Lobe Separation: 114+2
  • Direct Injection Fuel Lobe: STD LT, 20% Increase
  • Timing Gear Type: Single Bolt LT
  • Intake Lobe Lift: 0.353"
  • Exhaust Lobe Lift: 0.353"
  • Intake Valve Lift w/ 1.7 rocker: 0.600"
  • Exhaust Valve Lift w/ 1.7 rocker: 0.600"
  • Intake Valve Lift w/ 1.8 rocker: 0.635"
  • Exhaust Valve Lift w/1.8 rocker: 0.635"
  • Rocker Arm Recommendation:  Factory w/ Trunnion Upgrade
  • Valve Spring Recommendations: Mast Dual Spring Kit
