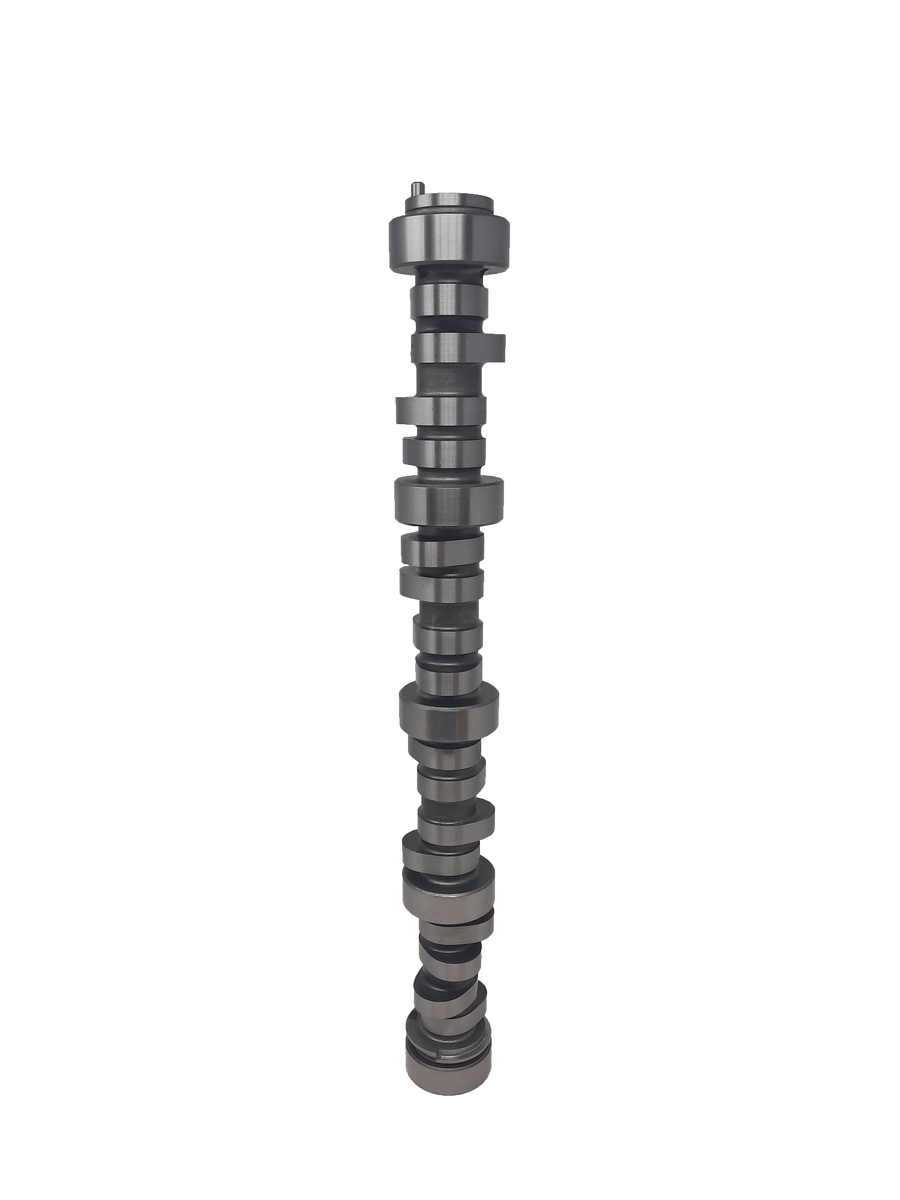

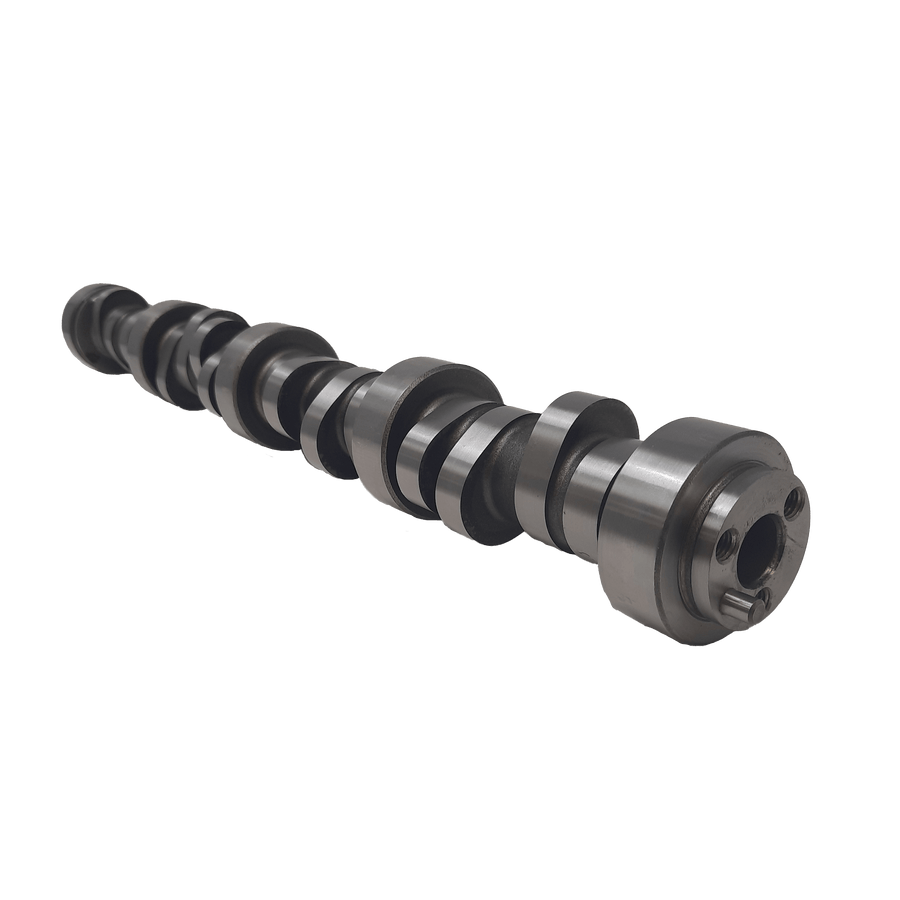

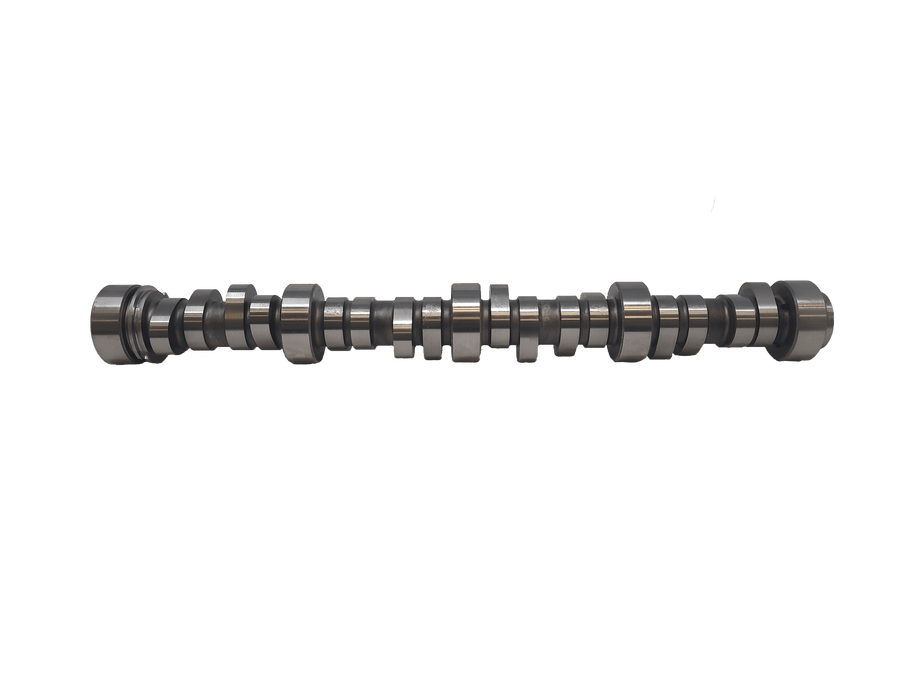

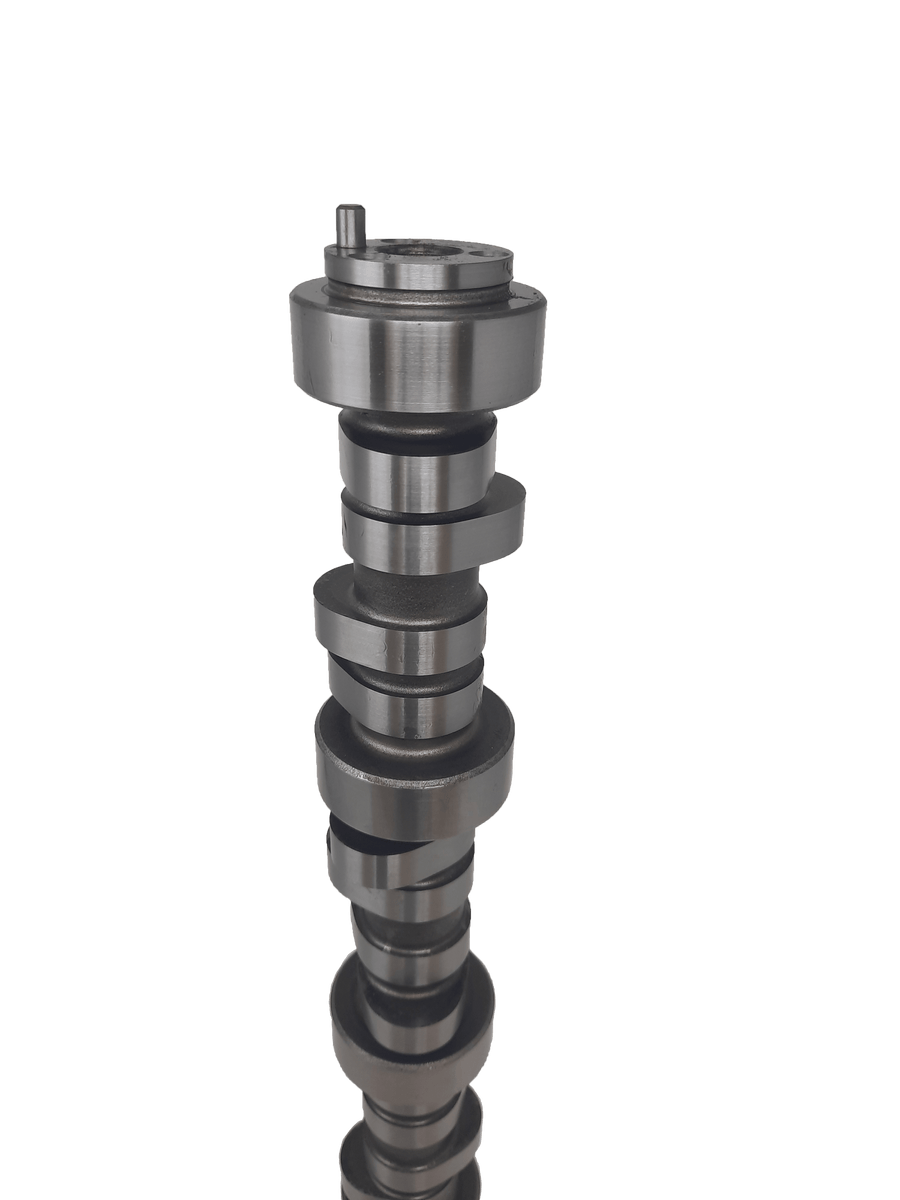

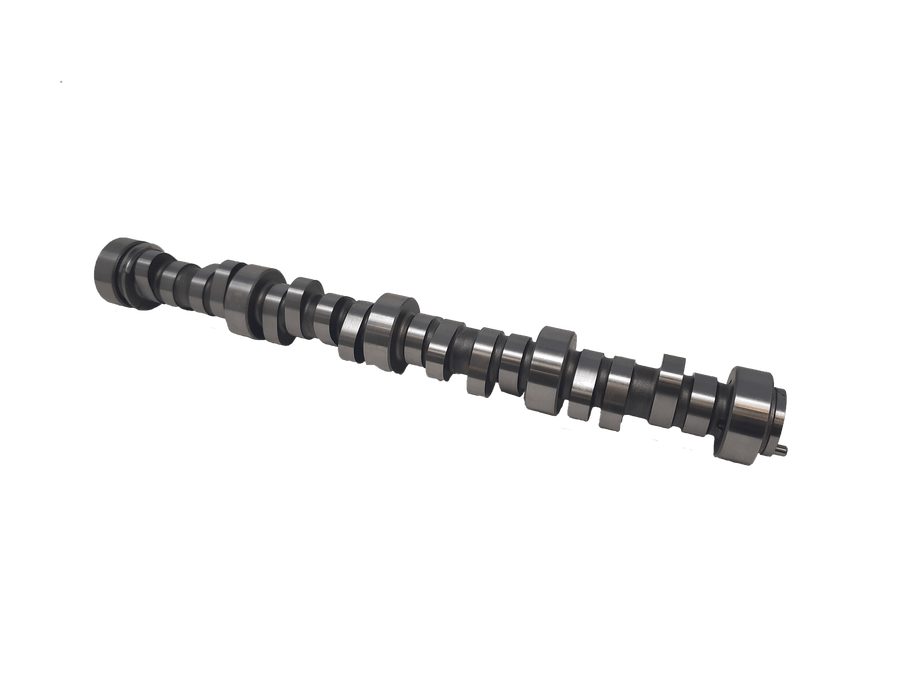

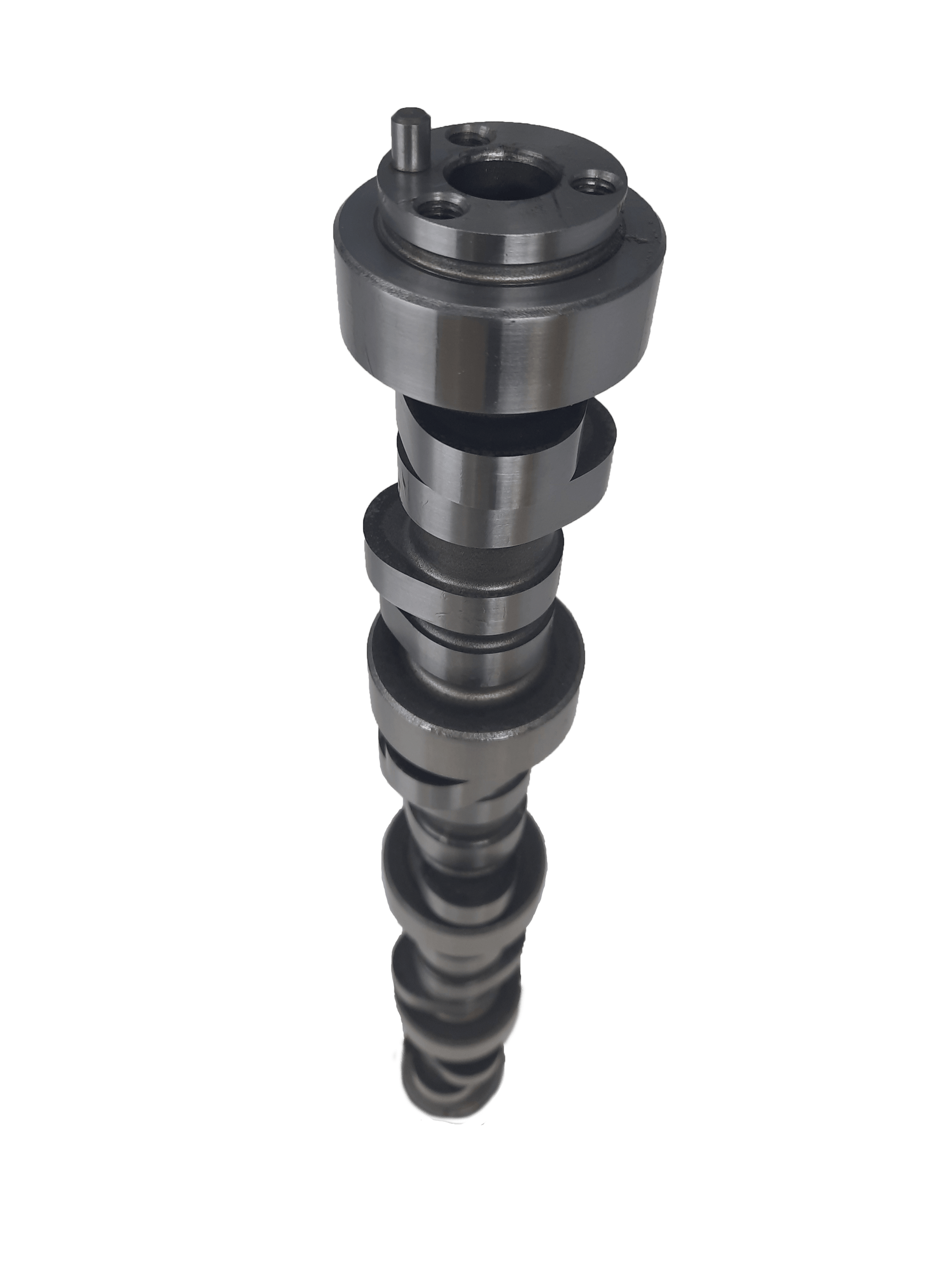

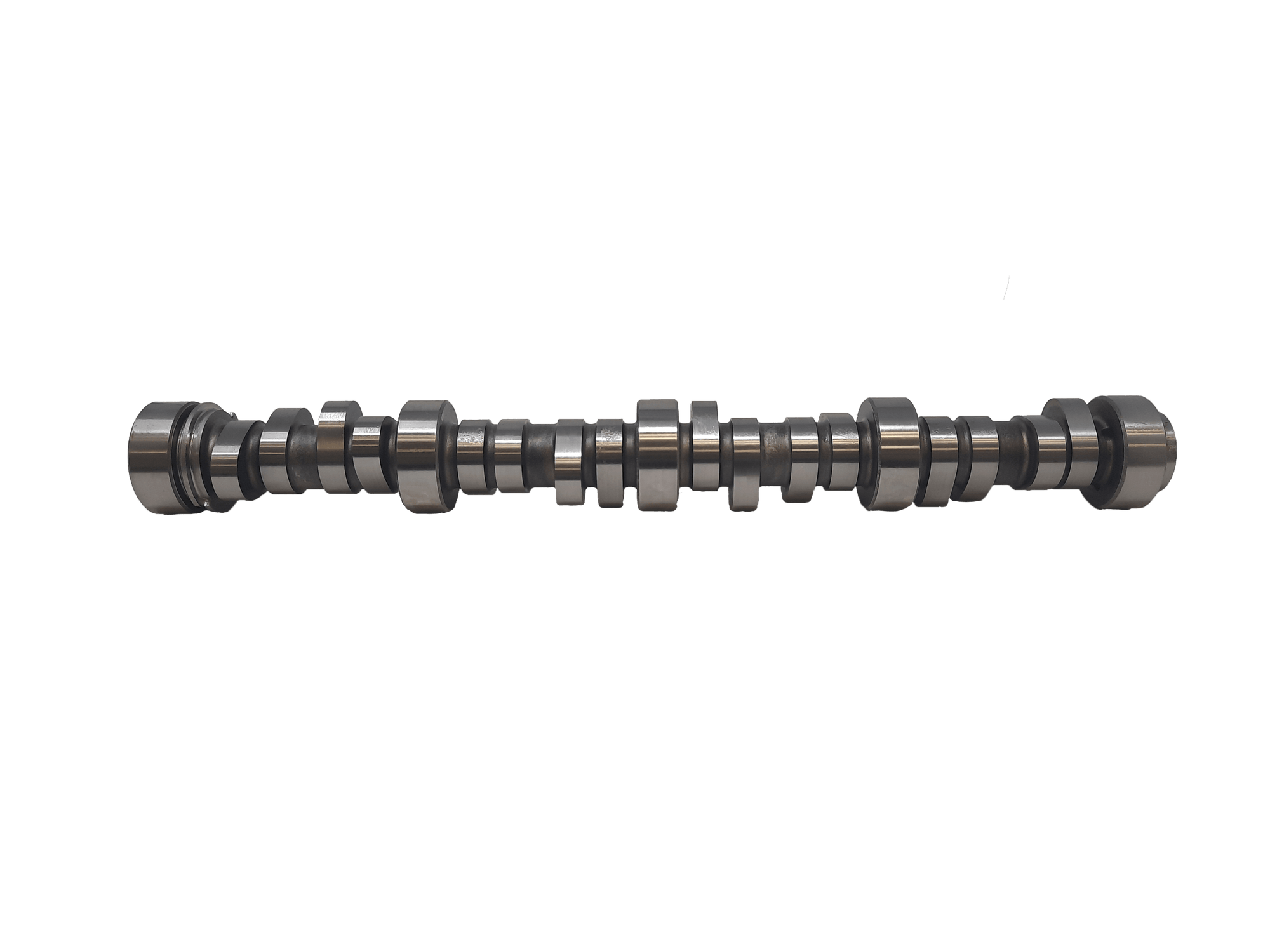

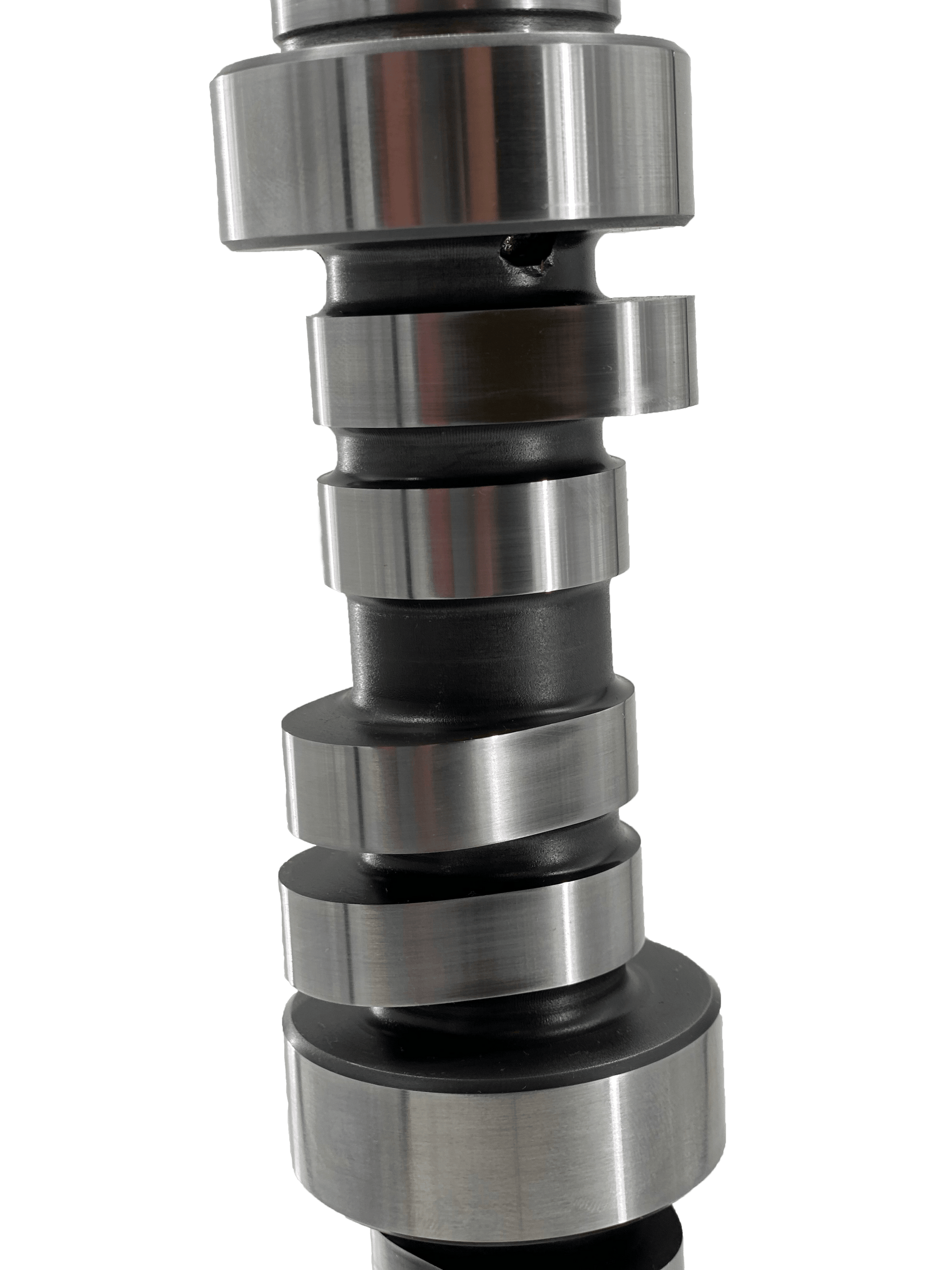

LS "The Demon" Camshaft 0.666/0.666 Lift 250/264 Duration - Lope Sep 114+4
LS Camshaft 0.666/0.666 Lift 250/264 Duration - Lope Sep 114+4
Technical Specs
-
Nickname: The Demon
-
Engine Type: LS
-
Induction Type: Naturally Aspirated & Nitrous
-
Sound Type: Rough Choppy Idle
-
Recommended Cubic Inch: LSX 454 SS
-
Application: Race
-
Intake Lobe Duration @ 0.050: 250
-
Exhaust Lobe Duration @ 0.050: 264
-
Lobe Separation: 114+4
-
Direct Injection Fuel Lobe: N/A
-

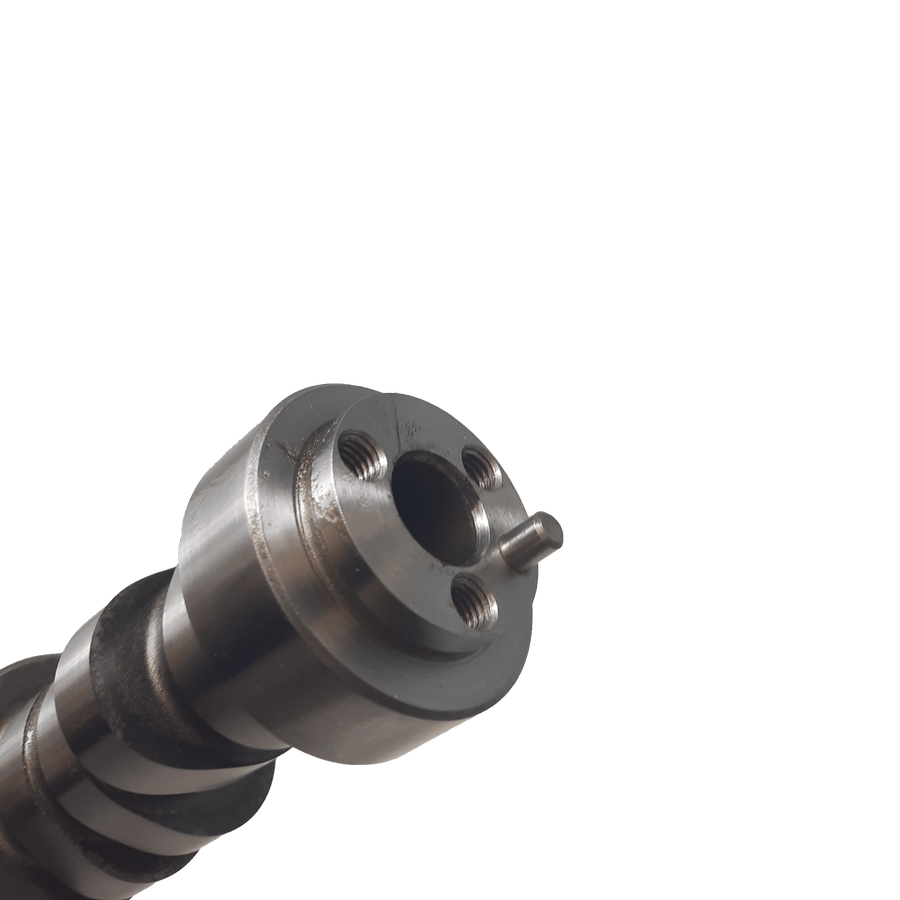

Timing Gear Type: Three Bolt
-
Intake Lobe Lift: 0.370"
-
Exhaust Lobe Lift: 0.370"
-
Intake Valve Lift w/ 1.7 rocker: 0.629"
-
Exhaust Valve Lift w/ 1.7 rocker: 0.629"
-
Intake Valve Lift w/ 1.8 rocker: 0.666"
-
Exhaust Valve Lift w/1.8 rocker: 0.666"
-
Rocker Arm Recommendation: Factory w/ Trunnion Upgrade
-
Valve Spring Recommendations: Mast Dual Spring Kit
