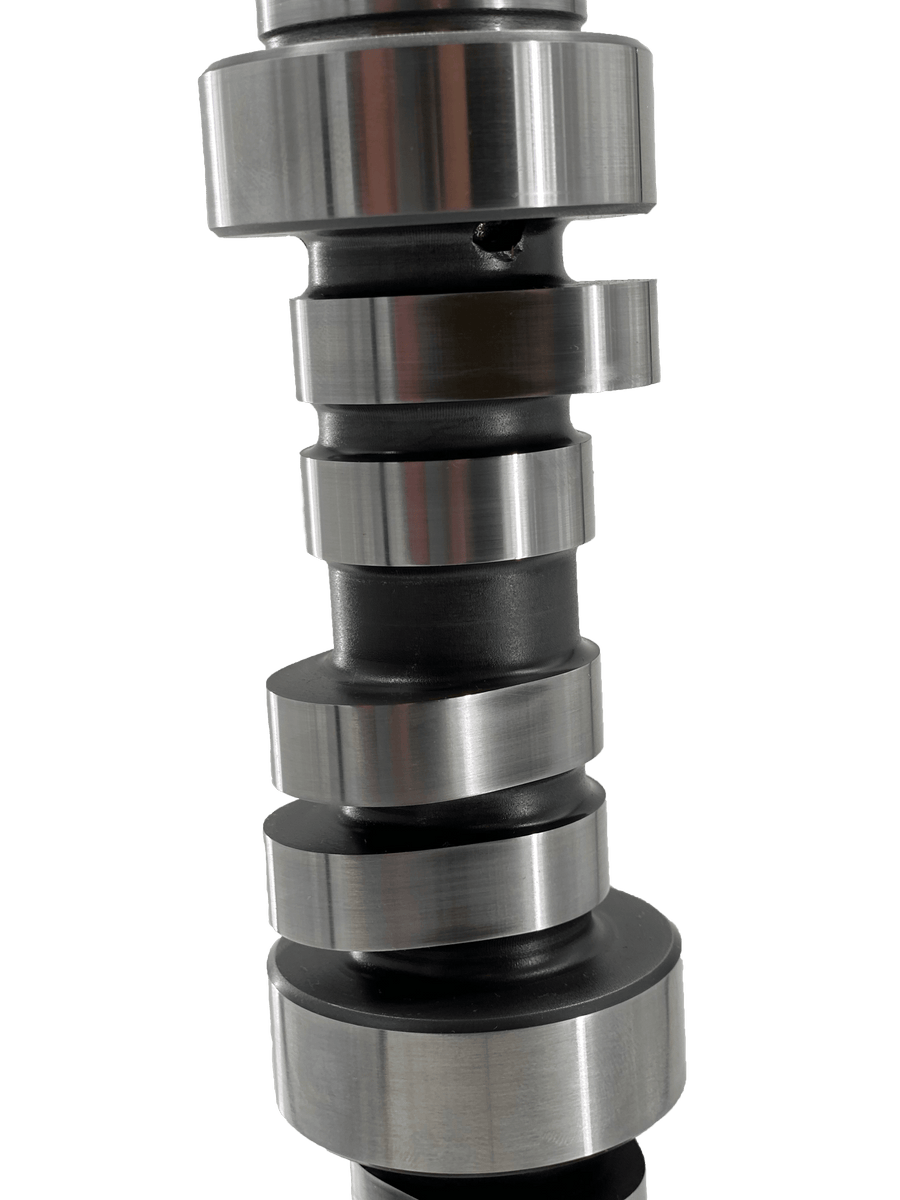

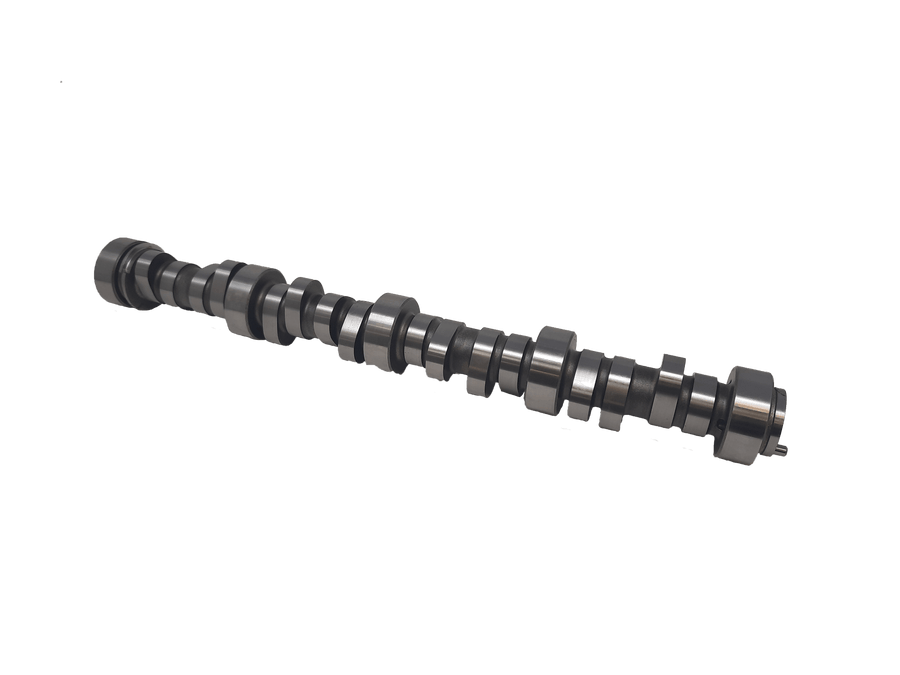

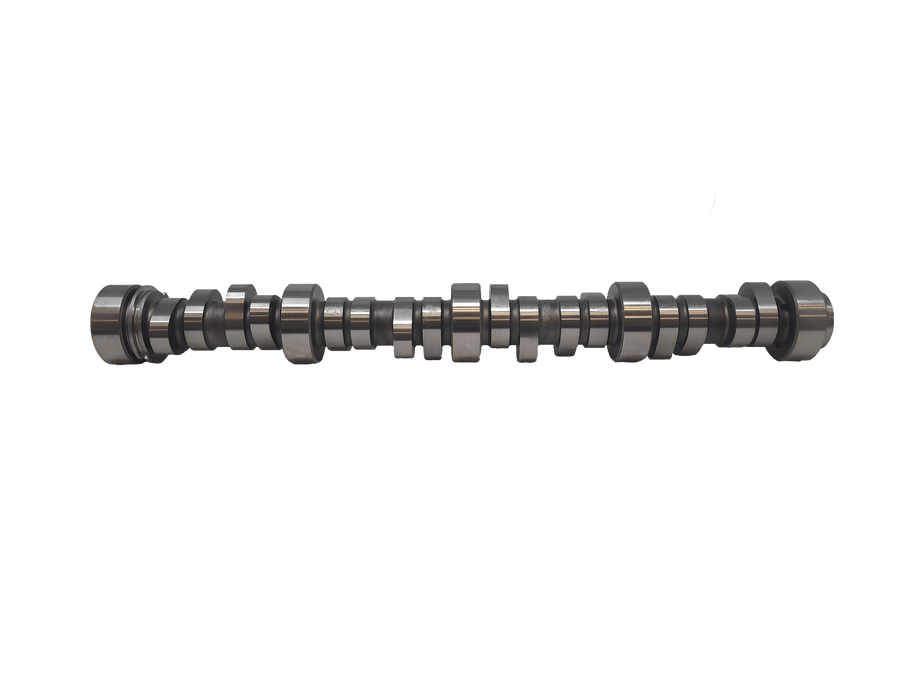

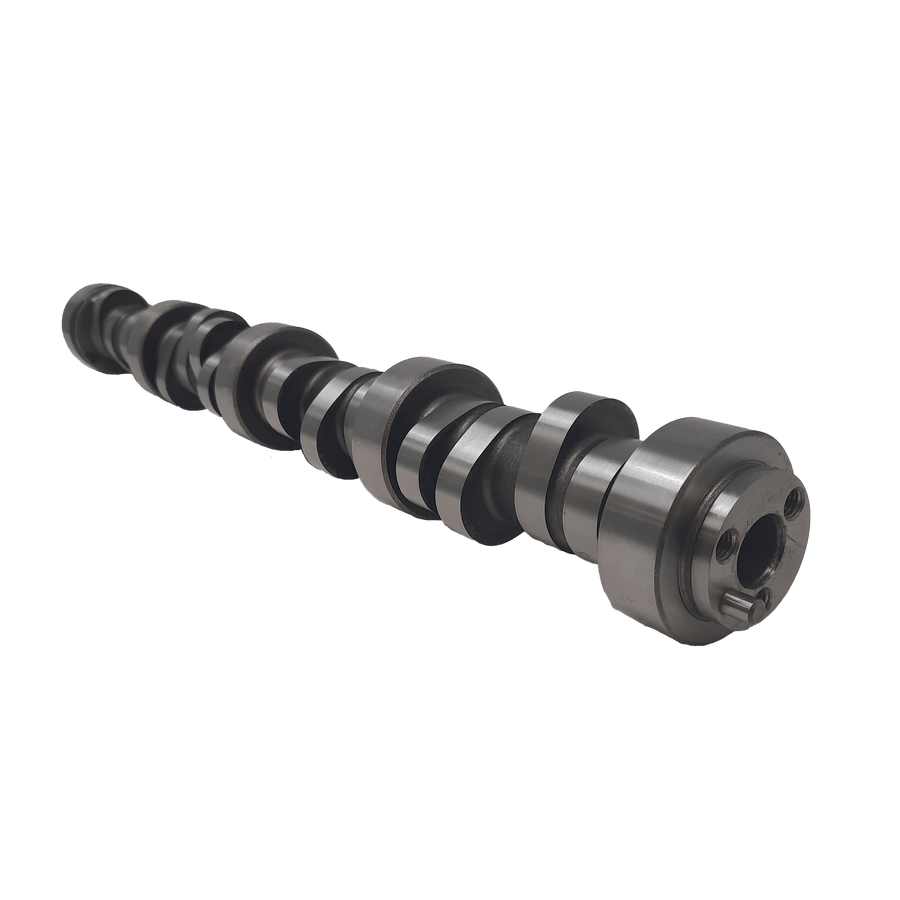

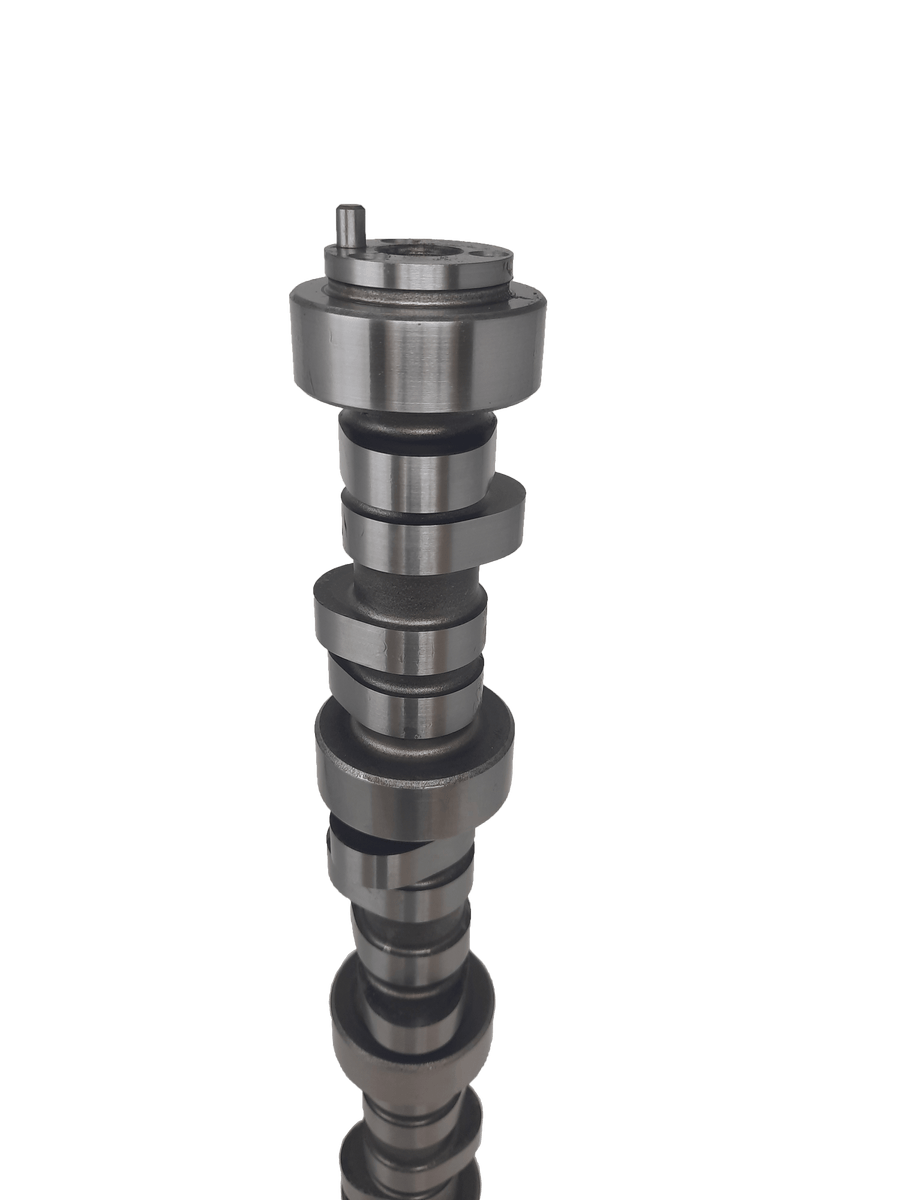

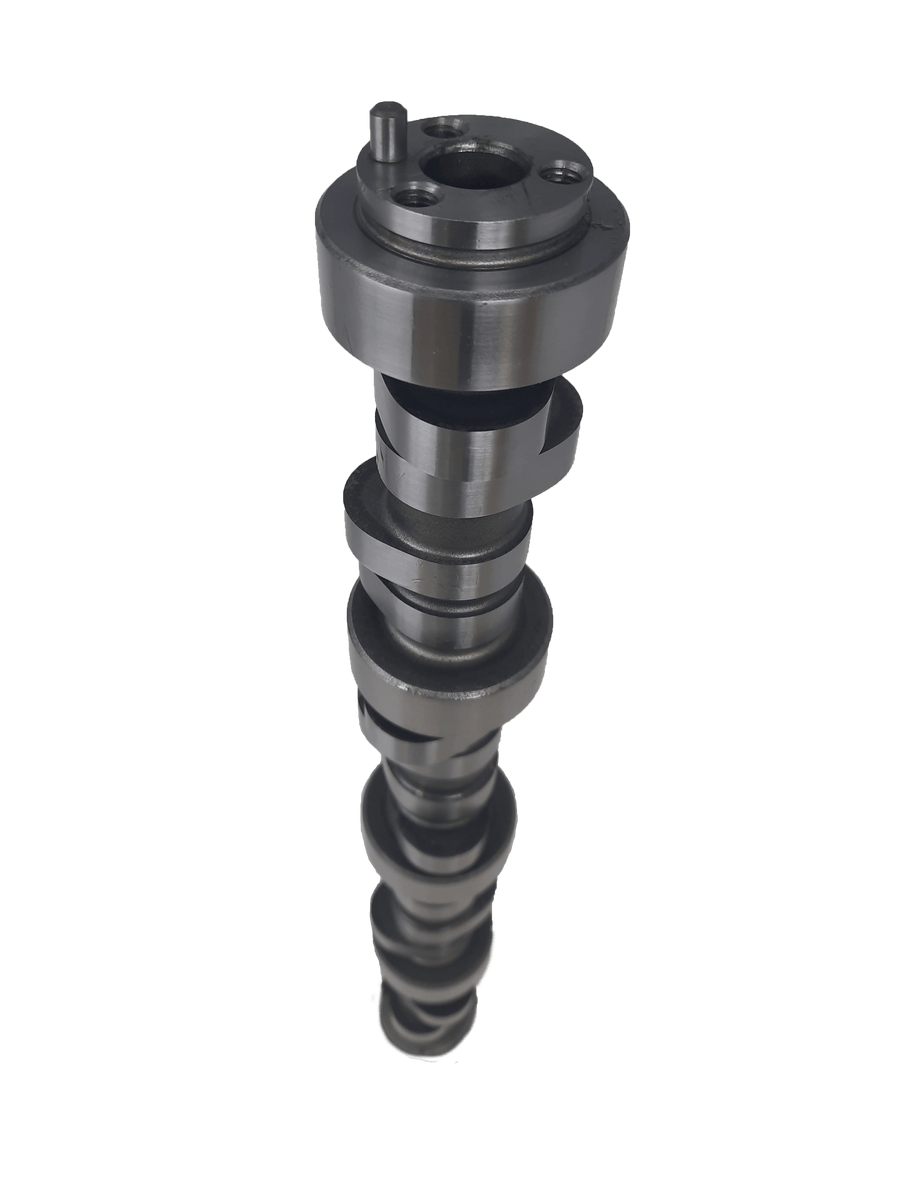

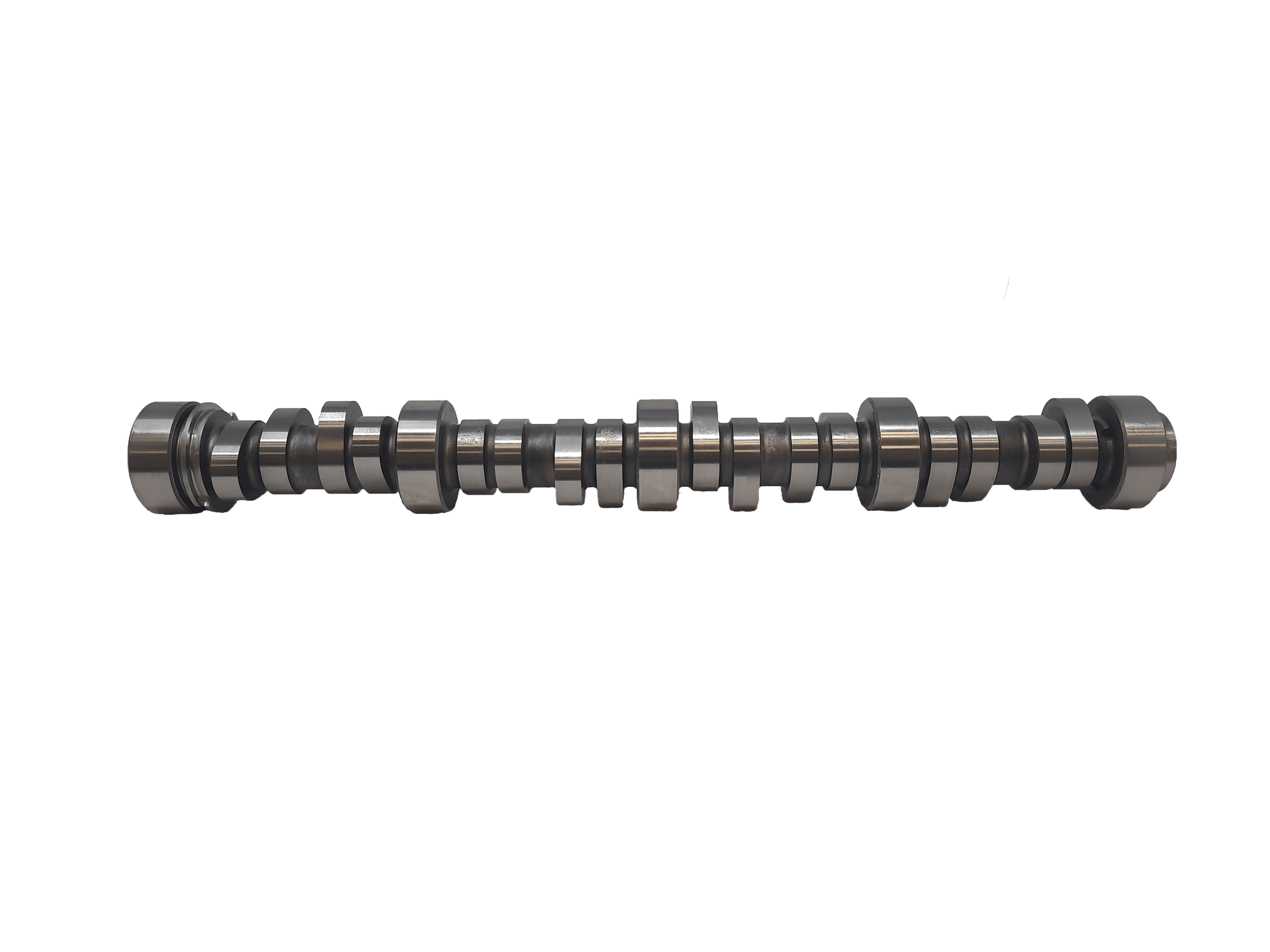

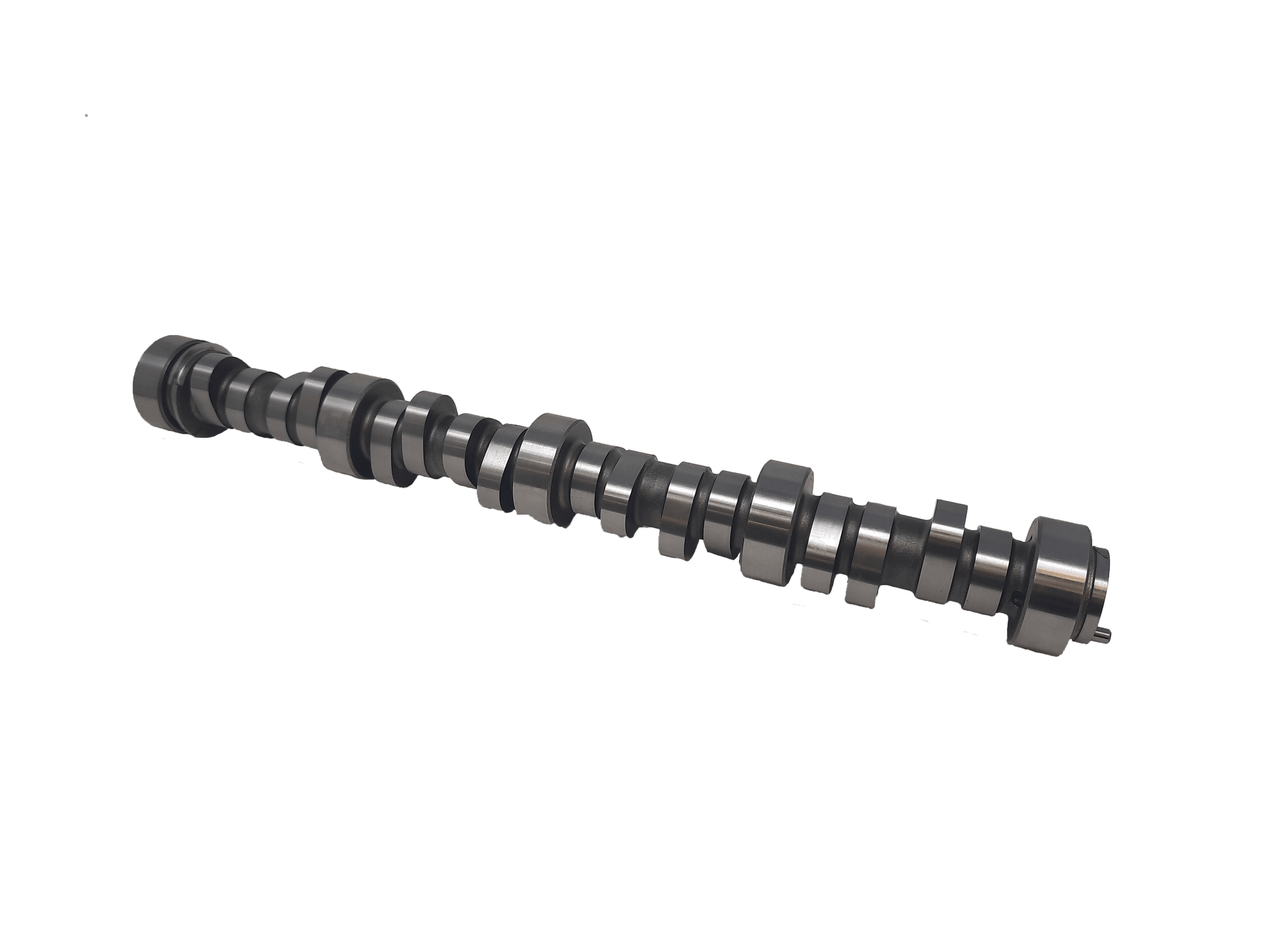

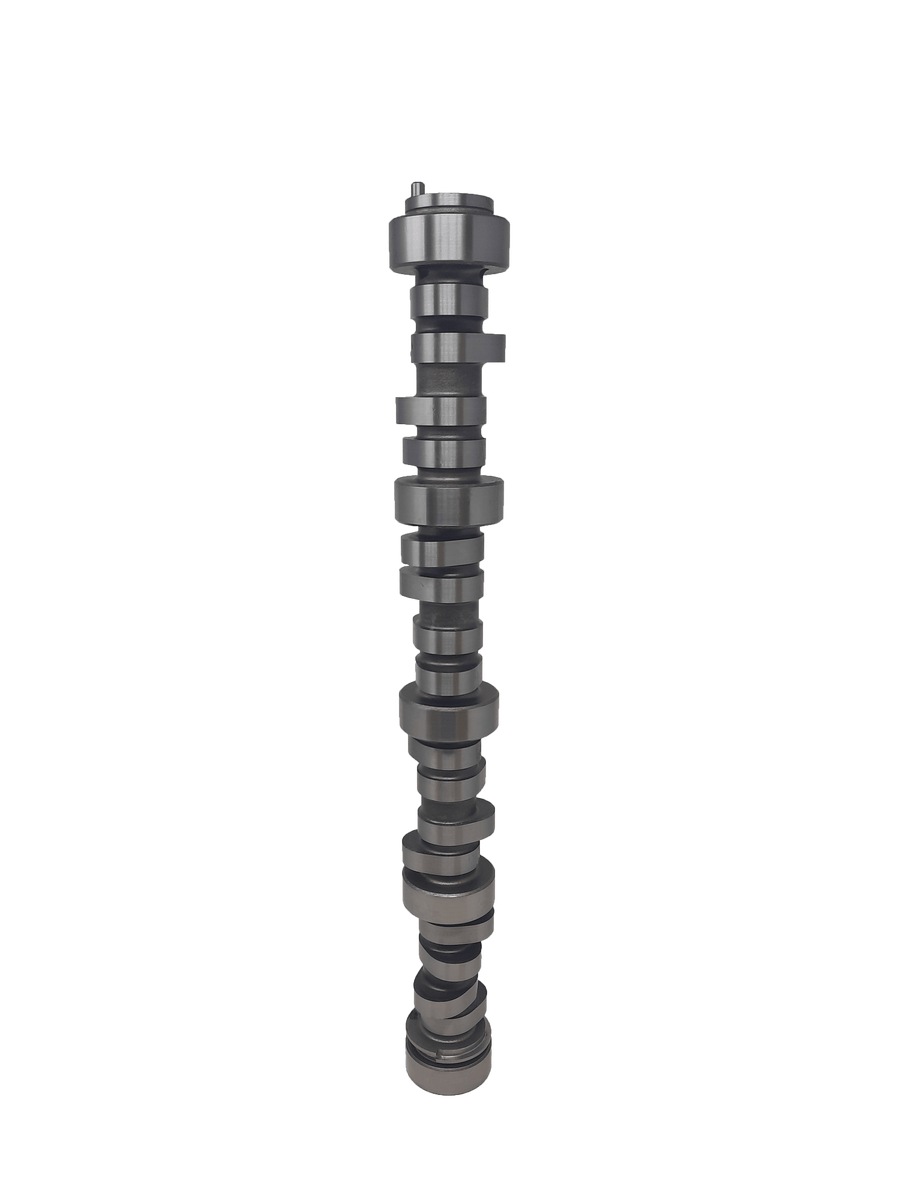

LS "HO Supercharger" Camshaft 0.635/0.648 Lift 226/246 Duration- Lobe Sep 116+6
LS Camshaft 0.635/0.648 Lift 226/246 Duration- Lobe Sep 116+6
Technical Specs
-
Nickname: HO Supercharger
-
Engine Type: LS
-
Induction Type: Supercharged
-
Sound Type: Rough Choppy Idle
-
Recommended Cubic Inch: LSX 427 FI
-
Application: Super Charged Street Car
-
Intake Lobe Duration @ 0.050: 226
-
Exhaust Lobe Duration @ 0.050: 246
-
Lobe Separation: 116+6
-
Direct Injection Fuel Lobe: N/A
-

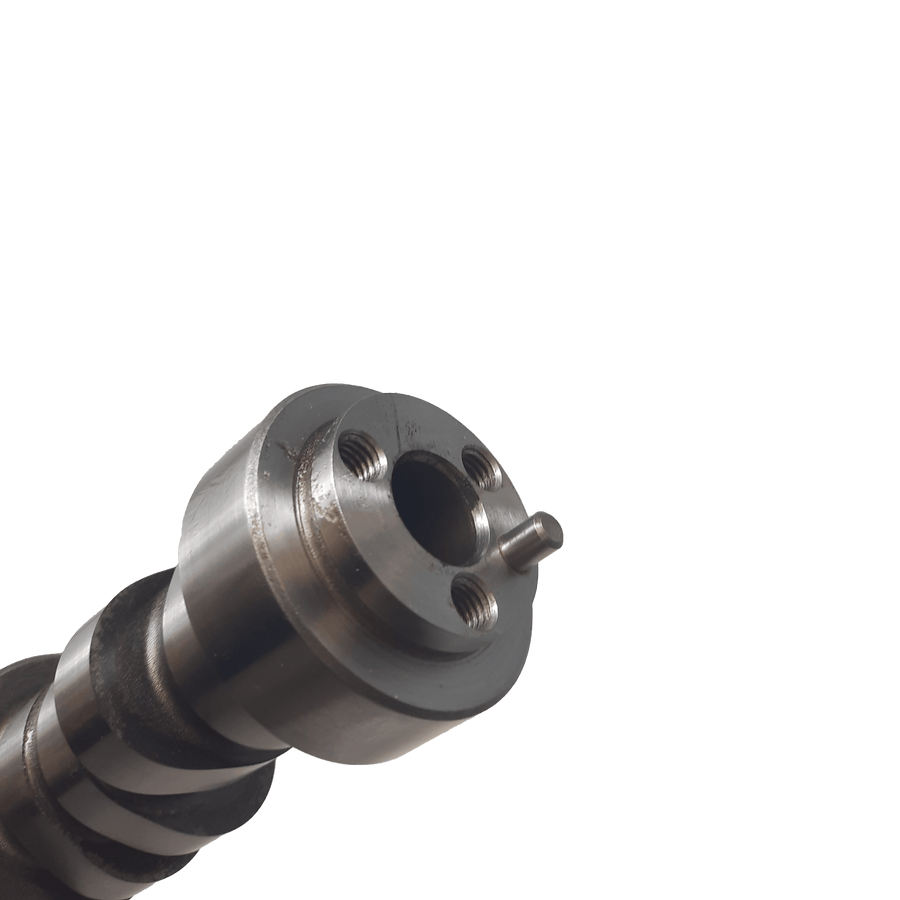

Timing Gear Type: Three Bolt
-
Intake Lobe Lift: 0.353"
-
Exhaust Lobe Lift: 0.360"
-
Intake Valve Lift w/ 1.7 rocker: 0.600"
-
Exhaust Valve Lift w/ 1.7 rocker: 0.612"
-
Intake Valve Lift w/ 1.8 rocker: 0.635"
-
Exhaust Valve Lift w/1.8 rocker: 0.648"
-
Rocker Arm Recommendation: Factory w/ Trunnion Upgrade
-
Valve Spring Recommendations: Mast Dual Spring Kit
