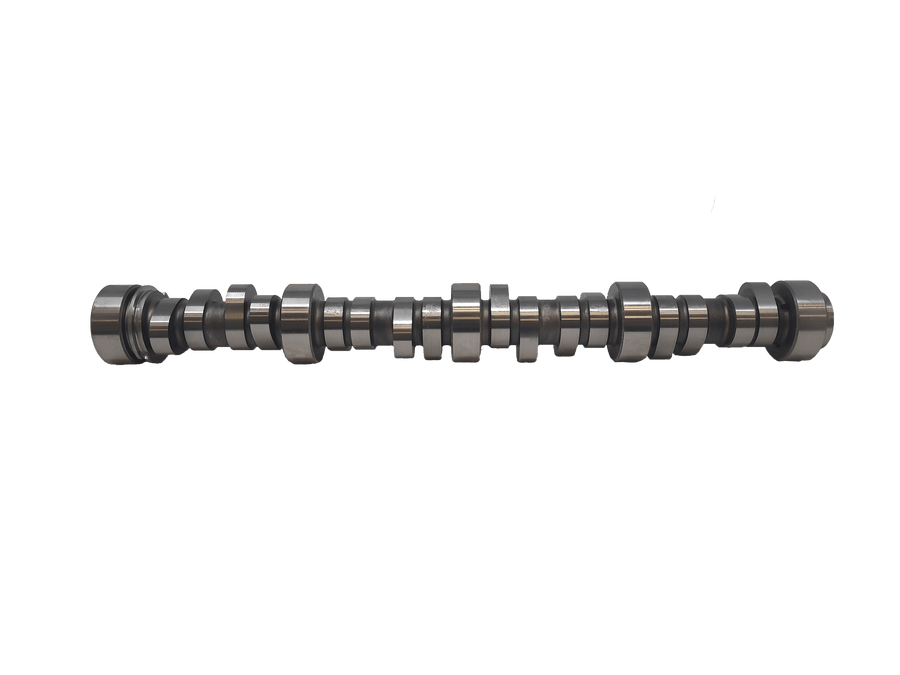

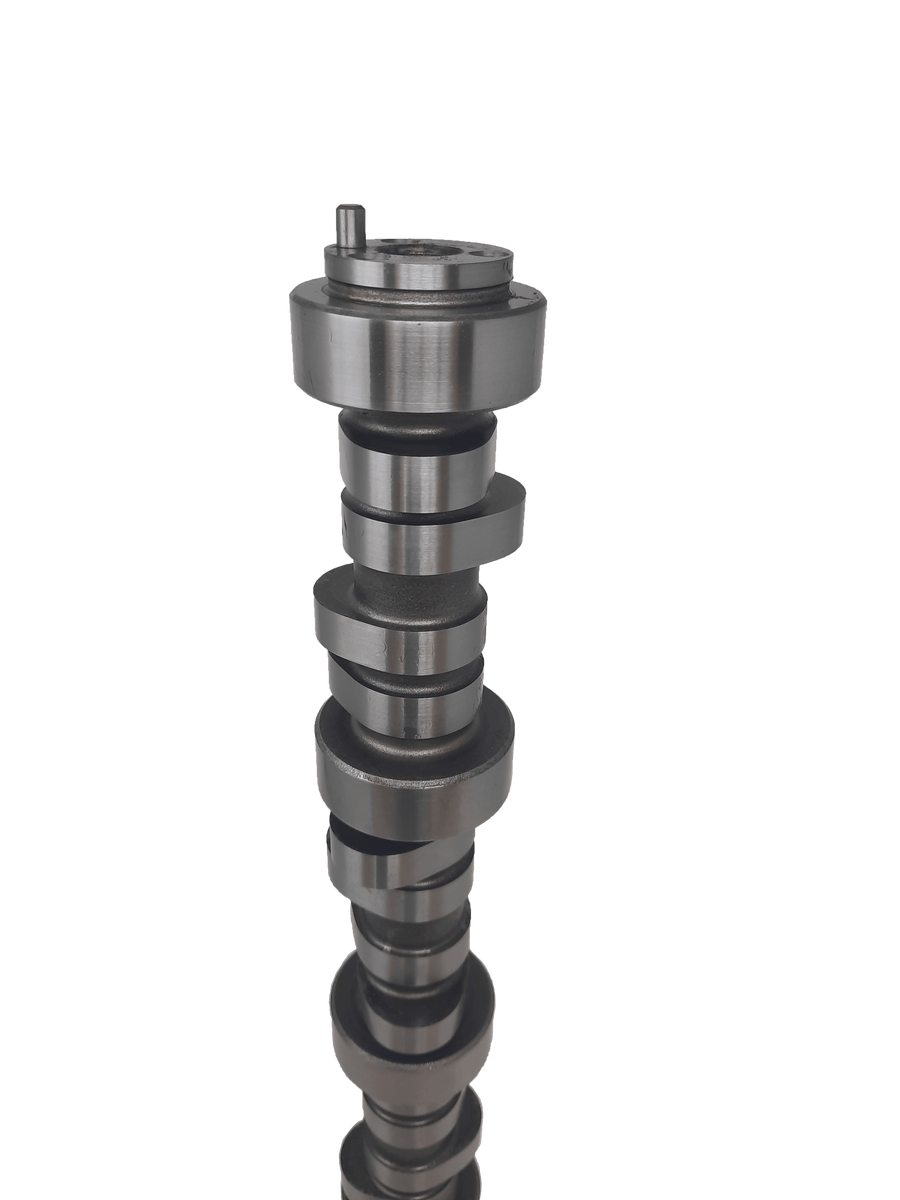

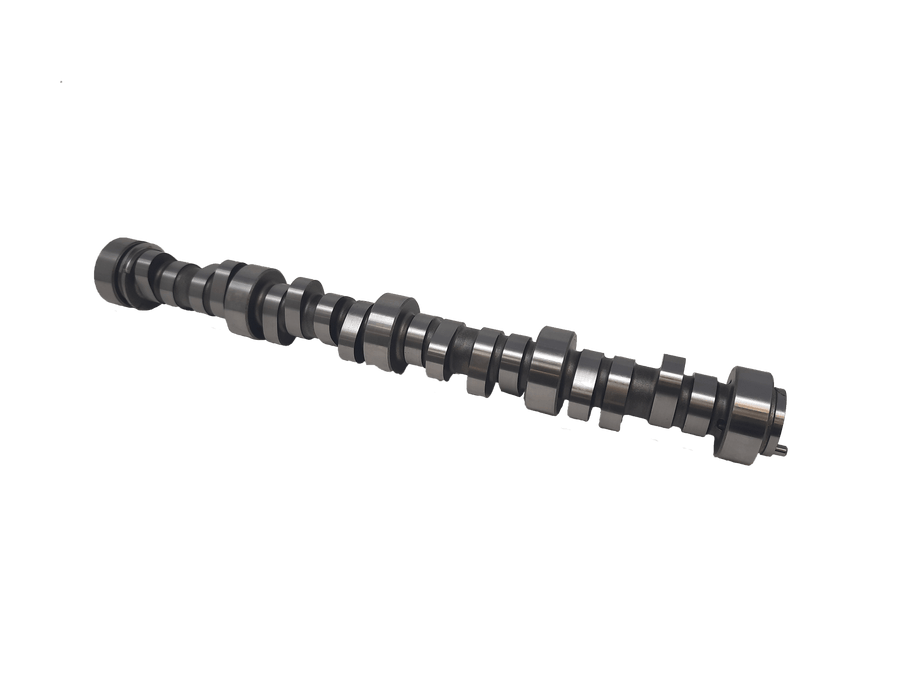

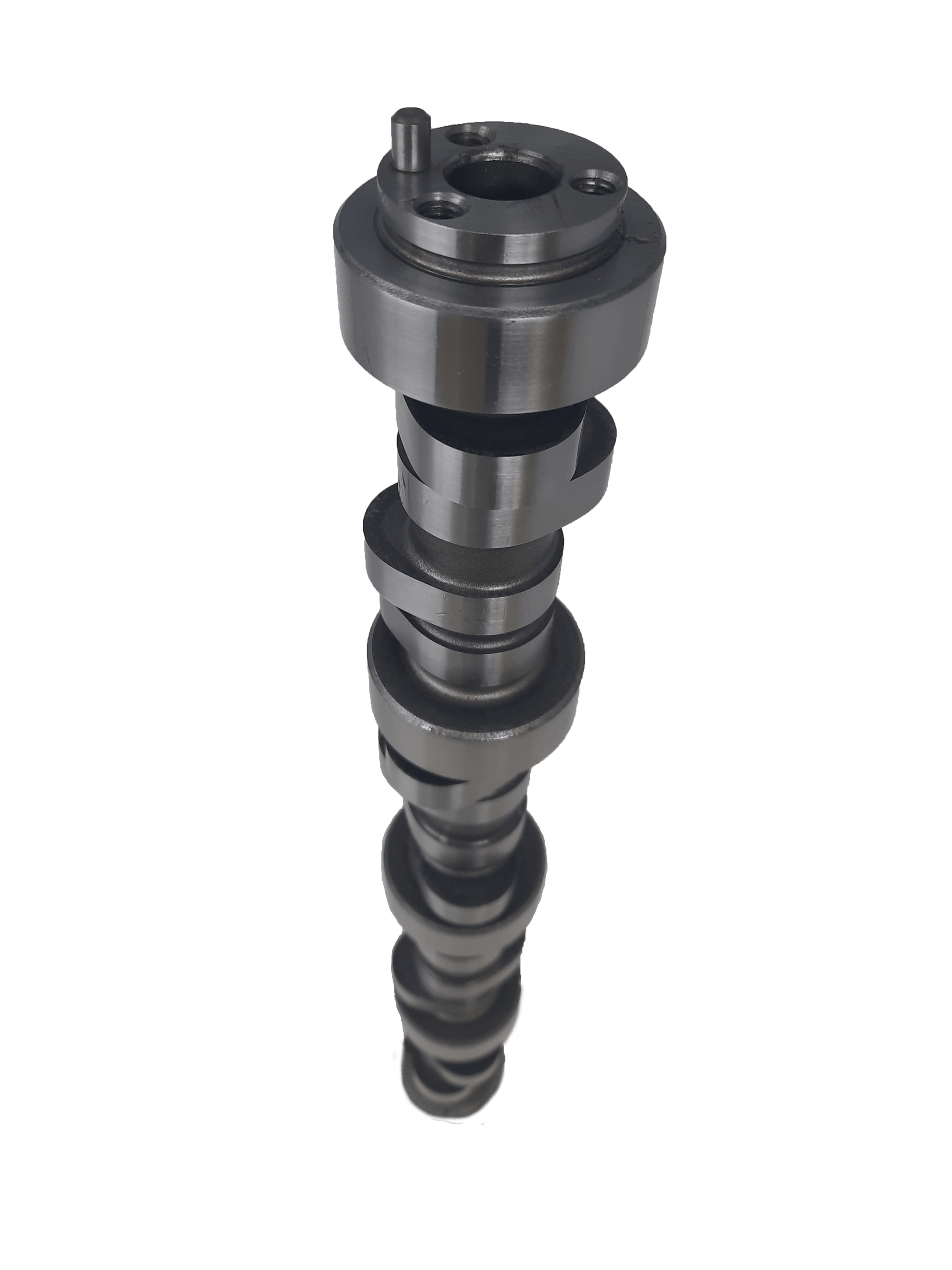

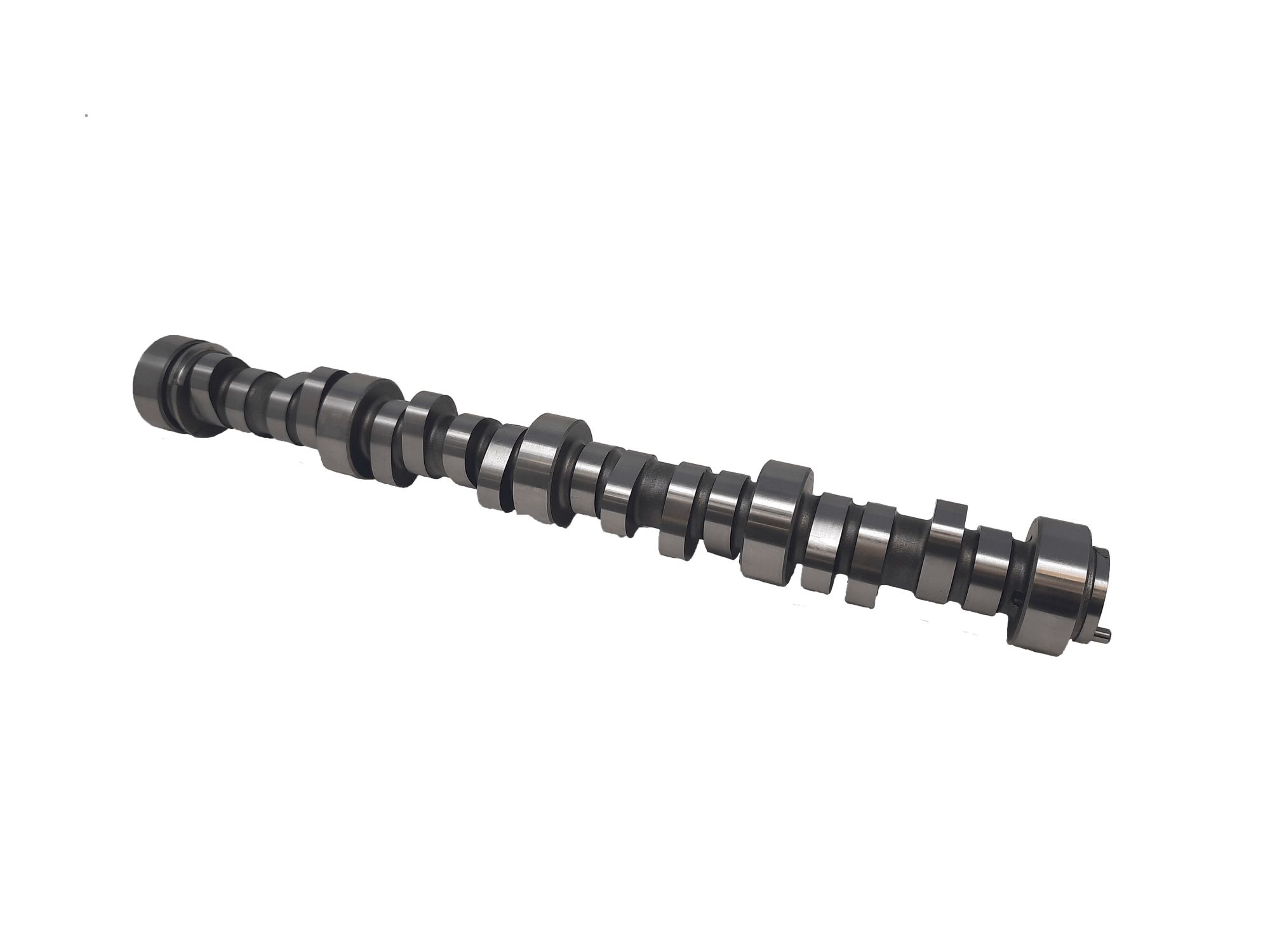

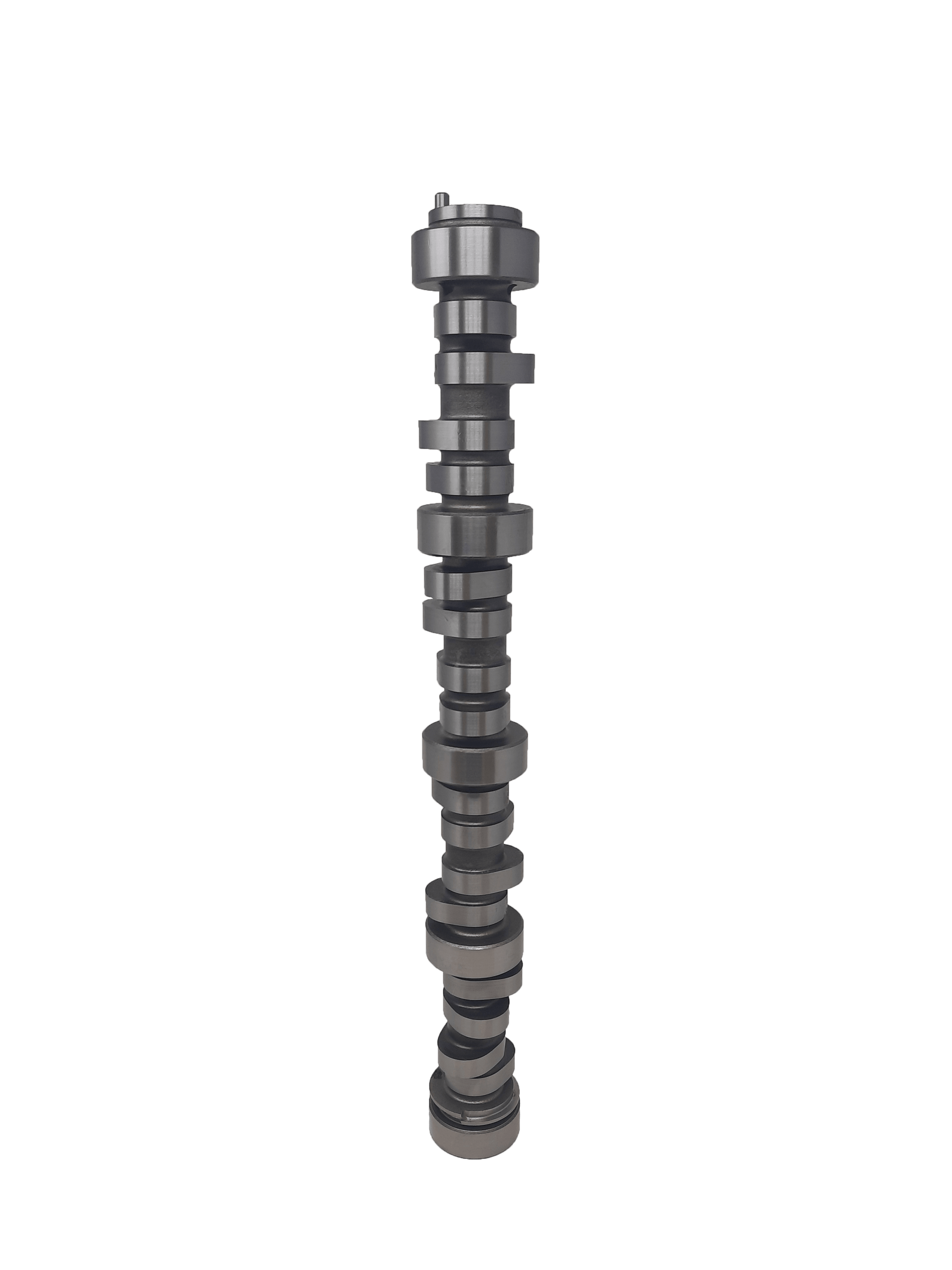

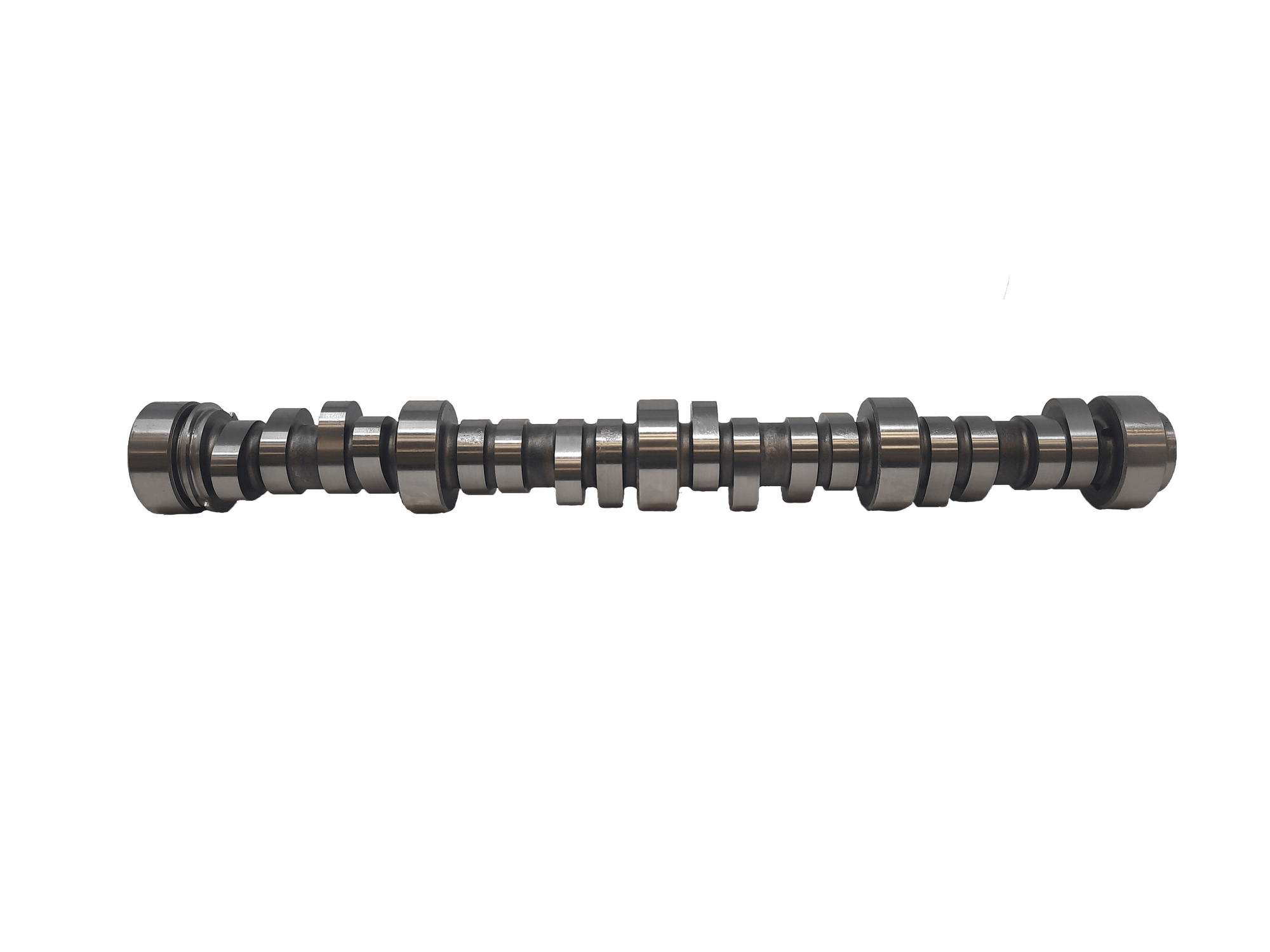

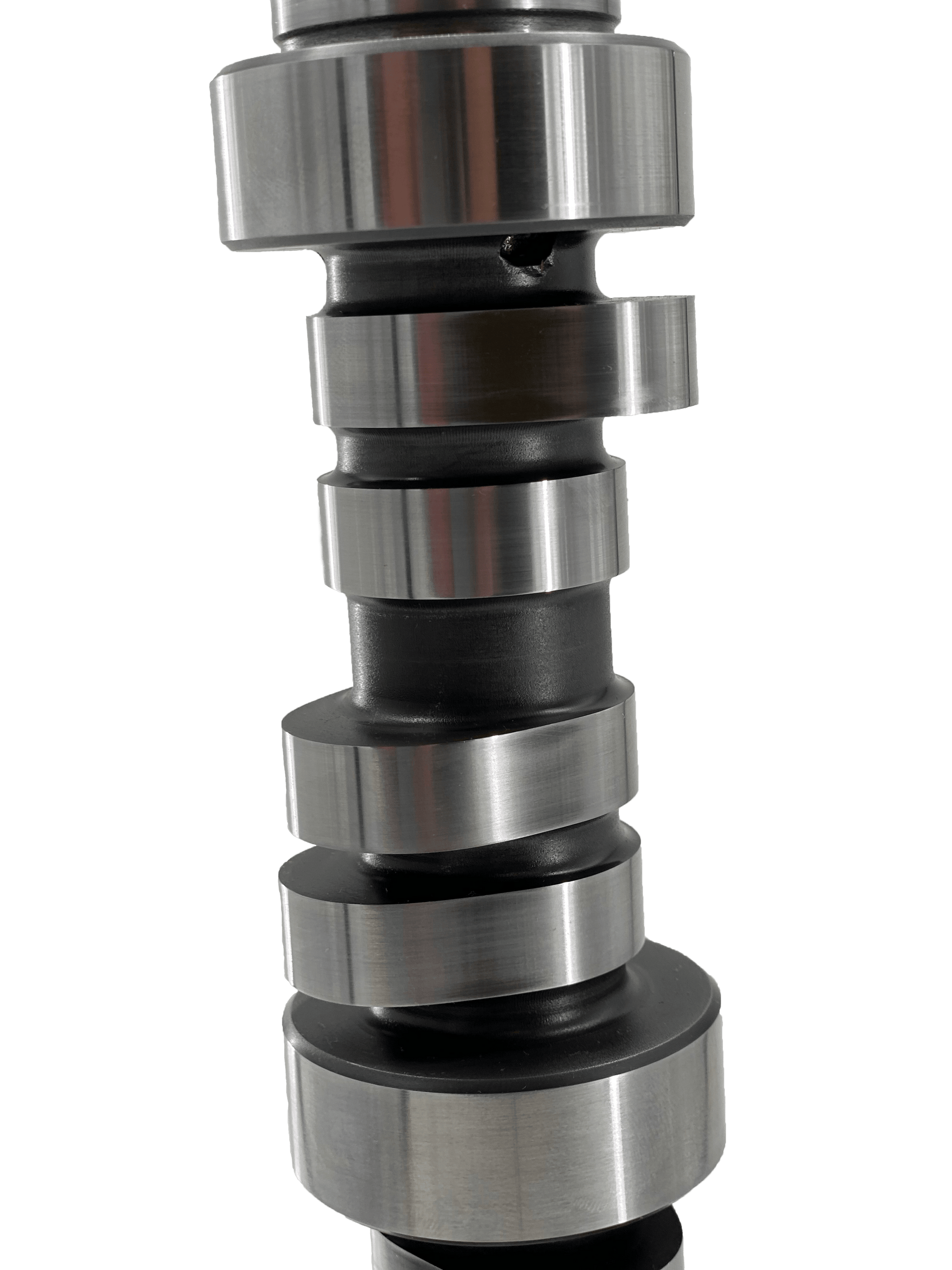

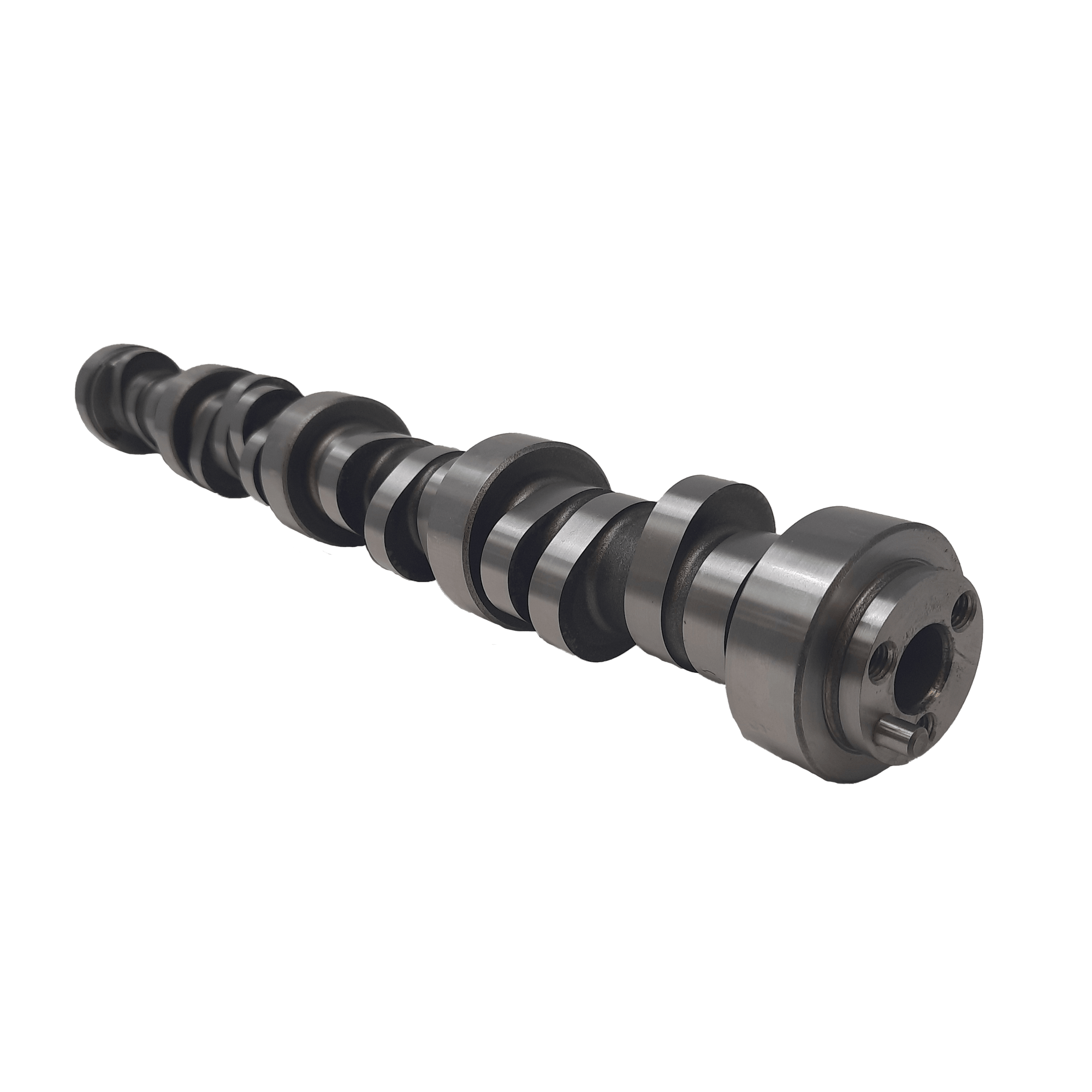

LS "SS Supercharger" Supercharged Camshaft 0.639/0639 Lift 236/256 Duration- Lobe Sep 117+7

LS Supercharged Camshaft 0.639/0639 Lift 236/256 Duration- Lobe Sep 117+7

Technical Specs

• Nickname: SS Supercharger

• Engine Type: LS
• Induction Type: Supercharged
• Sound Type:  Rough Choppy Idle
• Recommended Cubic Inch:  LSX 427 HO FI
• Application: Super Charged Street Car/Race
• Intake Lobe Duration @ 0.050: 236
• Exhaust Lobe Duration @ 0.050: 256
• Lobe Separation: 117+7
• Direct Injection Fuel Lobe: N/A

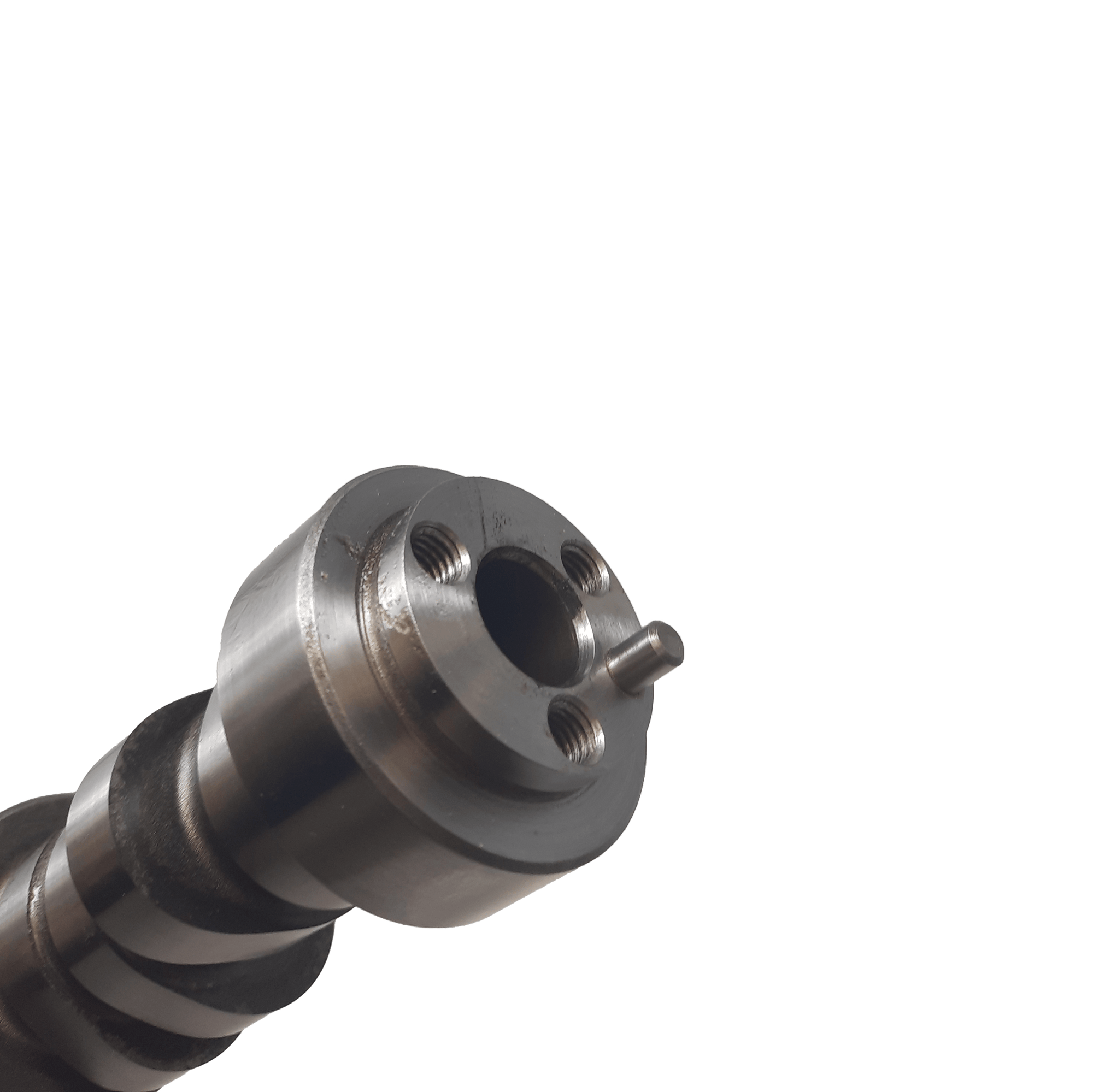

• Timing Gear Type: Three Bolt
• Intake Lobe Lift: 0.355"
• Exhaust Lobe Lift: 0.355"
• Intake Valve Lift w/ 1.7 rocker: 0.604"
• Exhaust Valve Lift w/ 1.7 rocker: 0.604"
• Intake Valve Lift w/ 1.8 rocker: 0.639"
• Exhaust Valve Lift w/1.8 rocker: 0.639"
• Rocker Arm Recommendation:  Factory w/ Trunnion Upgrade
• Valve Spring Recommendations: Mast Dual Spring Kit
