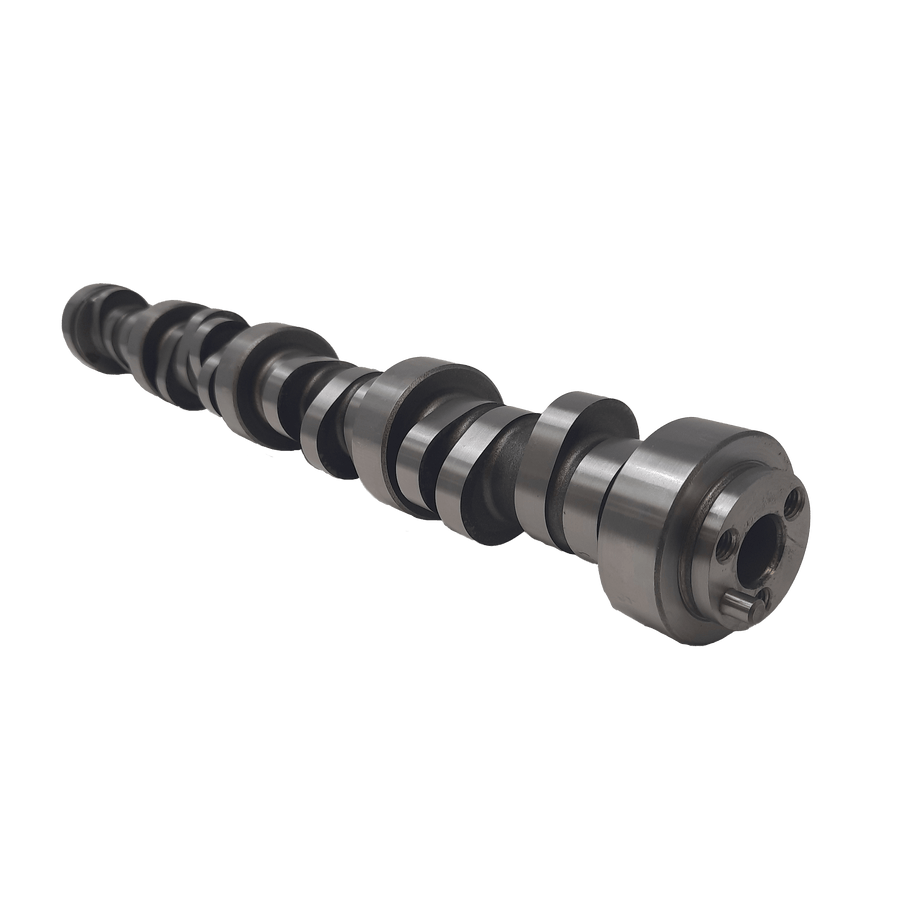

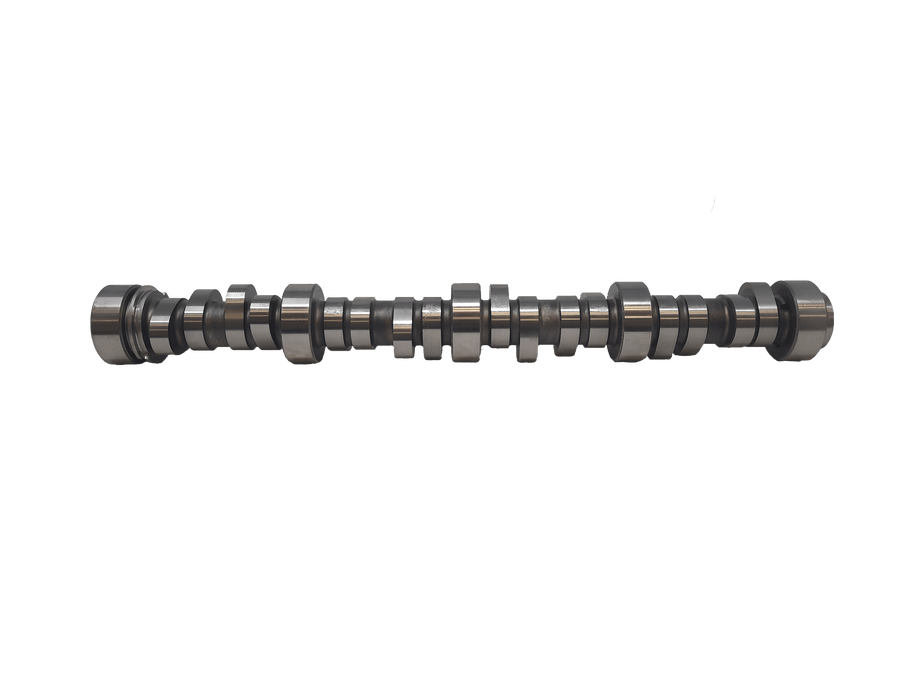

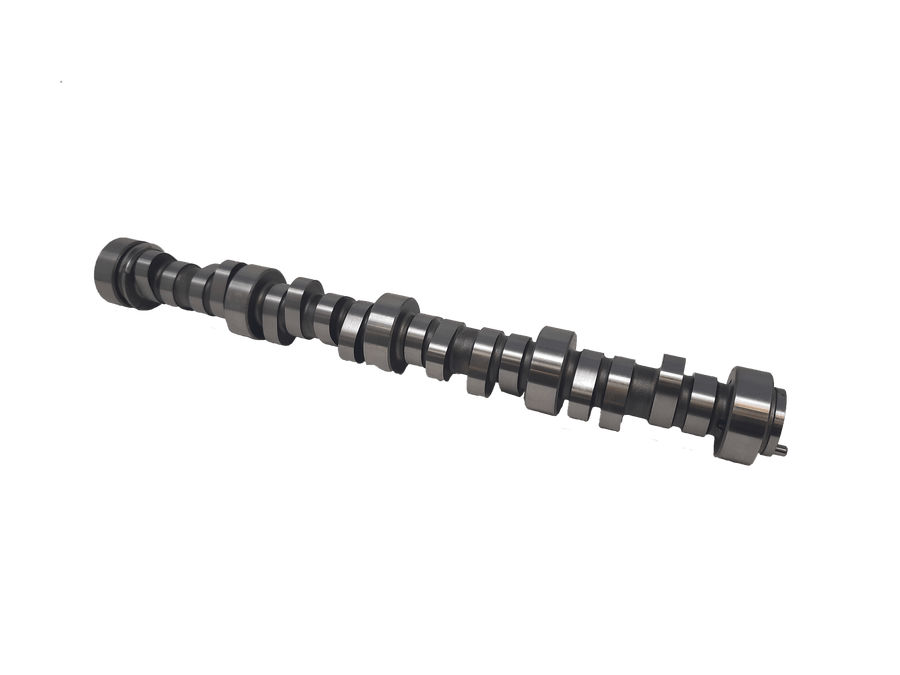

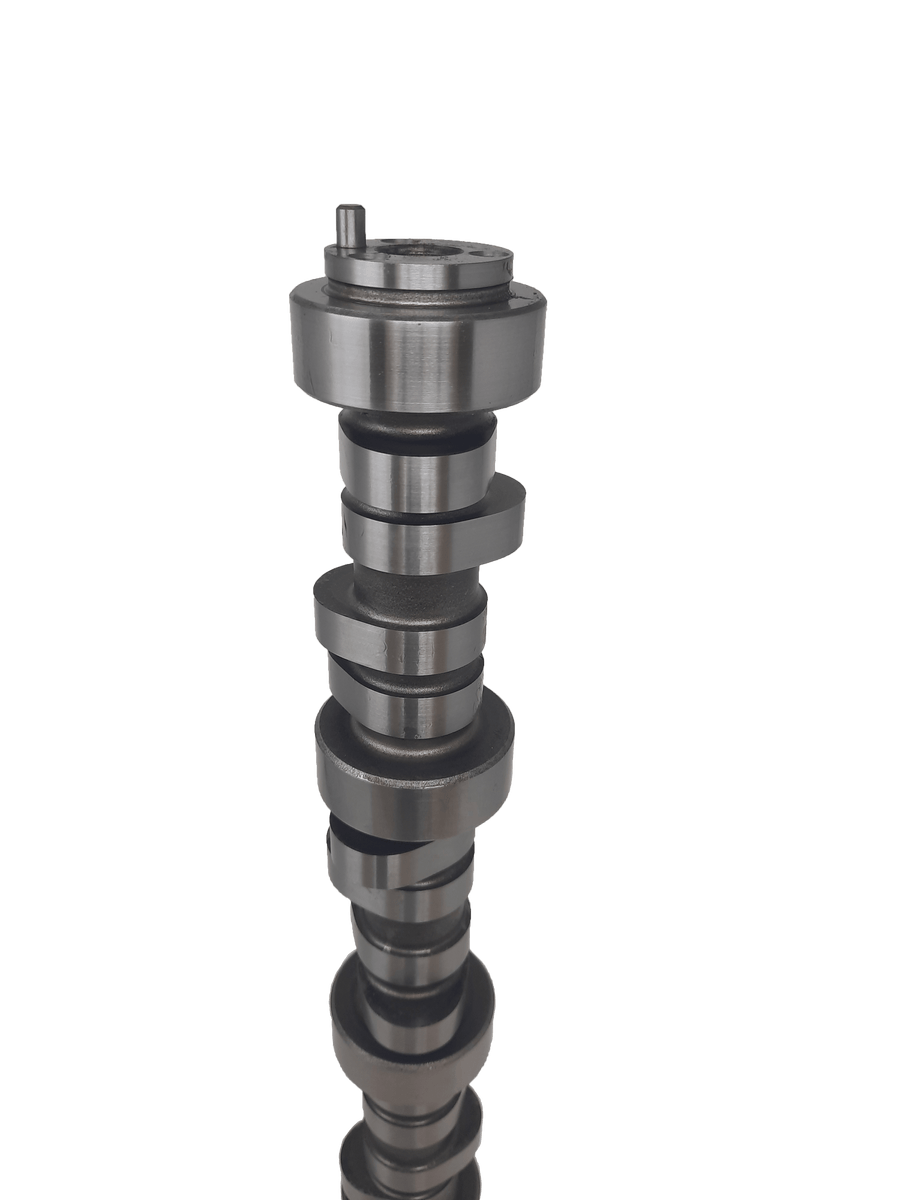

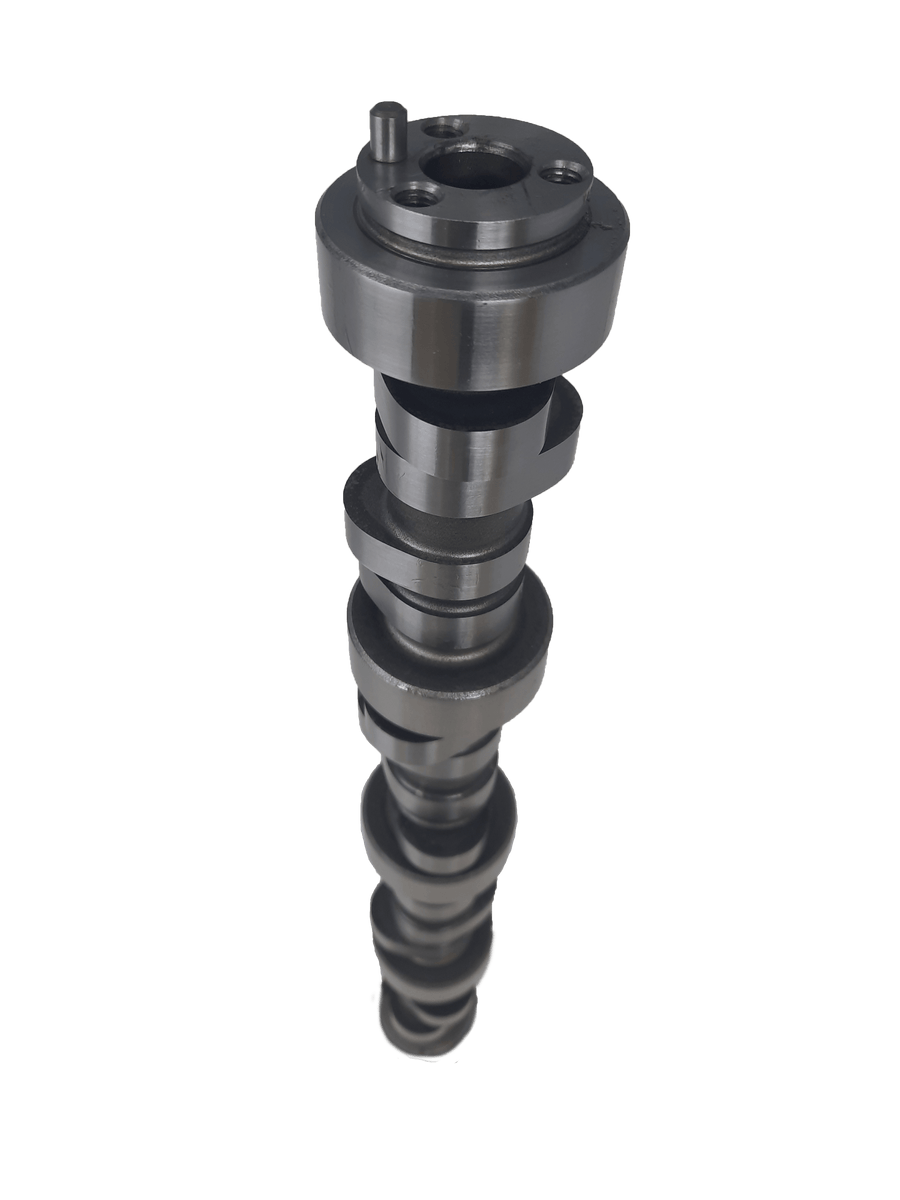

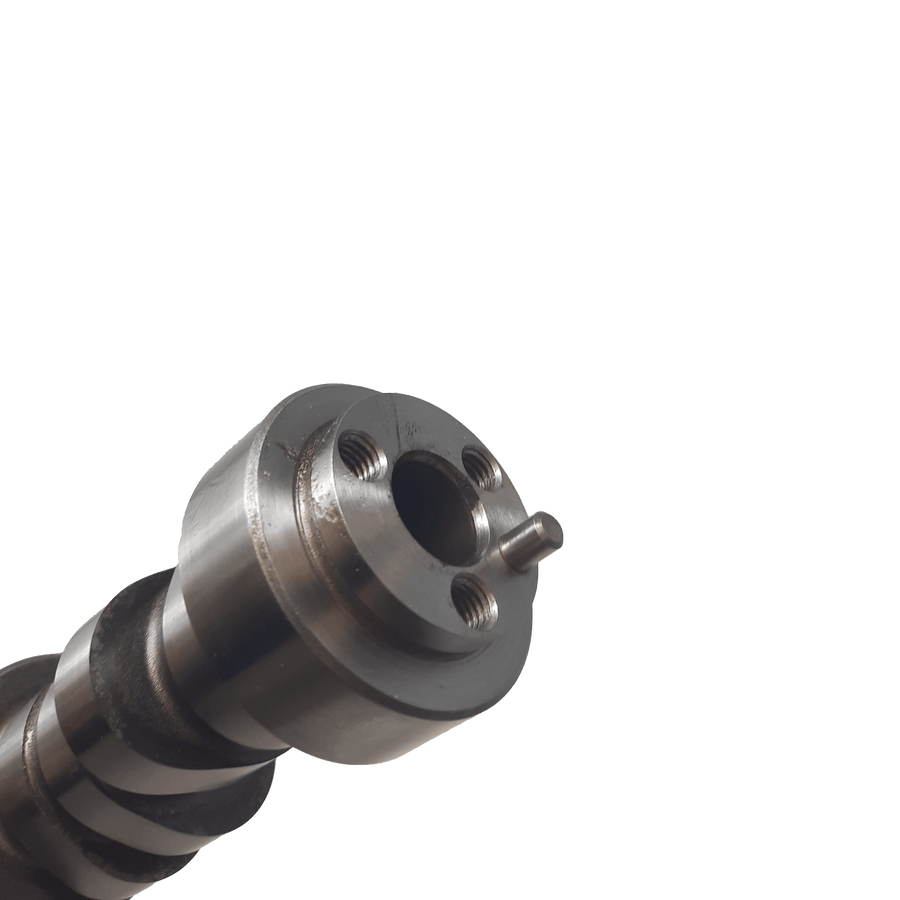

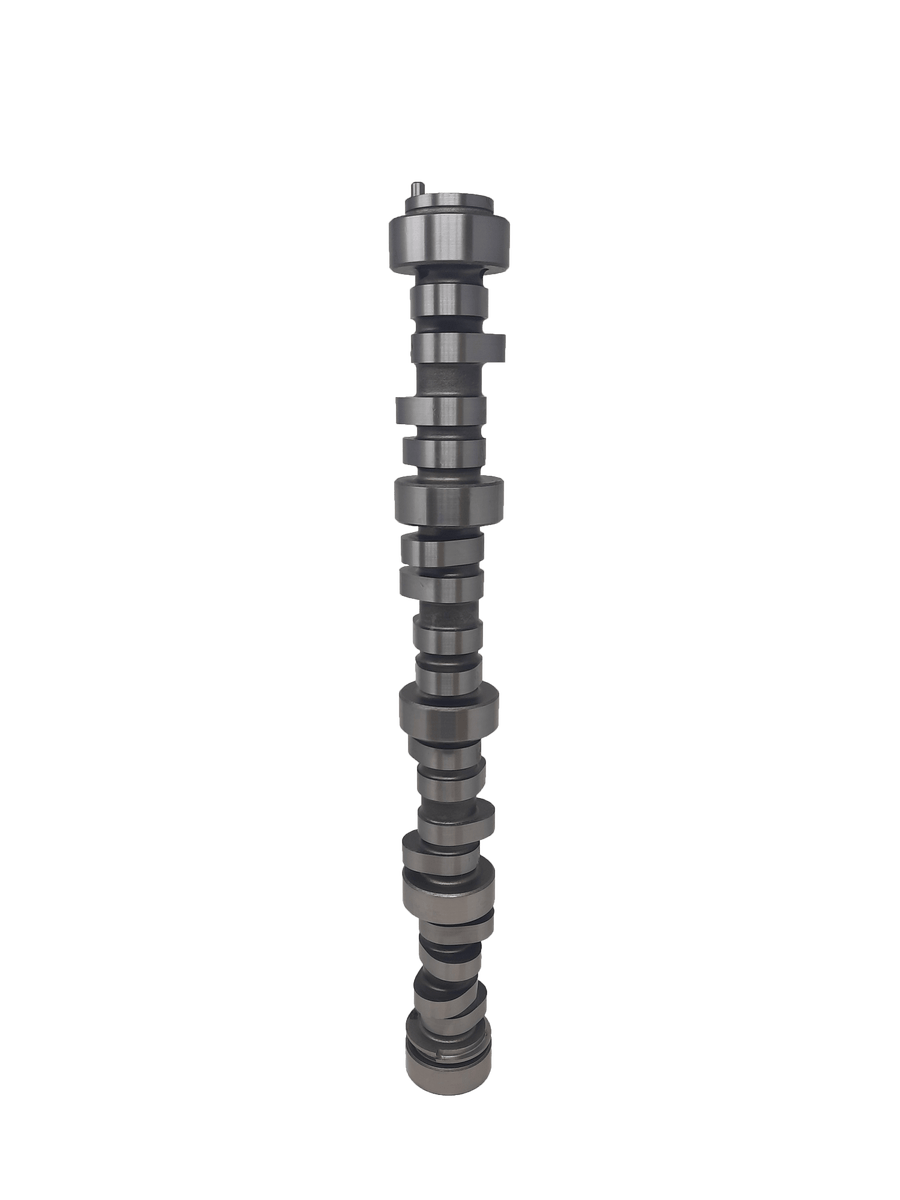

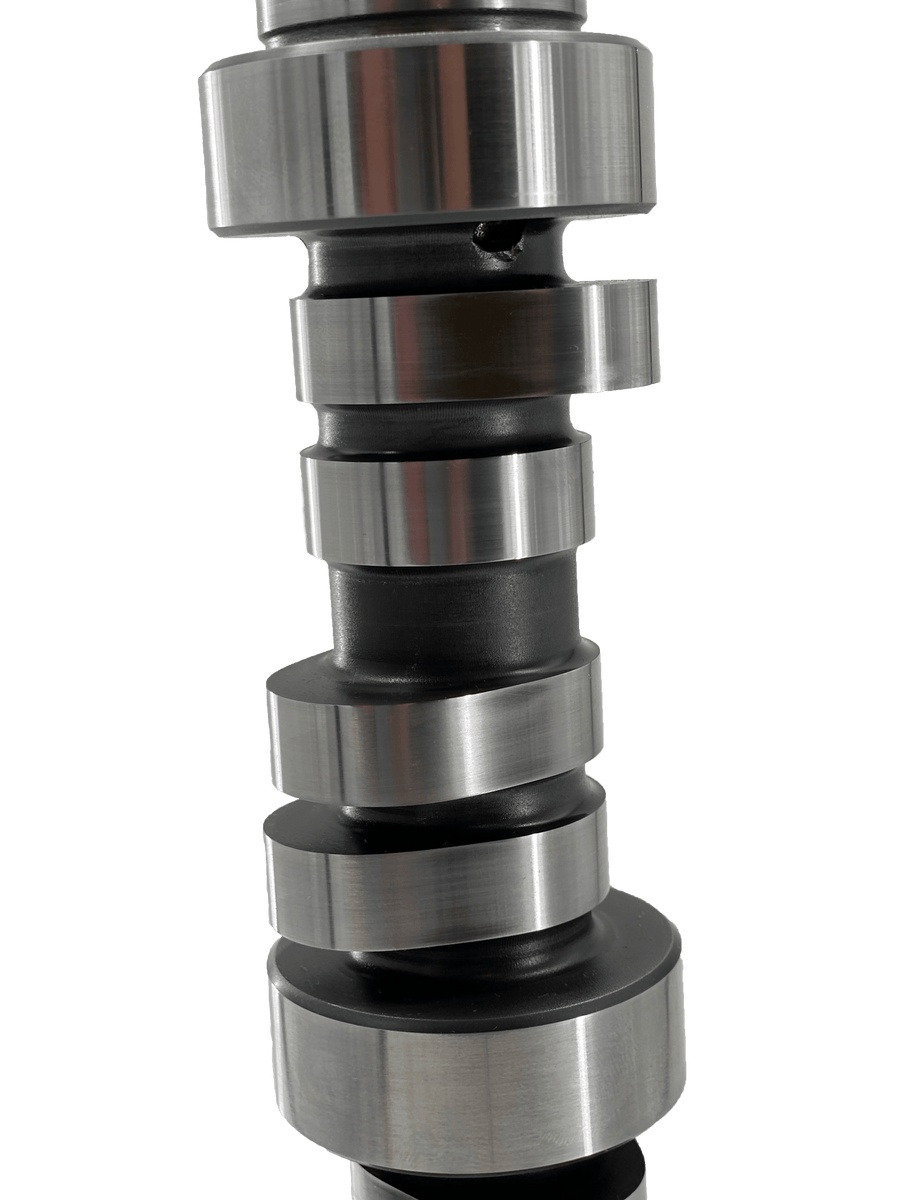

LS "Trash Can #2" Camshaft 0.626/0.626 Lift 220/232 Duration- Lobe Sep 110+2
LS Camshaft 0.626/0.626 Lift 220/232 Duration- Lobe Sep 110+2
Technical Specs
-
Nickname: Trash Can #2
-
Engine Type: LS
-
Induction Type: Naturally Aspirated
-
Sound Type: Mild Choppy Idle
-
Recommended Cubic Inch: 6.0/6.2
-
Application: Street Car
-
Intake Lobe Duration @ 0.050: 220
-
Exhaust Lobe Duration @ 0.050: 232
-
Lobe Separation: 110+2
-
Direct Injection Fuel Lobe: N/A
-
Timing Gear Type: Three Bolt
-
Intake Lobe Lift: 0.368"
-
Exhaust Lobe Lift: 0.368"
-
Intake Valve Lift w/ 1.7 rocker: 0.626"
-
Exhaust Valve Lift w/ 1.7 rocker: 0.626"
-
Intake Valve Lift w/ 1.8 rocker: 0.662"
-
Exhaust Valve Lift w/1.8 rocker: 0.662"
-
Rocker Arm Recommendation: Factory w/ Trunnion Upgrade
-
Valve Spring Recommendations: Mast Dual Spring Kit
