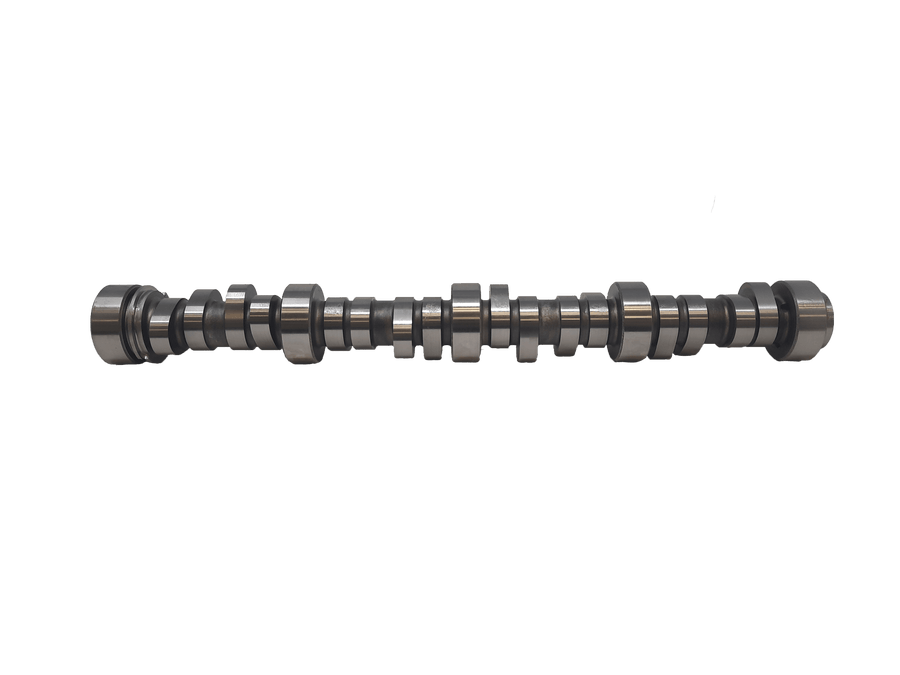

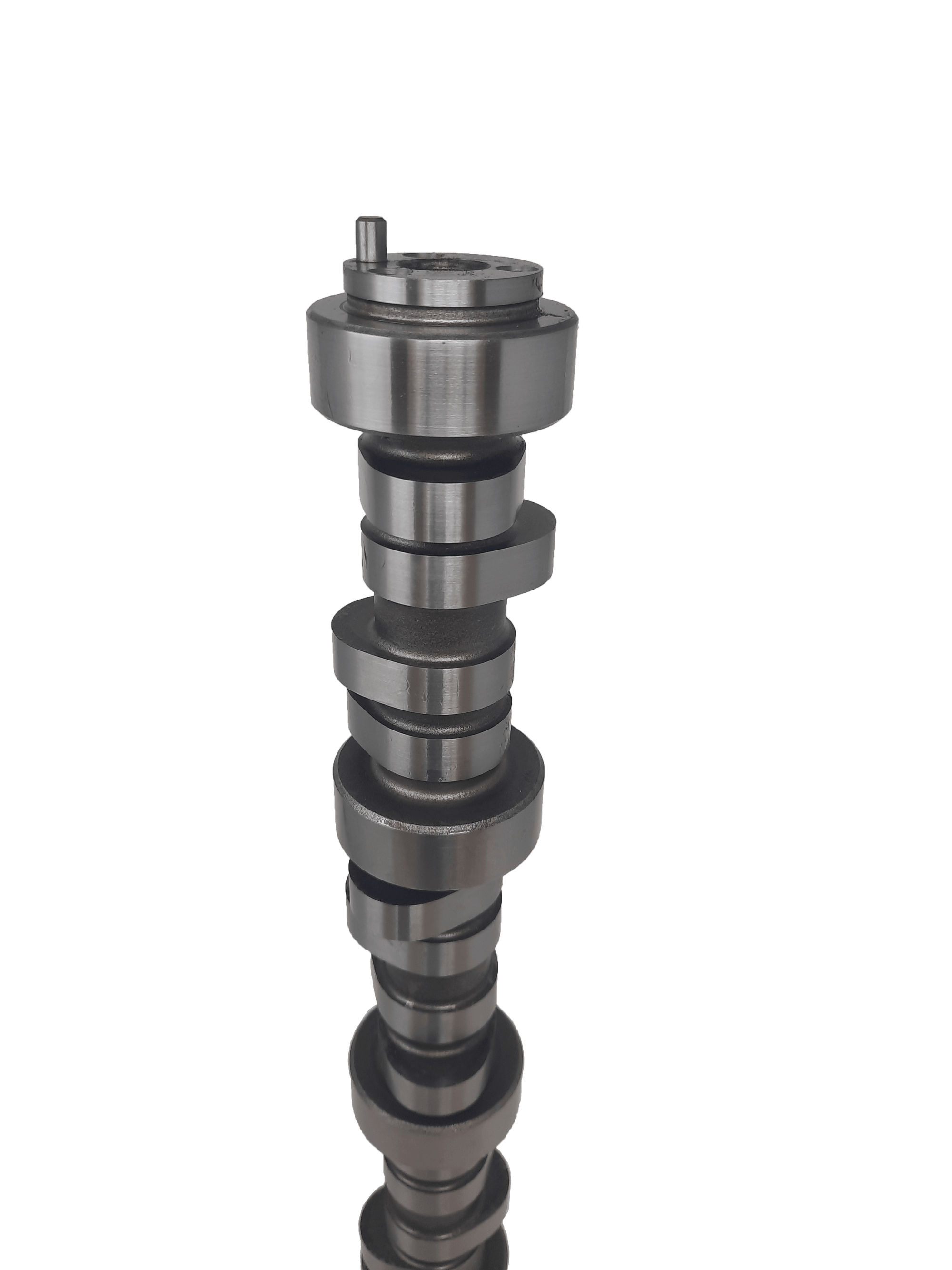

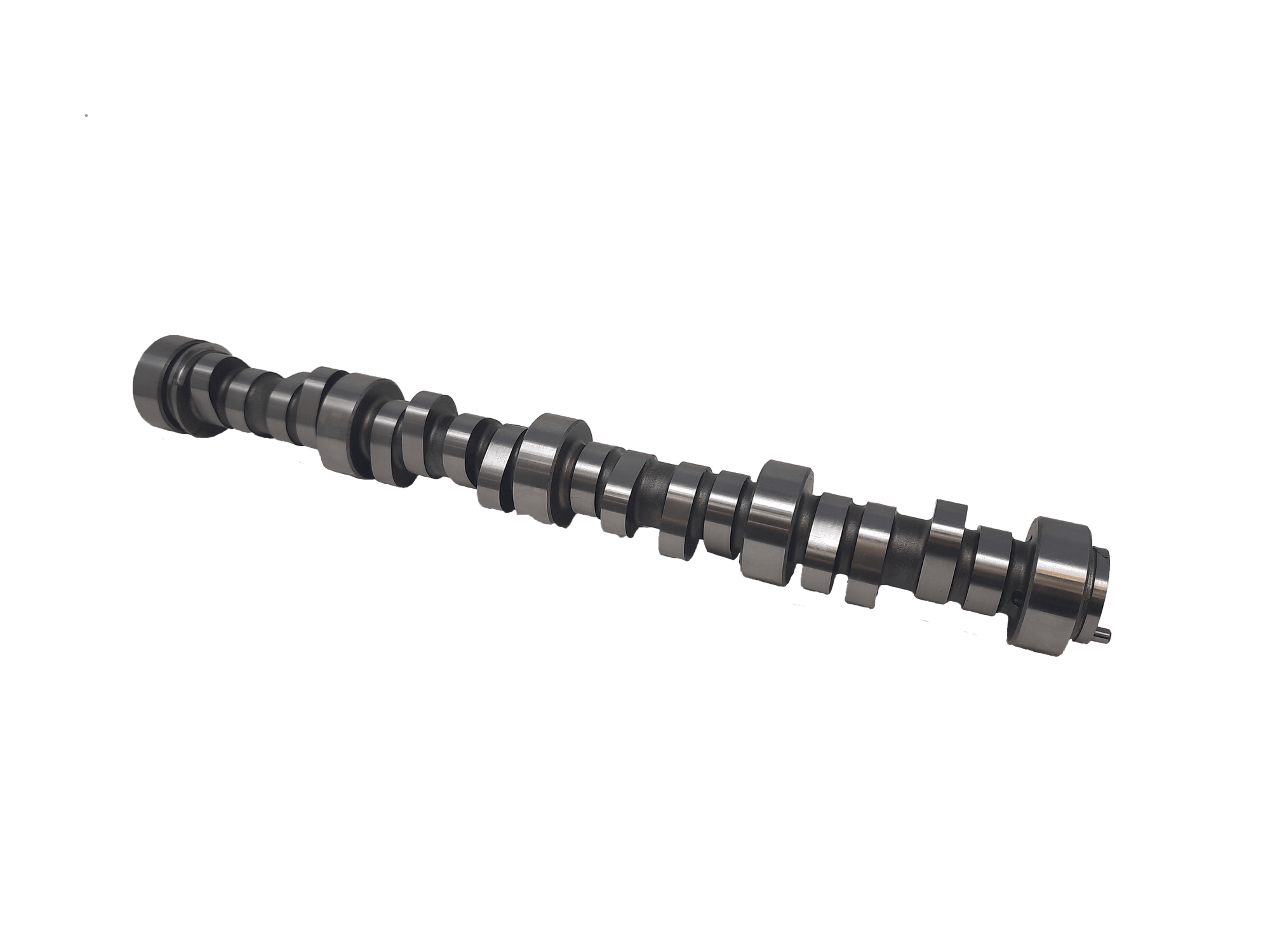

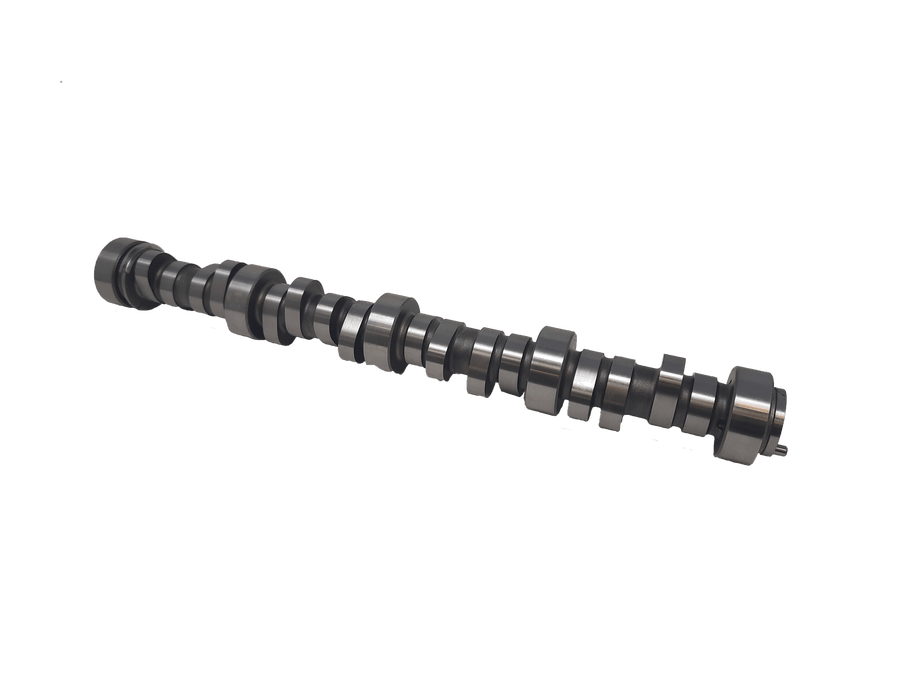

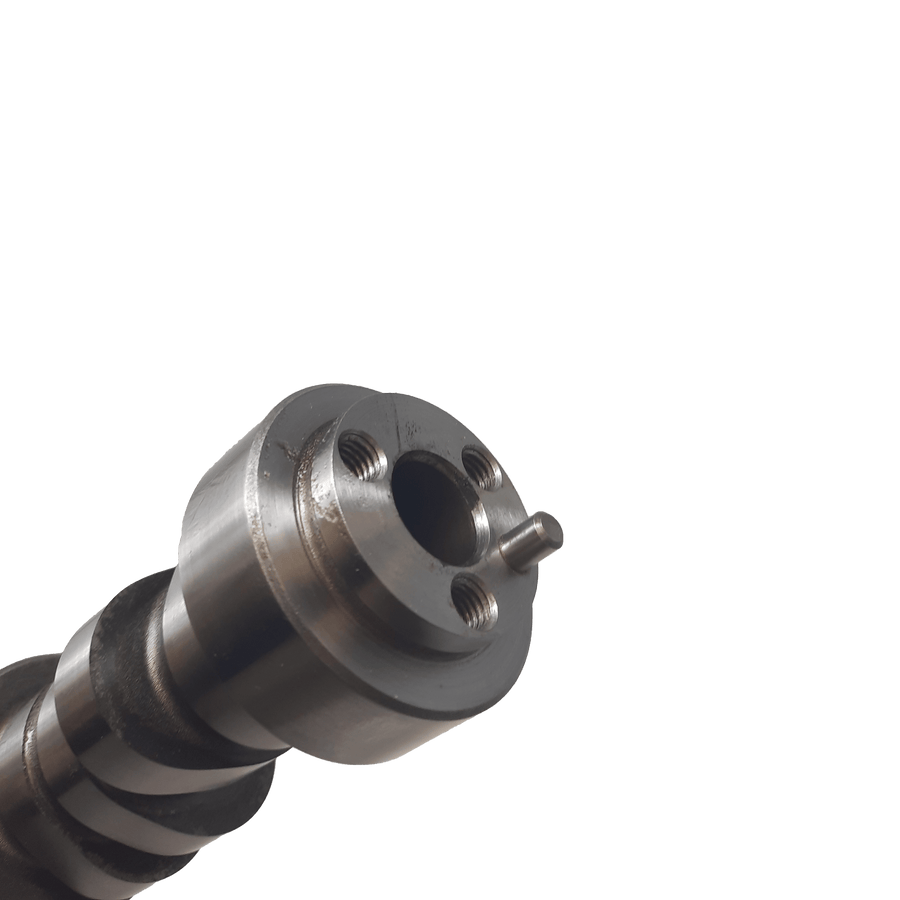

LS "Franks Redhot" Camshaft 0.639/0.639 Lift 222/234 Duration- Lobe Sep 112+2
LS "Franks Redhot" Camshaft 0.639/0.639 Lift 222/234 Duration- Lobe Sep 112+2
Mast Motorsports Camshaft LS "Franks Redhot" Camshaft 0.639/0.639 Lift 222/234 Duration- Lobe Sep 112+2

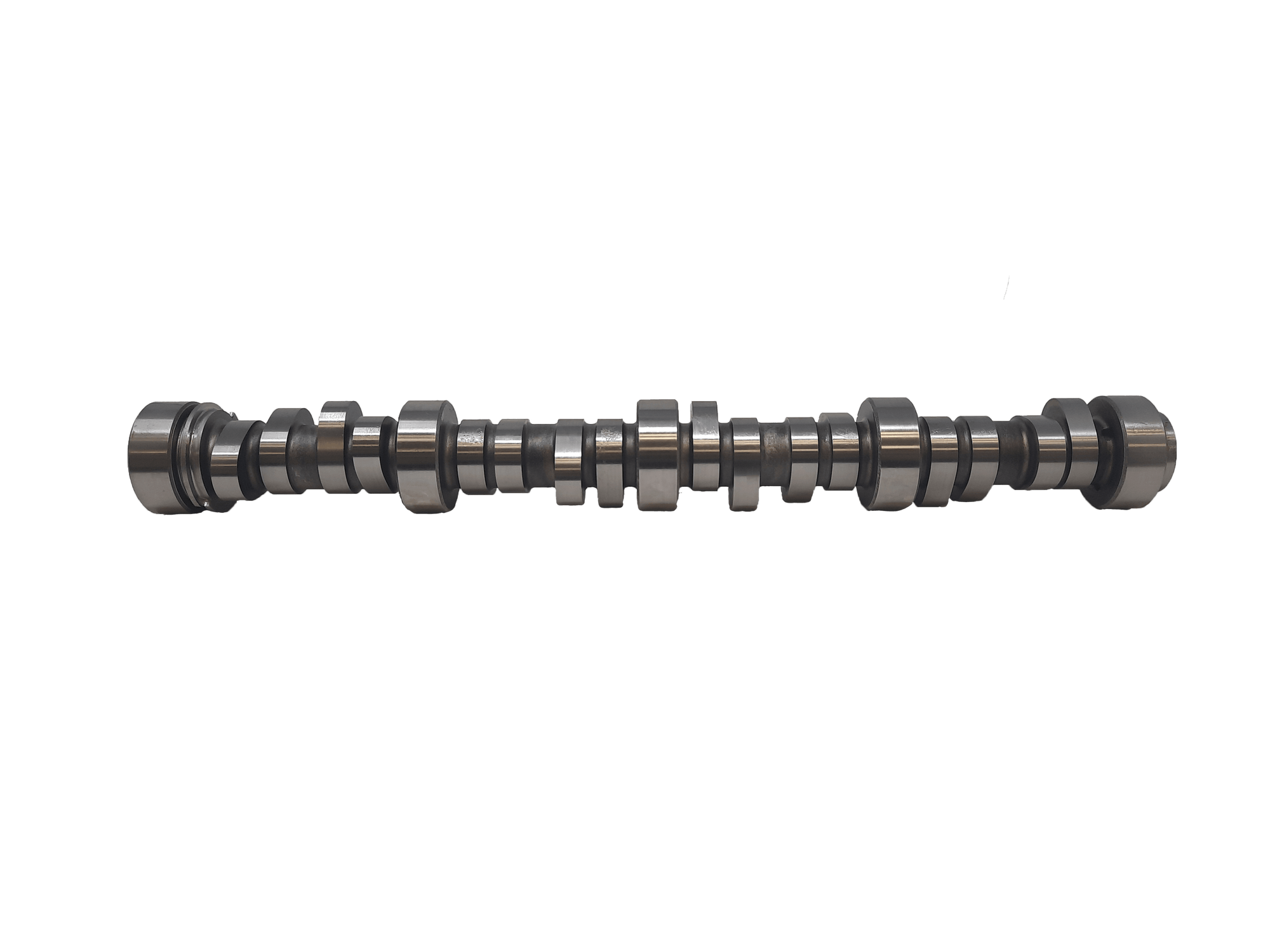

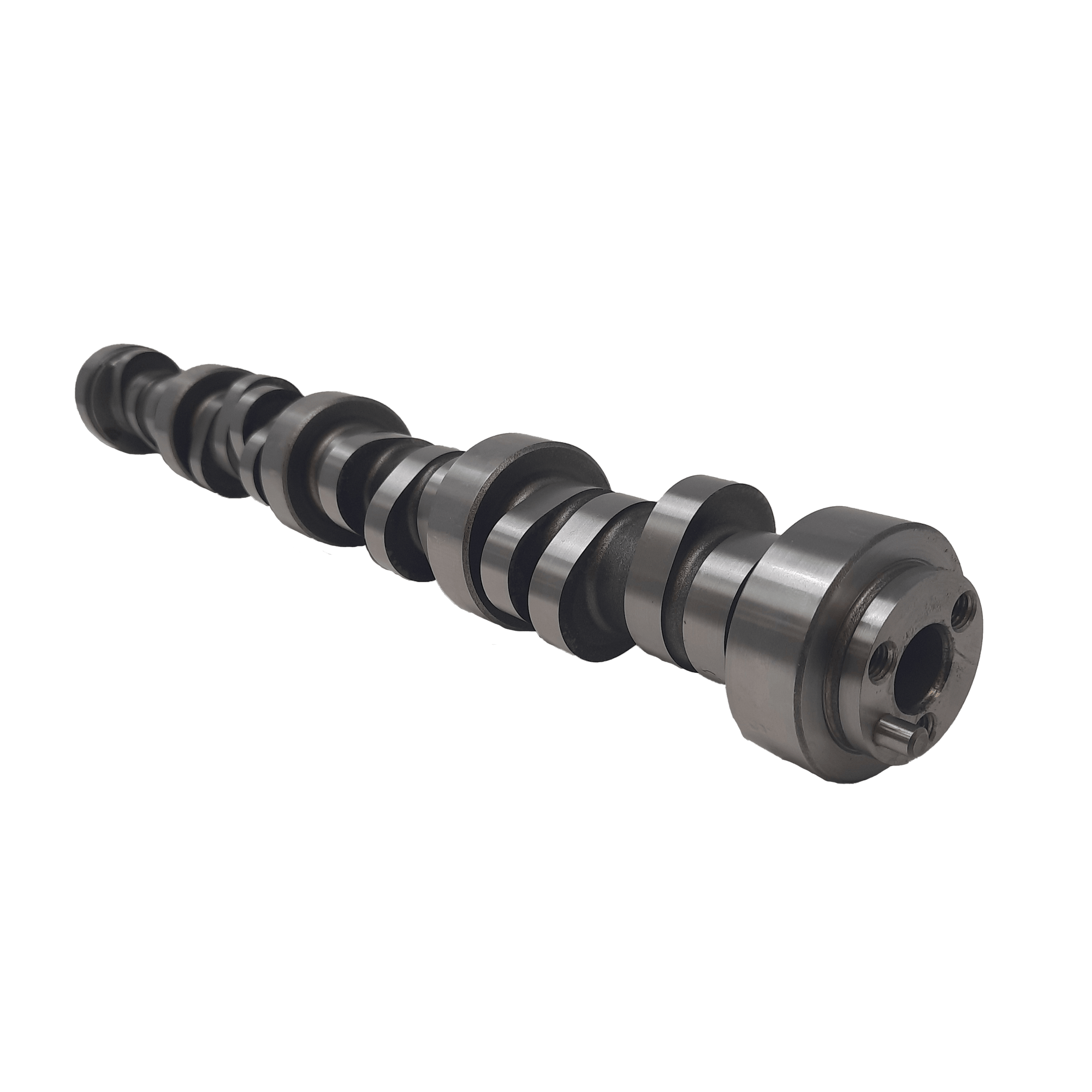

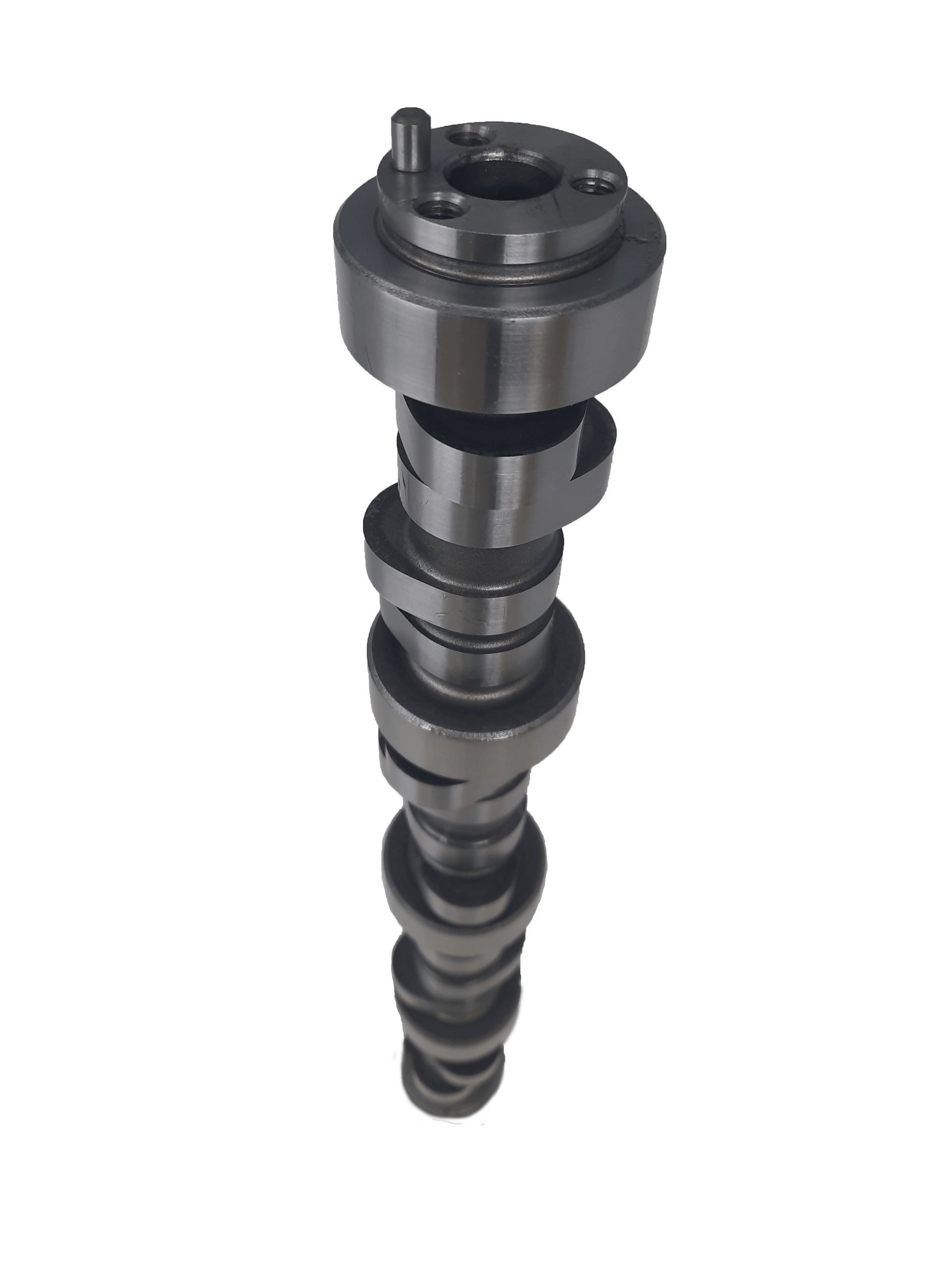

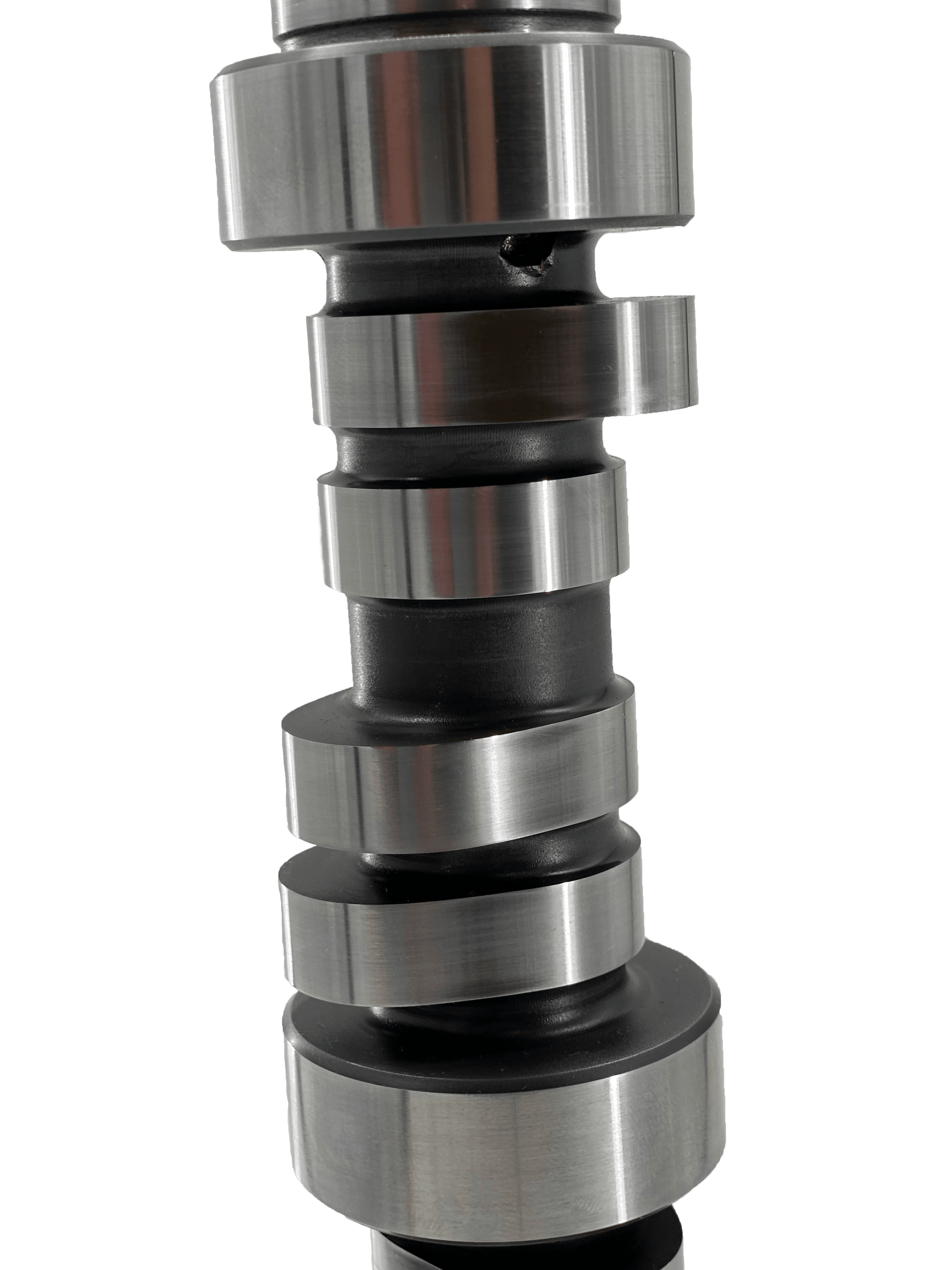

Mast Motorsports Camshaft LS "Franks Redhot" Camshaft .604/.604 Lift 222/234 Duration- Lobe Sep 112+2
Mast Motorsports Camshaft LS "Franks Redhot" Camshaft .604/.604 Lift 222/234 Duration- Lobe Sep 112+2
Mast Motorsports Camshaft LS "Franks Redhot" Camshaft .604/.604 Lift 222/234 Duration- Lobe Sep 112+2
Mast Motorsports Camshaft LS "Franks Redhot" Camshaft .604/.604 Lift 222/234 Duration- Lobe Sep 112+2
Mast Motorsports Camshaft LS "Franks Redhot" Camshaft .604/.604 Lift 222/234 Duration- Lobe Sep 112+2
$ 420.00

LS "Franks Redhot" Camshaft 0.639/0.639 Lift 222/234 Duration- Lobe Sep 112+2

+

Only left in stock

LS Franks Redhot Camshaft 0.639/0.639 Lift 222/234 Duration- Lobe Sep 112+2

Technical Specs

  • Nickname: Franks Redhot
  • Engine Type: LS
  • Induction Type: Naturally Aspirated & Nitrous
  • Sound Type:  Mild Choppy Idle
  • Recommended Engine Size:  5.3/5.7/6.0/6.2/6.8
  • Application: Street Car/Truck
  • Intake Lobe Duration @ 0.050: 222
  • Exhaust Lobe Duration @ 0.050: 234
  • Lobe Separation: 112+2
  • Direct Injection Fuel Lobe: N/A
  • Timing Gear Type: Three Bolt
  • Intake Lobe Lift: 0.353"
  • Exhaust Lobe Lift: 0.353"
  • Intake Valve Lift w/ 1.7 rocker: 0.604"
  • Exhaust Valve Lift w/ 1.7 rocker: 0.604"
  • Intake Valve Lift w/ 1.8 rocker: 0.639"
  • Exhaust Valve Lift w/1.8 rocker: 0.639"
  • Rocker Arm Recommendation:  Factory w/ Trunnion Upgrade
  • Valve Spring Recommendations: Mast Dual Spring Kit
