Displacement: 466 Cubic Inches
Compression Ratio: 14:1
Bore x Stroke: 4.160 x 4.250
Rev Limit: 8500 RPM
Crank: Callies Dragonslayer
Rods: Callies Ultra H-Beam
Pistons: Diamond Custom 2618 Alloy
Cam: Mast 3-Bolt Core Cam
Heads: Mast Black Label LS7 305 Heads
Intake: Mast LS7 4500 Single Plane EFI
Valve Springs: PSI
*All hp numbers will be within 2% of the advertised number.
Mast Motorsports Handbuilt LS engines feature the best components and are assembled by professional machinist. All handbuilt engines feature ARP Main Studs, ARP Head Bolts or Studs and a balanced and blueprinted block.

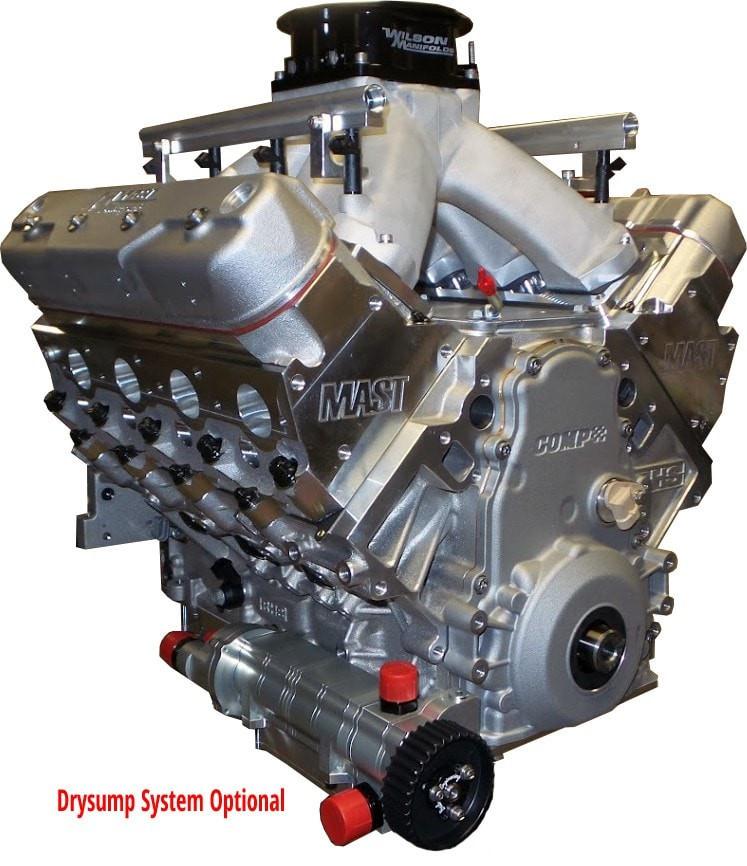

The DART 466 Black Label's heart and soul is the new 4.160 aluminum block. This monster DART has a Mast Motorsports engineered camshaft that is custom ground on a Mast Motorsports billet cam core. The 466 foundation is a honed and decked DART aluminum block with a 4.250” forged Callies Dragonslayer rotating assembly with Diamond pistons that is topped off with Mast Black Label LS7 305 heads and a Mast Single Plane LS7 4500 Intake. ARP fasteners are used throughout and Smith Brothers pushrods ride on Jesel solid roller lifters. The DART 466 Black Label is at the top of a diverse line of Mast Motorsports handbuilt Race Engines. The DART 466 Black Label Race Engine peaks at the 850 horsepower mark and is one of the most powerful complete naturally aspirated turnkey LS crate engines available on the market today.
