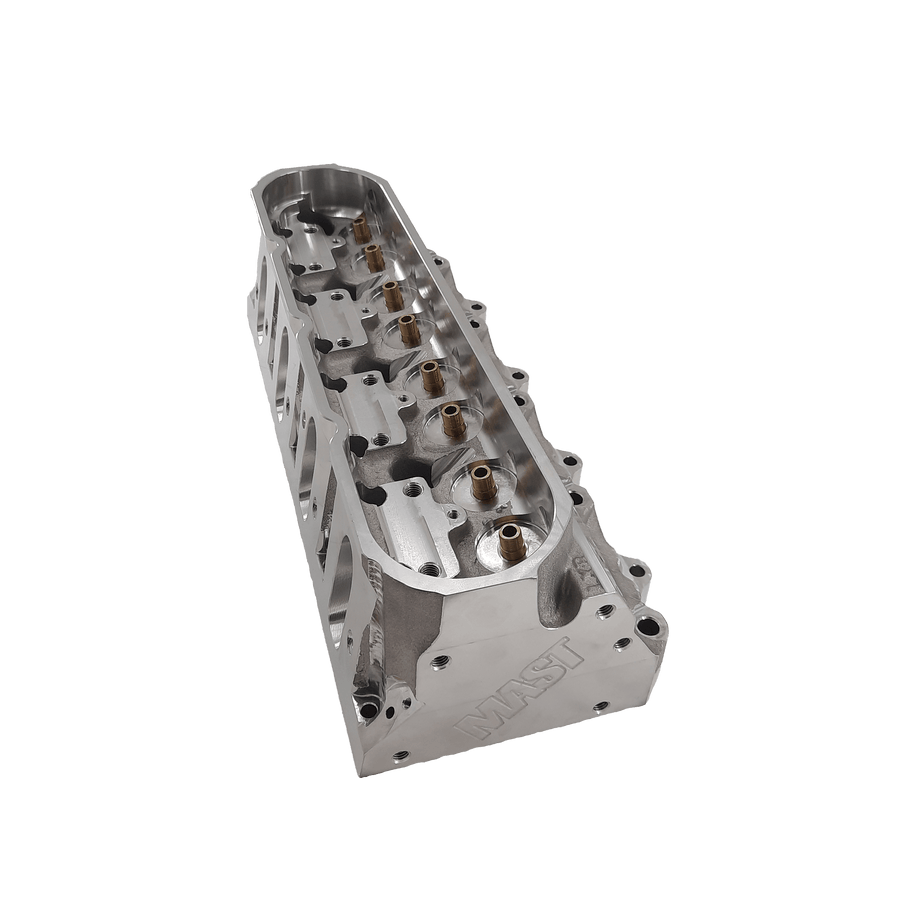

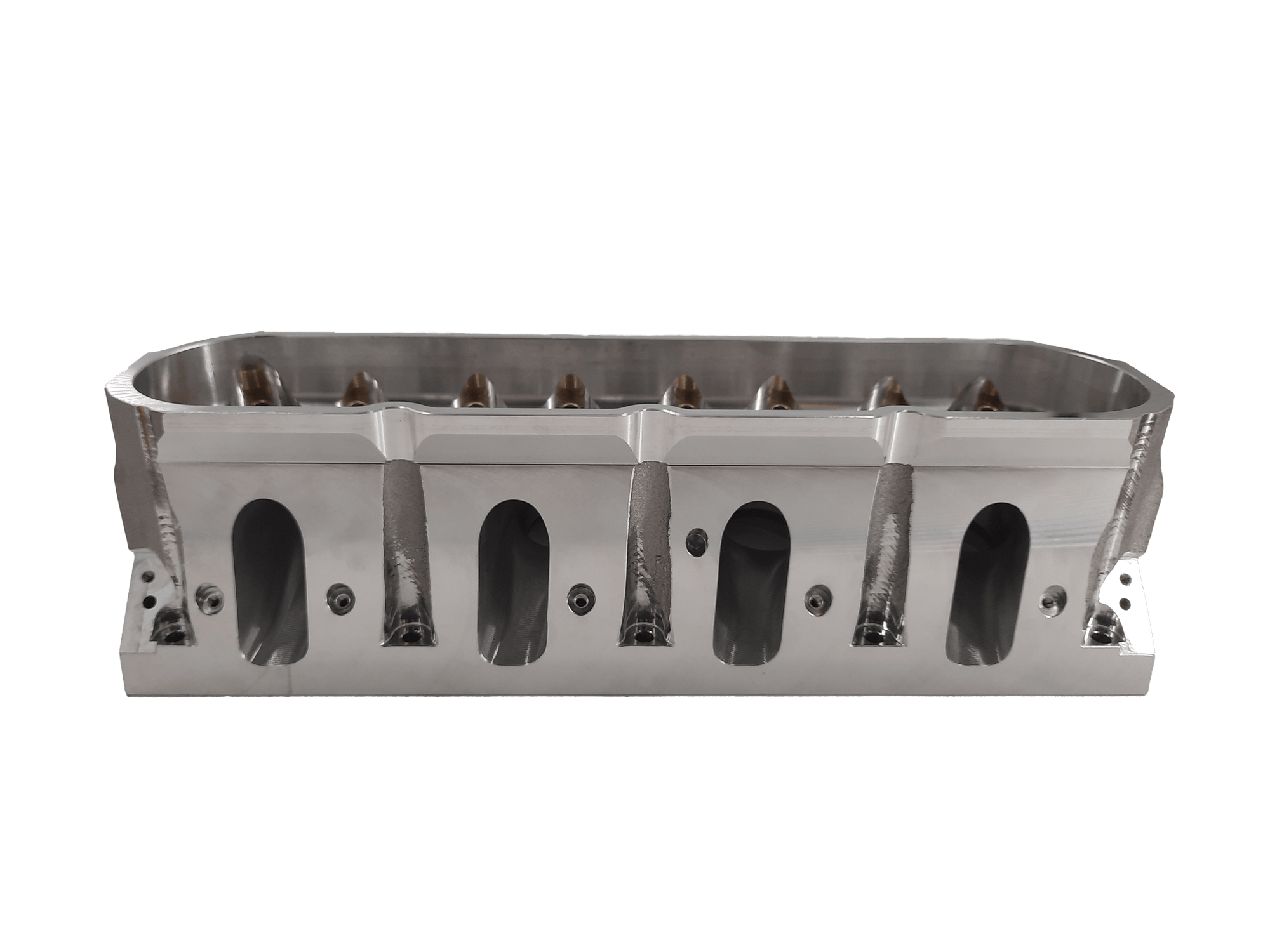

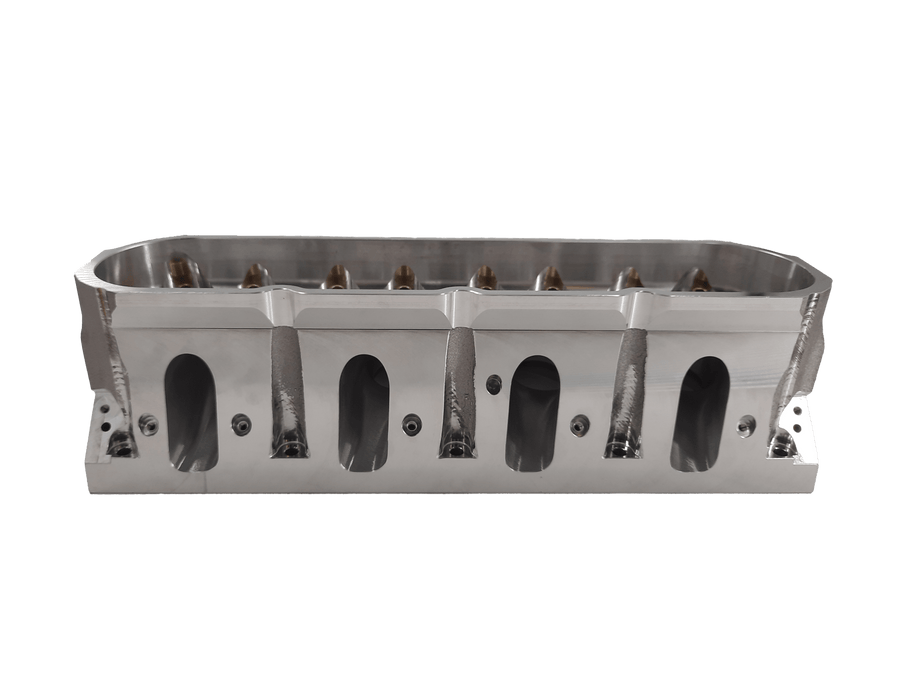

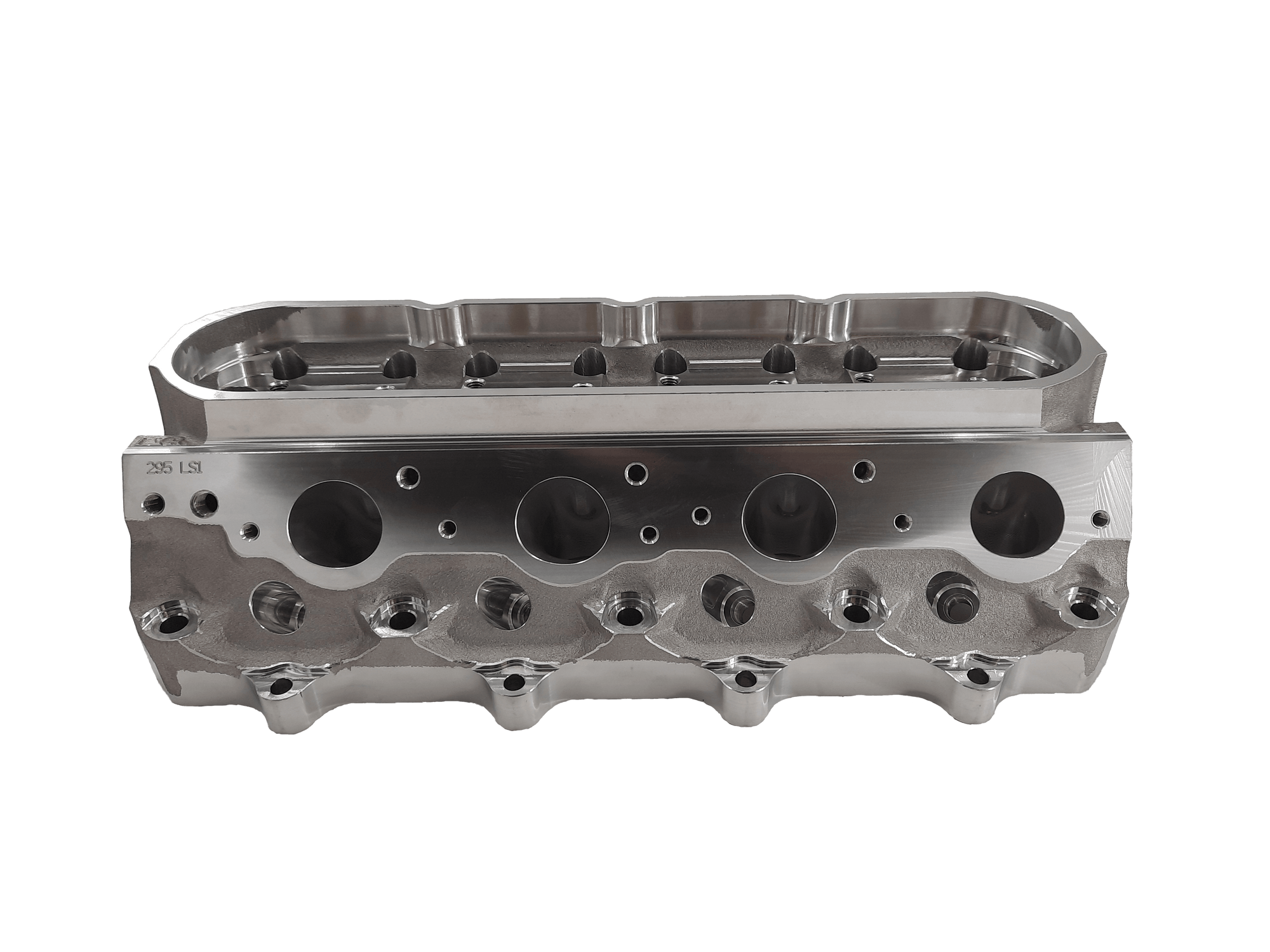

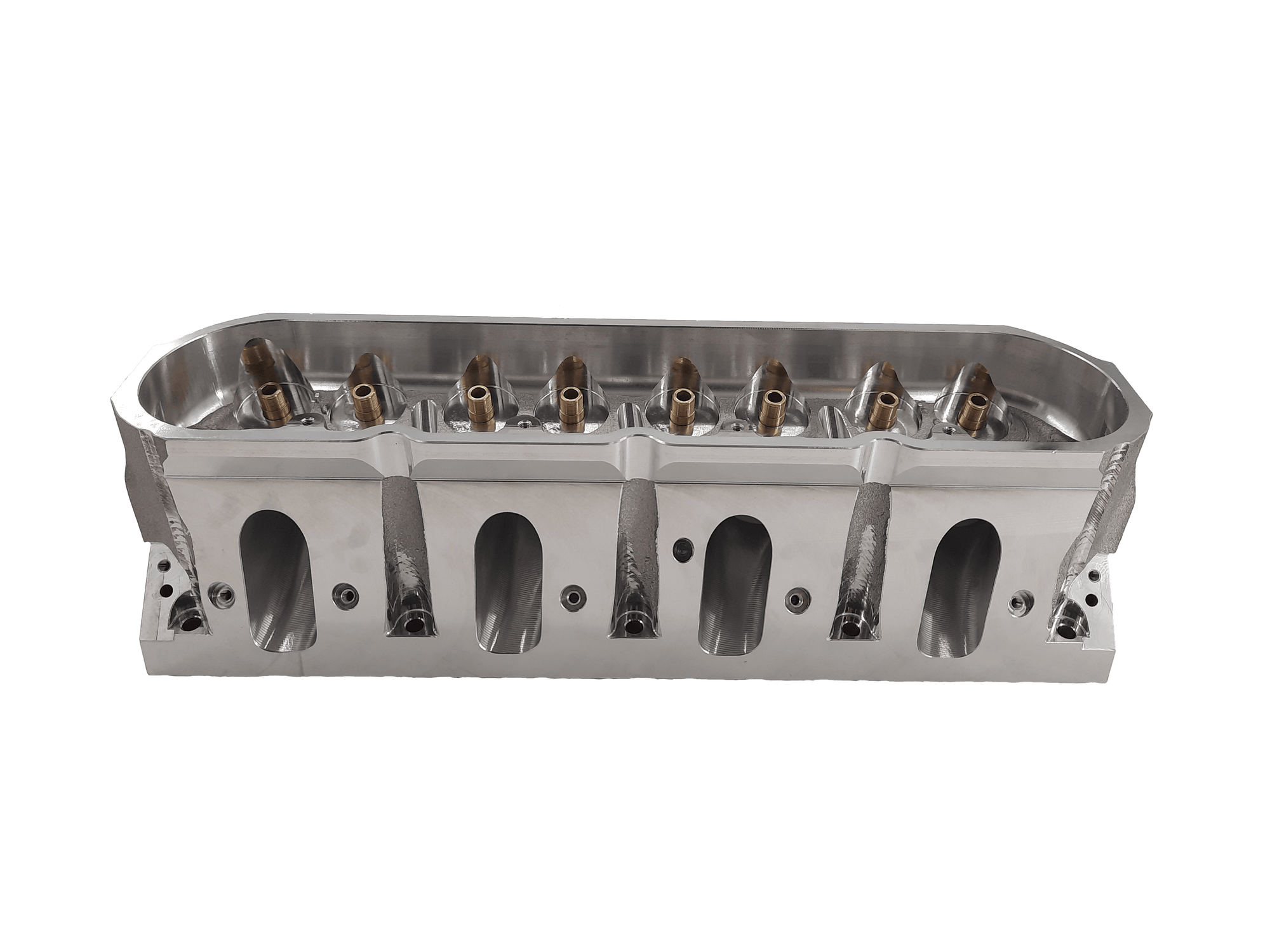

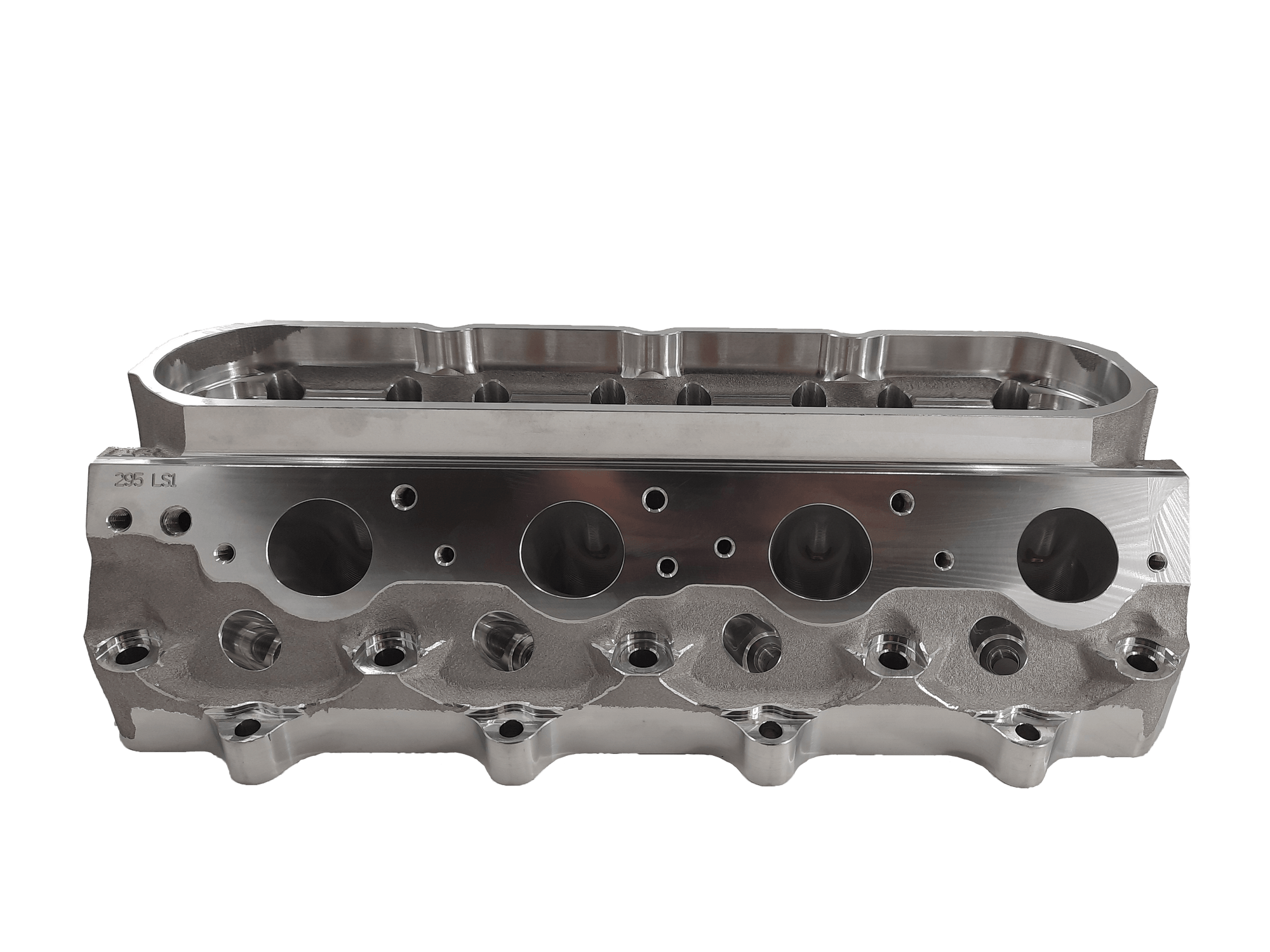

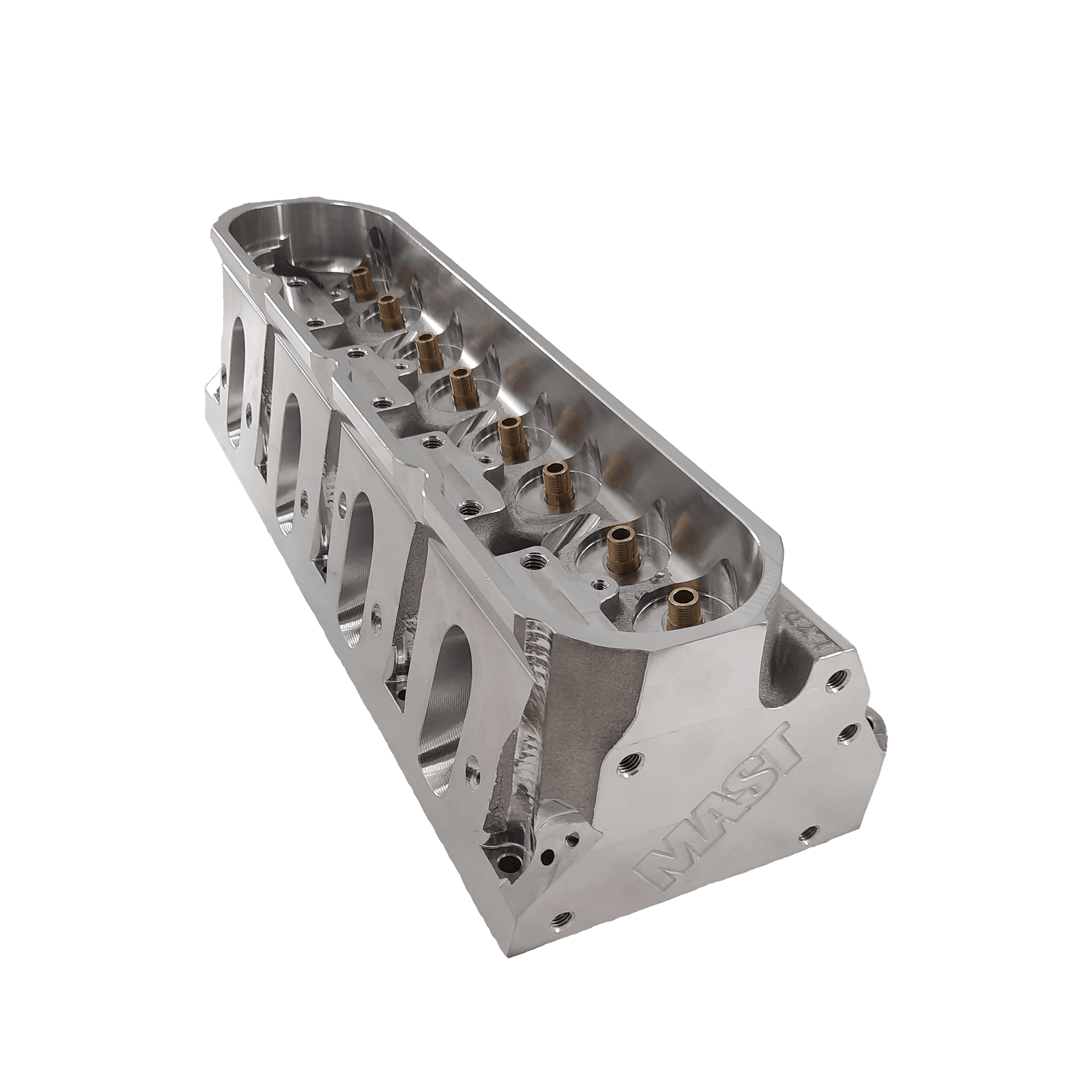

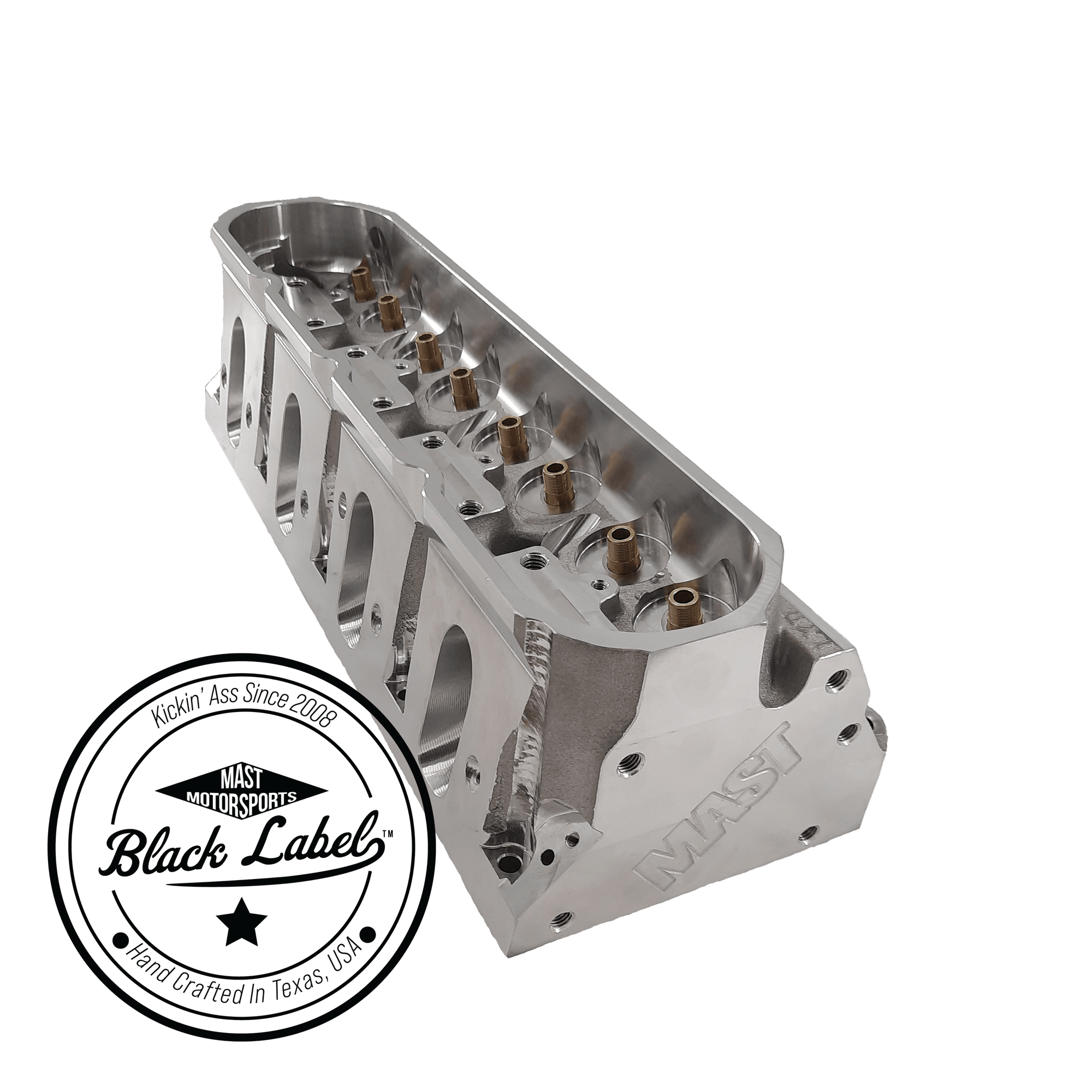

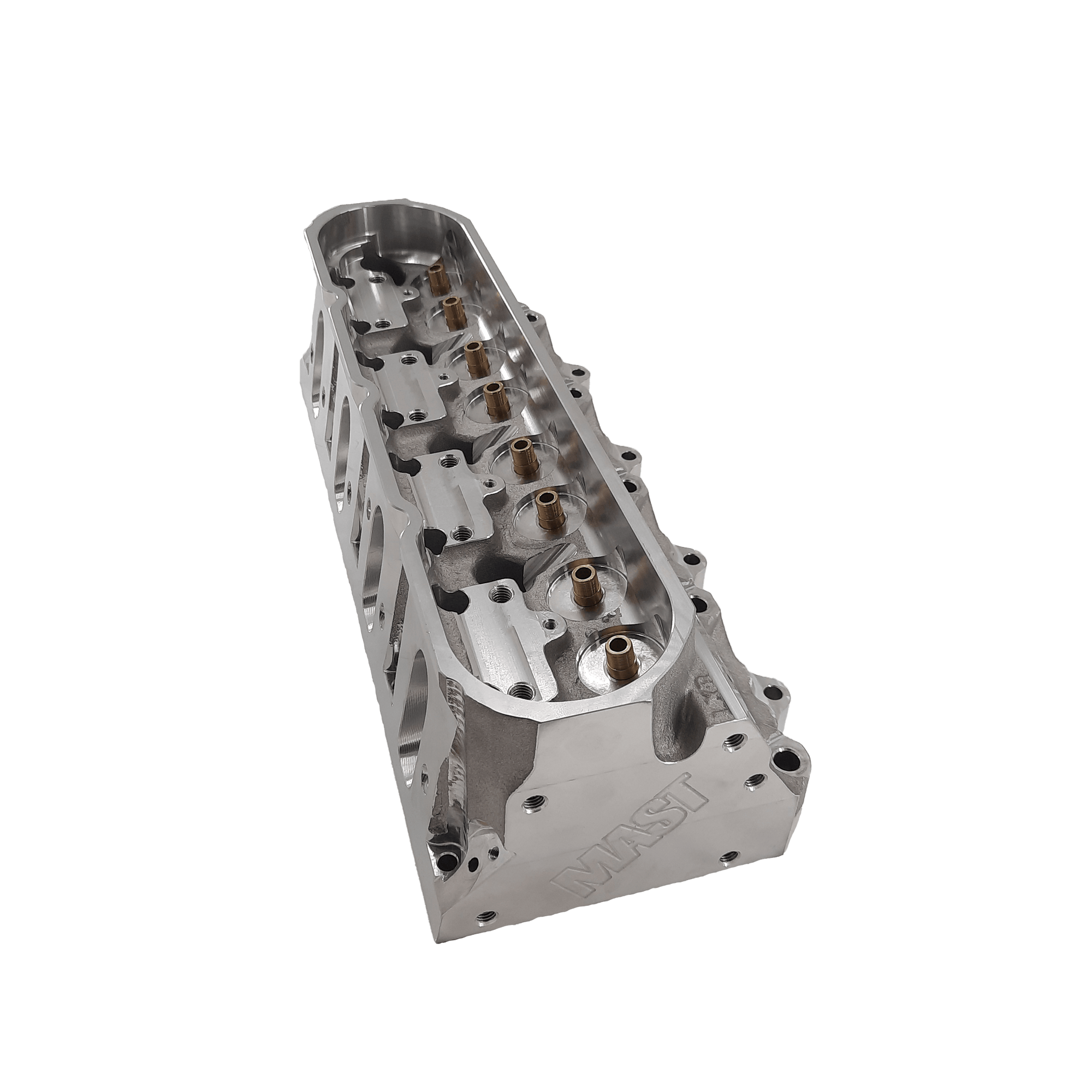

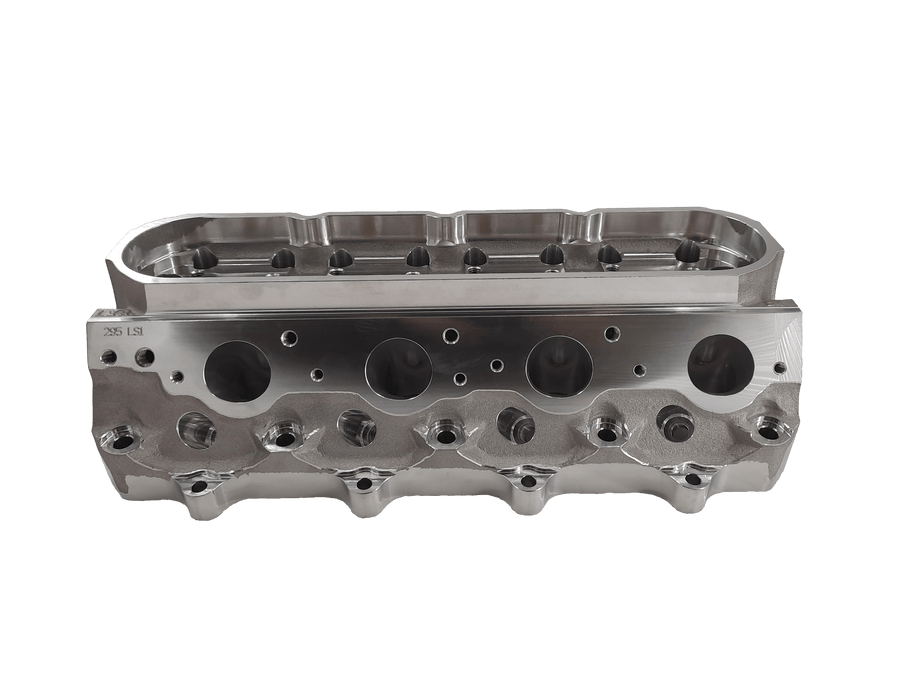

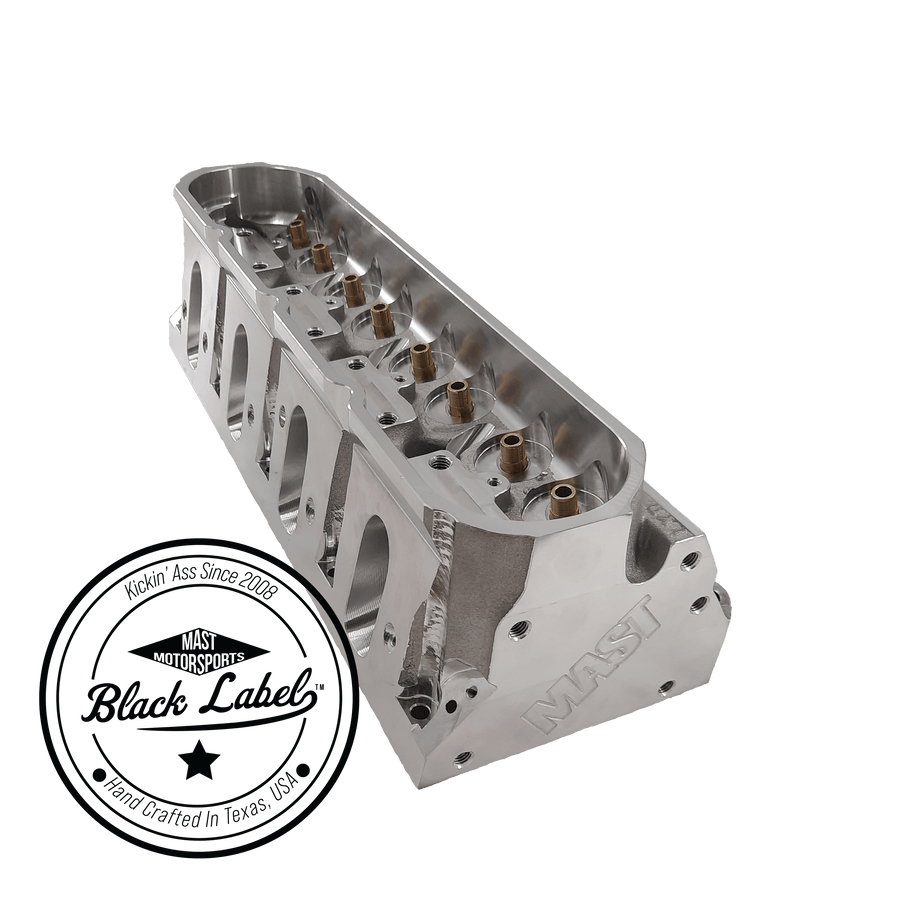

Cathedral Port 295cc 4.125" (+) Bore - Pair Black Label CNC Cylinder Head - Stainless Steel or Titanium Valves - Jesel Pattern - Solid Roller
Stainless Steel Valves
Titanium Intake & Stainless Steel Exhaust
Description
Description
The Mast Motorsports cylinder head product line is completely manufactured from a raw casting to a finished cylinder head in the USA located in Nacogdoches Texas.
Mast refuses to compromise on materials and methods that may jeopardize longevity, performance, and quality. When buying Mast Cylinder heads, you are getting the highest level of quality and performance on the market.
Full Send, no compromises, no shortcuts, ever.
Dimensional Specs
Bore Size: 4.125" (+)
Weight: 27.5 lbs.
Intake Valve Size: 2.250"
Exhaust Valve Size: 1.600"
Valve Stem Diameter: 5/16"
Valve Length: 5.550"
Valve Angle: 12°
Valve Spring Pocket Diameter: 1.65"
Valve Spring Install Height: 1.900" (+)
Head Stud Size: .493"
Valve Guide OD: .502"
Valve Job Type: Newen CNC 5 Angle
Air Flow & Performance Criteria
Intake Max. Flow: 405 CFM @ 0.700"
Exhaust Max. Flow: 248 CFM @ 0.700"
Intake Average Flow: 264 CFM
Exhaust Average Flow: 176 CFM
Intake Seat Material: Ductile Iron
Intake Port Volume: 295cc
Exhaust Port Volume: 106cc

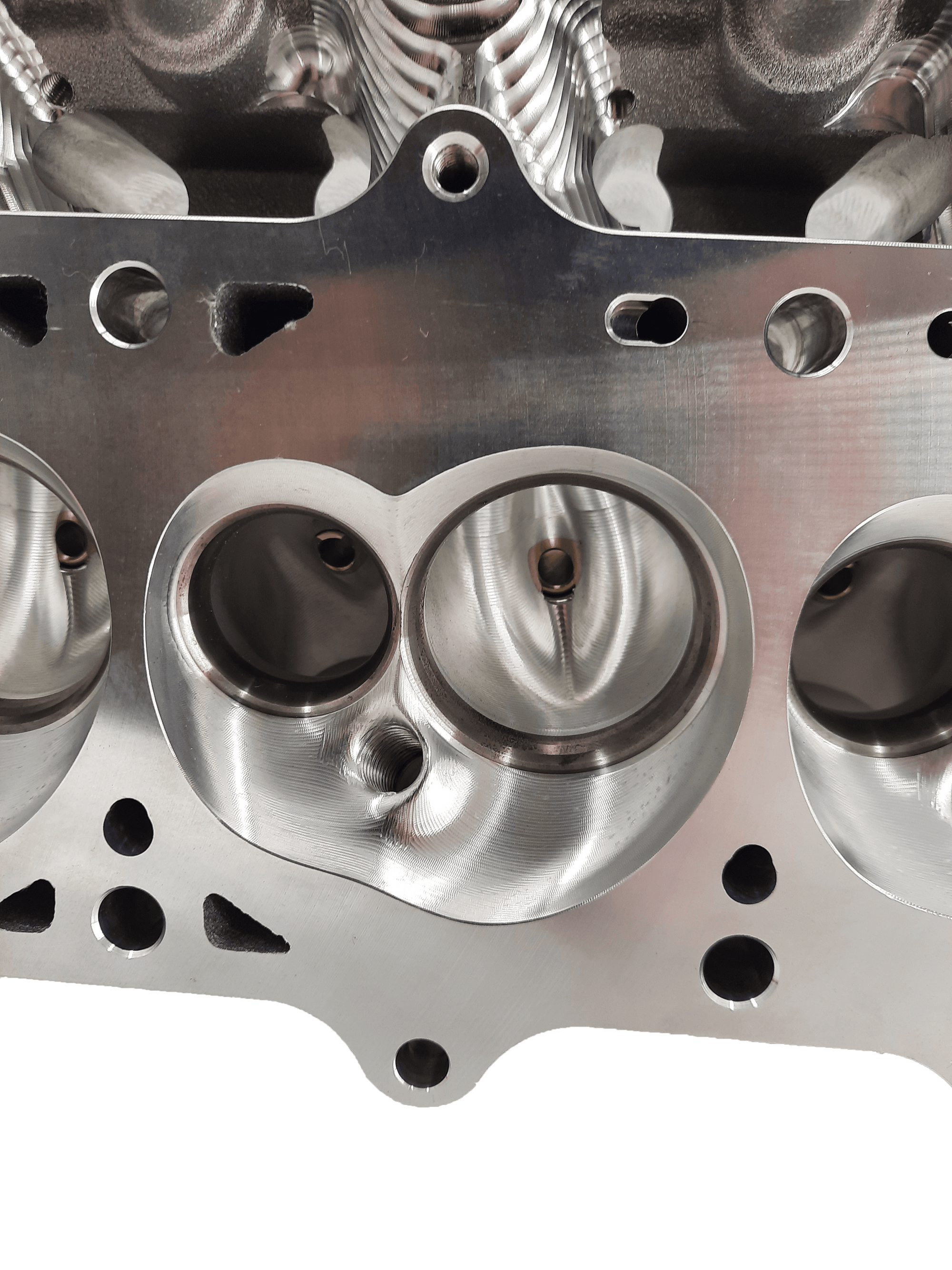

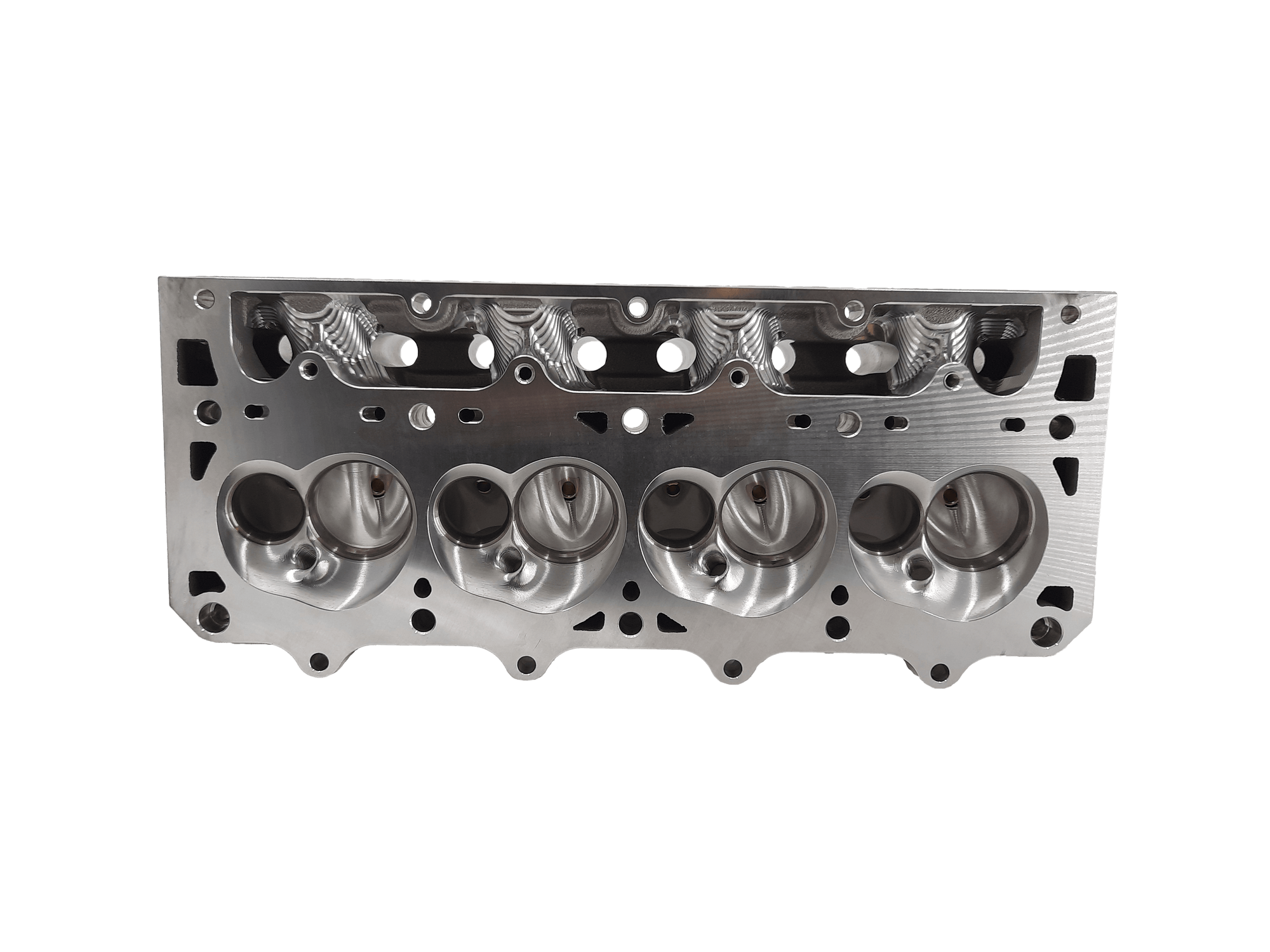

Standard Chamber Volume: 70cc
Port Type: CNC
Materials
Cylinder Head Material: A356-T6 Aluminum
Intake Valve Seat Material: Ductile Iron
Exhaust Valve Seat Material: Ductile Iron
Deck Thickness: .750"

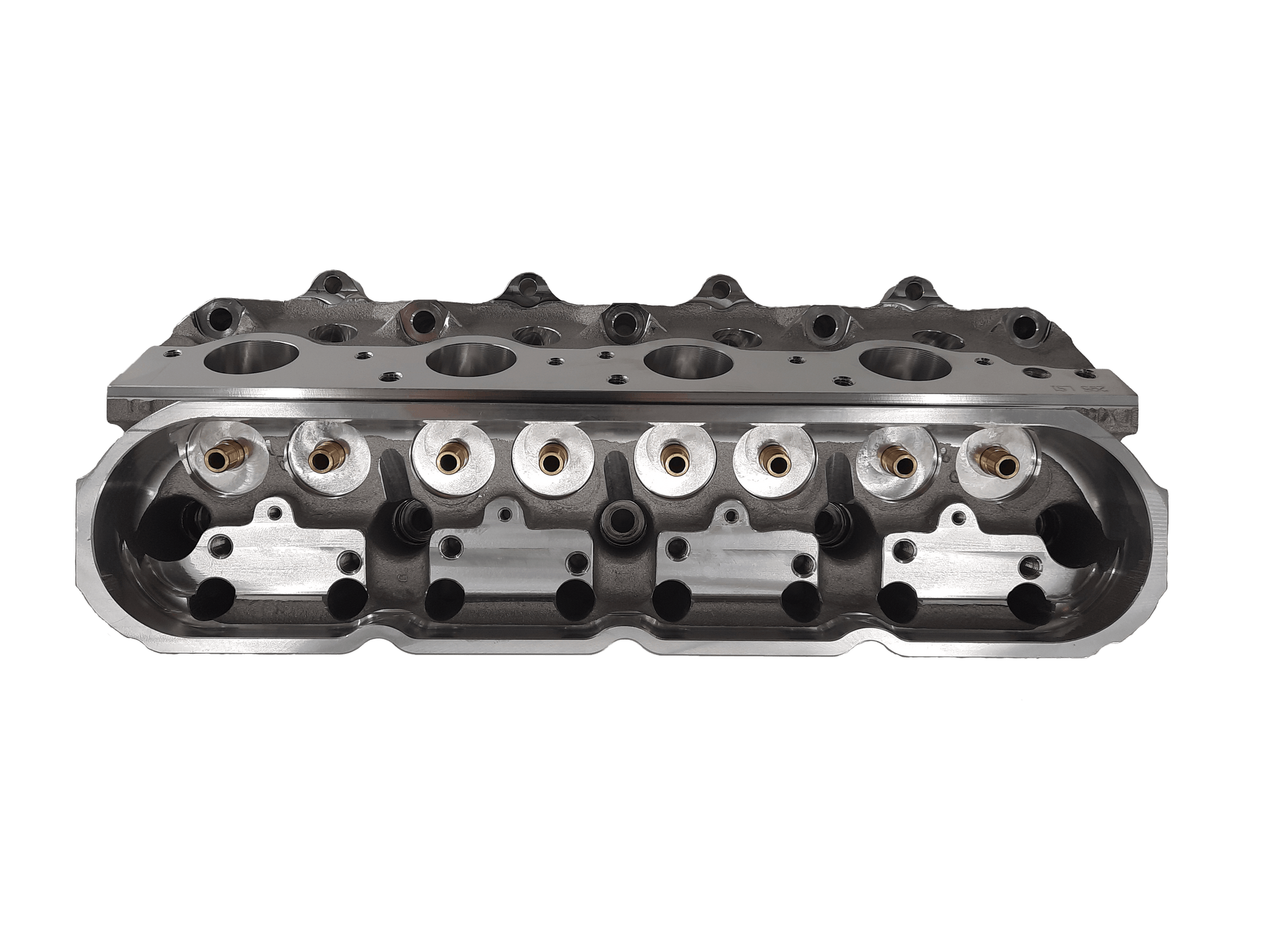

Rocker Stand Type: Jesel
Rocker Arm Type: Jesel Rocker Arms
Guide Material: Phosphor Bronze
General
Rocker Stand Type: Jesel
Rocker Stands Included: No
Rocker Stand Dowels Included: No
Uses Stock Rocker Bolts: No
Rocker Bolts Included: No
Rocker Arm Type: Jesel Rocker Arms
Head Bolt QTY: 6 Bolt Style
Valve Cover Rail Height: + ½ inch
Can use OE Valve Cover: Yes
Custom Options Available
Chamber Softening
Custom Chamber Sizing
½ inch head stud clearance
Copper Exhaust & Intake Valve Seats
